DIP 3 Color RGB LED Module

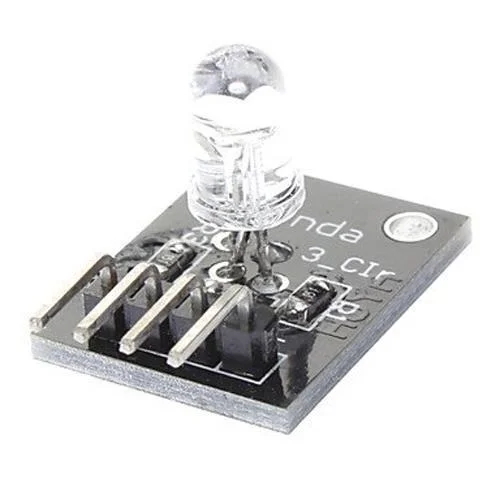

DIP 3 Color RGB LED Module consists of a 5mm RGB LED and three 150Ω limiting resistors to prevent burnout. Adjusting the PWM signal on each colour pin will result in different colours.

This is a DIP 3 Color LED Module. Through the PWM adjusting, three primary colours can be mixed to obtain different colours.

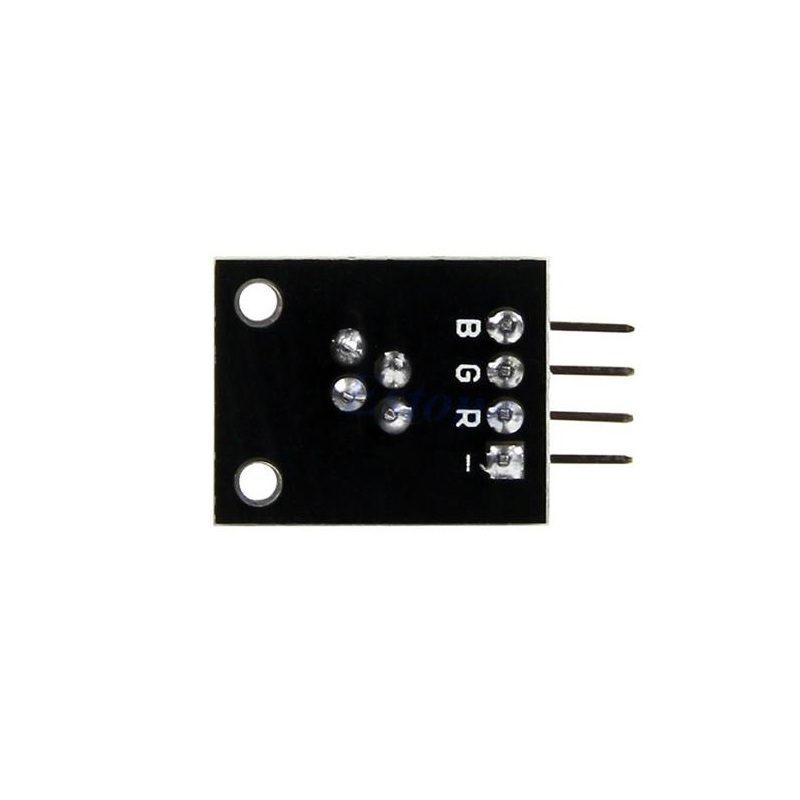

Connect the red pin (R) on the KY-016 to pin 11 on the Arduino. Blue (B) to pin 10, green (G) to pin 9 and ground (-) to GND. Notice that you do not need to use limiting resistors since they are already included on the board.

Features :

• The use of plug-in full-colour LED.
• RGB trichromatic limiting resistor to prevent burnout.
• With a variety of single-chip interface.
• Through the PWM adjusting, three primary colours can be mixed to obtain different colours
• The working voltage: 5V

Specifications:

• Operating Voltage (VDC): 5
• LED Type and Size: RGB 5 mm
• LED drive mode: Common Cathode Driver
• PCB Width: 1.5mm
• Length (mm): 20
• Width (mm): 15
• Height (mm): 15
• Weight (gm): 5

Package Includes :

• 1 x DIP 3 Color LED Module.
