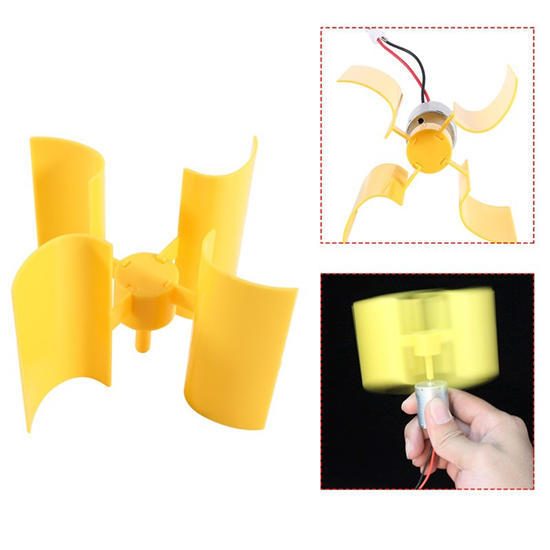

DIY Mini Wind Turbine Blade Vertical Axis Micro Generator Blades Small Set

This DIY Mini Wind Turbine Blade Vertical Axis Micro Generator Blades Small Set can work no matter from which direction the wind comes. Compared with traditional horizontal wind generator, the vertical generator can work with light wind, but it may generate little less amount of electricity when there is strong wind.

Features:

• Small and very good for demonstration.
• Good teaching tool of wind power generating.
• Can also be used to make science model.
• Can work no matter from which direction the wind comes.
• Can work with light wind.

Specifications:

• Turbine Color: Yellow
• Rated Power: 0.55 W
• Output Voltage: 5.5 V
• Output current: 0.01 – 100mA
• Rated speed: 100 – 6000 rev/min

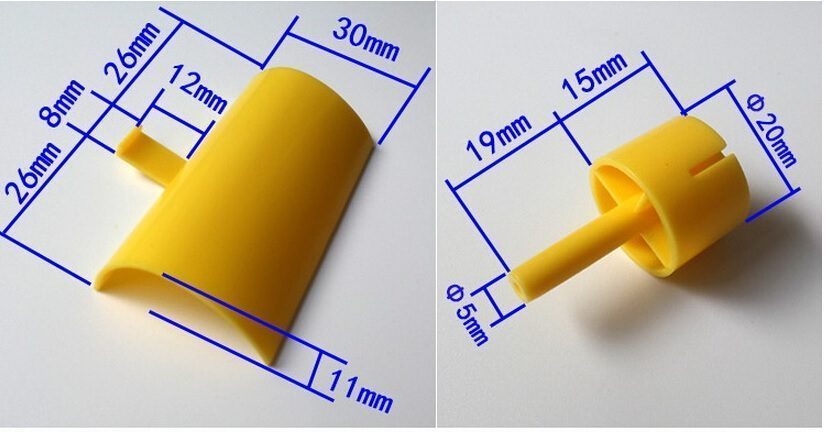

• Diameter of Fan(installed): 100mm
• Quantity of Vane: 4
• Rated Wind Speed: 5.5 m/s

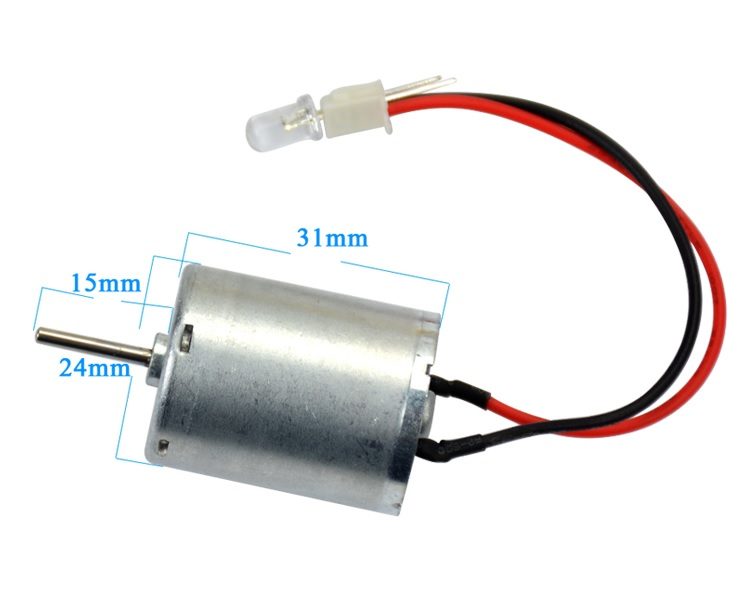

• Motor diameter: 24.5mm
• Motor height: 34.2mm
• Motor shaft diameter: 2mm
• Motor shaft length: 13.5mm
• Blade Aperture: 1.95mm
• Weight: 60g

Package includes :

• 1 x Motor With LED light.
• 4 x Vertical Blade.
• 1 x Blade Mounting Head.
