Double Sided Touch Switch Sensor Module Touch Pad 4P/3P Interface

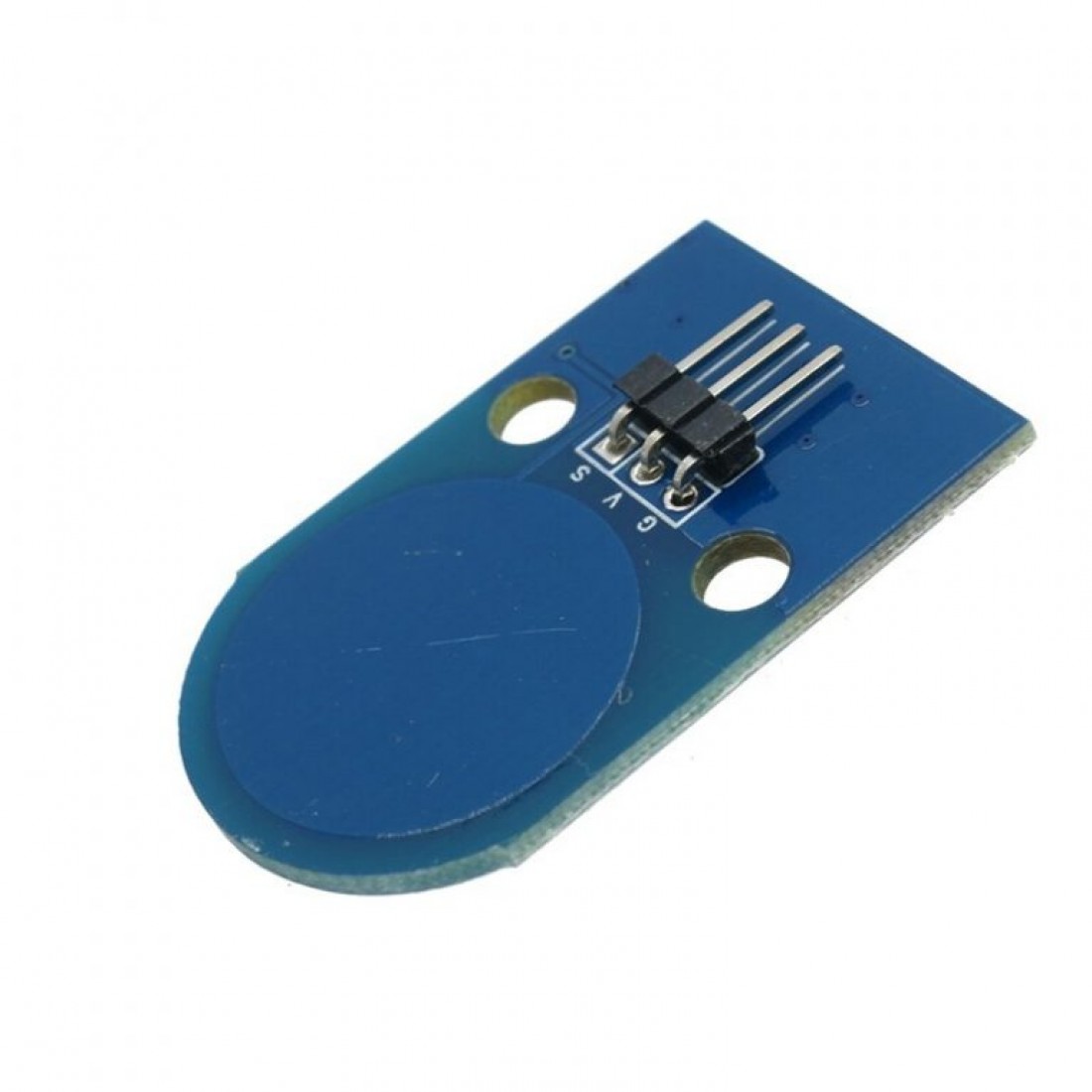

Double Sided Touch Switch Sensor Module Touch Pad 4P/3P Interface is a touch sensor module having touchpad on both sides. This module is best for touchpad requirements on both side of application.

Features:

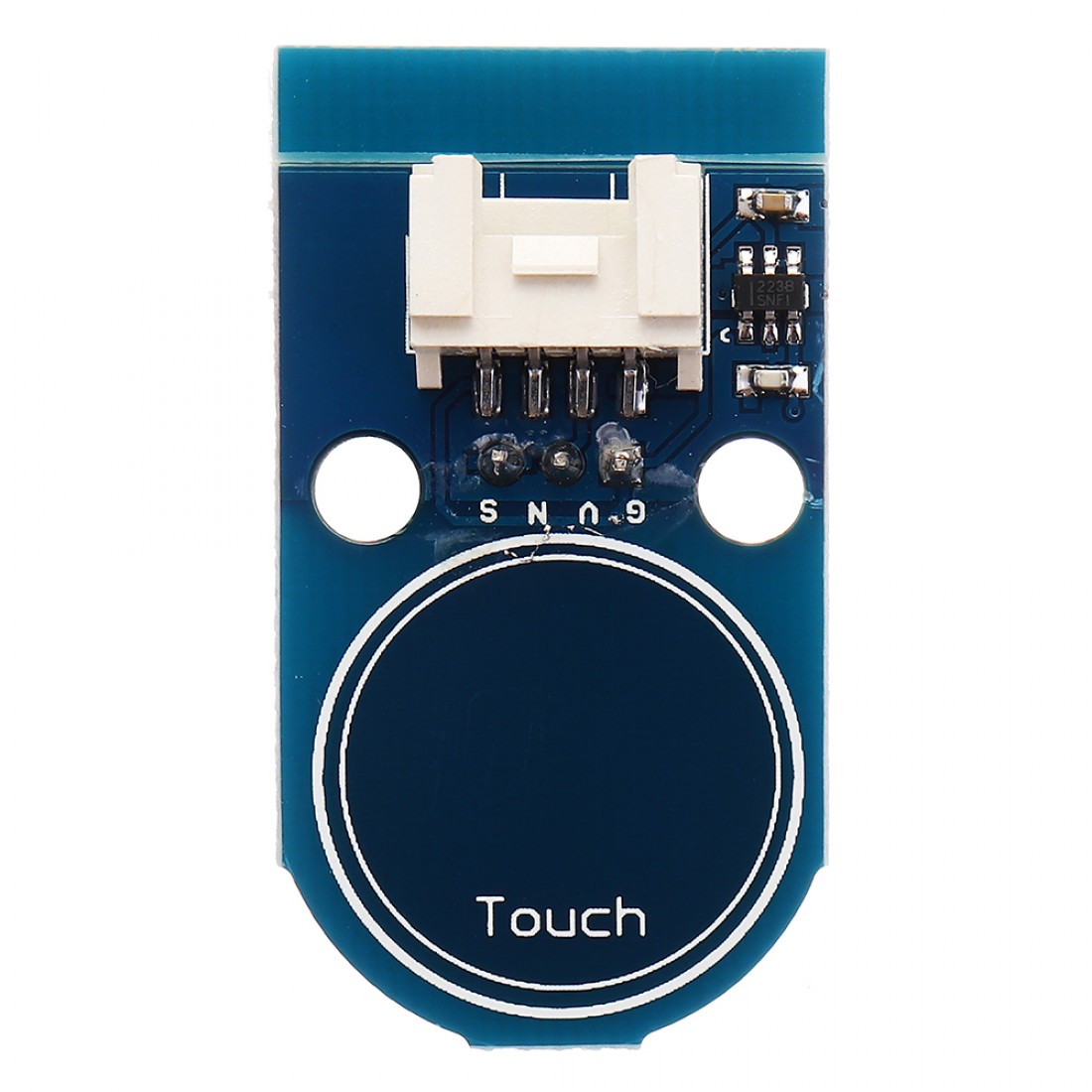

Compatible interfaces: 2.54mm 3-pin interface and 4-pin Grove interface
Note: S for voltage digital output port, N for not using a pin, V and G for voltage at the common collector and ground respectively. When there is no operation, the digital output is VDD, when the button is pressed down, the digital output is 0V.

Specifications:

Input Supply voltage (VDC)	3.3 ~ 5
Working current (VCC=5V) (μA)	18
Length (mm)	38.3
Width (mm)	24
Height (mm)	8.5
Weight (gm)	3

Package Includes:

1 x Touch switch sensor module Double-sided TouchPad 4p/3p interface.
