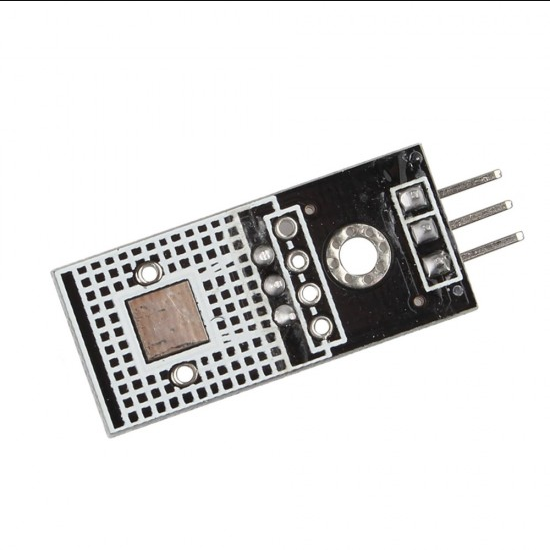

DS18B20 Temperature Sensor Module

DS18B20 Temperature Sensor Module is a Digital temperature sensor DS18B20 that will tell you temperature with 9 to 12-bit resolution! Uses only 1 wire to the Arduino or other micro-controller for communication. With the One Wire protocol, you can operate a large number of these sensors from one Arduino pin.

This is the latest DS18B20 1-Wire digital temperature sensor from Maxim IC. Reports °C with 9 to 12-bit precision, -55°C to 125°C (+/-0.5°C). Each sensor has a unique 64-Bit Serial number etched into it allows for a huge number of sensors to be used on one data bus.

This is a wonderful part that is the cornerstone of many data-logging and temperature control projects.

Features :

• Unique 1-Wire interface requires only one port pin for communication
• Each device has a unique 64-bit serial code stored in an onboard ROM
• Multidrop capability simplifies distributed temperature sensing applications
• Requires no external components
• Thermometer resolution is user-selectable from 9 to 12 bits
• Converts temperature to the 12-bit digital word in 750ms (max.)
• User-definable nonvolatile (NV) alarm settings
• Alarm search command identifies and addresses devices whose temperature is outside of programmed limits (temperature alarm condition)
• Board DS18B20 chip DS18B20 chip left 3P round hole seat is easily accessible at the same time
• Chip pin all leads, built-in pull-up resistor
• On-board power indicator

Specifications:

Applications

• Thermostatic controls, industrial systems, consumer products, thermometers, or any thermally sensitive system

Package Includes :

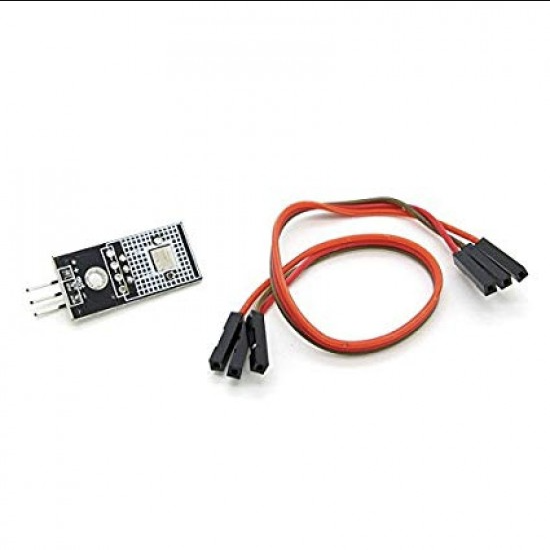

• 1 x DS18B20 Temperature Sensor Module For Arduino
