DSO150 Assembled Shell Digital Oscilloscope of Electronic Teaching Practice DIY STM32 Suite (Upgraded Version of DSO138)

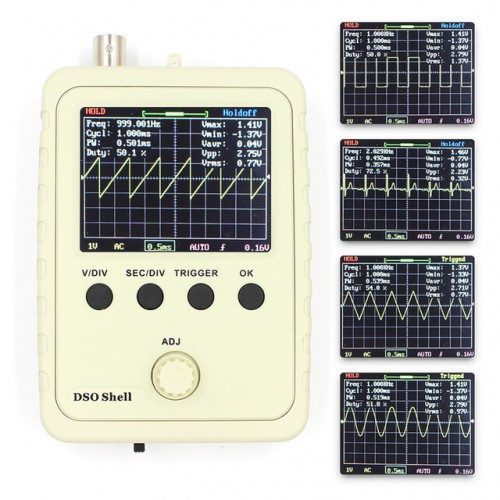

DSO150 Assembled Shell Digital Oscilloscope of Electronic Teaching Practice DIY STM32 Suite (Upgraded Version of DSO138) Fully Assembled is a pocket size digital oscilloscope with nice plastic housing. It can be used for basic waveform visualization and debugging. This item is fully assembled DSO150 with ready to use out of the box. It requires a 9V power supply through a standard DC jack. A 9V battery with DC jack connector or a wall DC adapter could be used to power up this device.

DSO Shell (DSO150) has similar bandwidth as the popular DSO138 kit, but has had significant improvements made to the design, assembly, and operation.

One major difference is the DSO Shell comes with a full molded plastic enclosure. The panels are flexible for easy user installation and modification. A rotary encoder has also been added to make parameter adjustment quick and painless.

The sensitivity of DSO Shell has been improved over DSO138. DSO Shell is capable of 5mV/div through 20V/div. Aside from a few through-hole components, the mainboard is fully assembled. It is factory-tested before shipment to ensure your kit will function as expected.

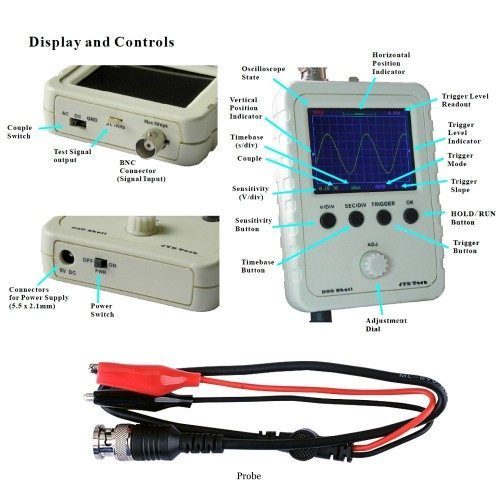

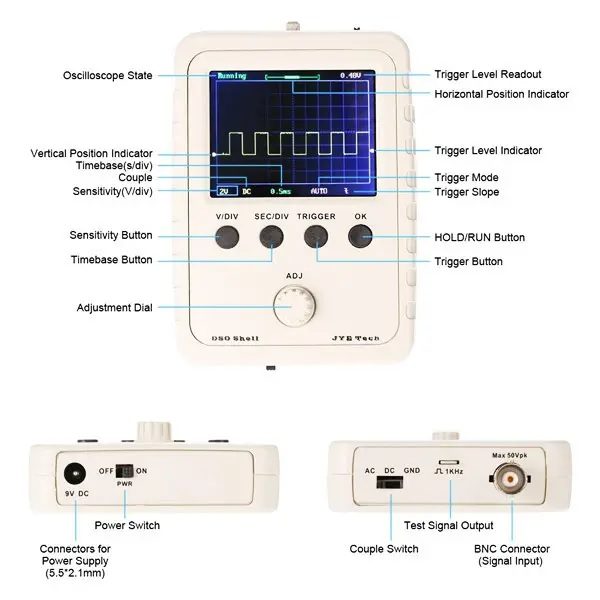

Features :

• 2.4-inch color TFT LCD with 320 x 240 resolution
• Display and MCU are now mounted on the same board
• DSO Shell comes with full enclosure
• Rotary encoder has been added. It makes parameter adjustment much quicker and easier.
• The sensitivity of DSO Shell has been extended in both directions and is higher and wider than DSO138.
• DSO Shell runs on 9V power supply

Specifications:

• Model: DSO150
• Number of channels: 1
• Analog bandwidth: 0 – 200KHz
• Sensitivity: 5mV/Div – 20V/Div
• Sensitivity error: < 5%
• Resolution: 12-bit
• Input Impedance: 1M ohm
• Maximum input voltage: 50Vpk
• Coupling: DC, AC, GND
• Max real-time sampling rate: 1Msps
• Time base: 10us/Div – 500s/Div
• Record length: 1024
• Trigger modes: Auto, Normal, Single
• Trigger types: Rising/falling edge
• Trigger position: 1/2 of buffer size fixed
• Power supply: 9V DC
• Supply current: 120mA @ 9V
• Dimension: 115mm x 75mm x 22mm
• Weight: 100 gram

Package Includes :

• 1 x DSO150 Assembled Shell Digital Oscilloscope Suite

Note : 9V DC input power is required. DO NOT EXCEED 10V! If using a power supply, test the actual output before powering your scope. It will permanently damage your oscilloscope!
