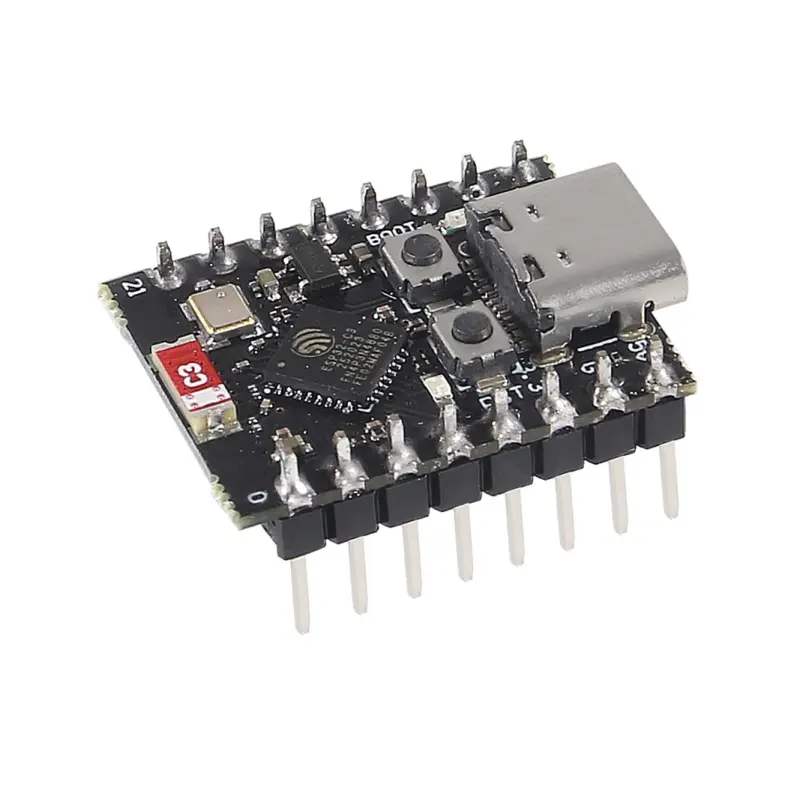

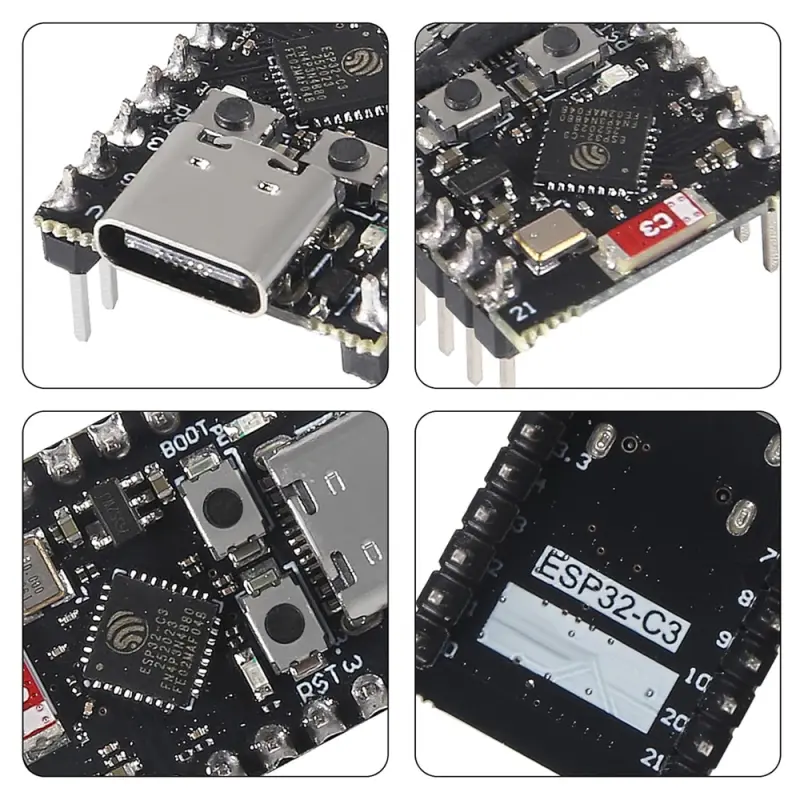

ESP32-C3 Super Mini Development Board Soldered Headers

The ESP32-C3 Super Mini Development Board is a compact and powerful development board based on the ESP32-C3 RISC-V microcontroller, featuring integrated Wi-Fi (802.11 b/g/n) and Bluetooth 5 (BLE) connectivity for robust and secure IoT applications.

ESP32-C3 Super Mini Development Board comes with its ultra-small, breadboard-friendly design and USB Type-C interface, this board is ideal for rapid prototyping, embedded projects, and wireless device control. It boasts low power consumption, a range of digital and analog I/O pins, and compatibility with Arduino IDE, ESP-IDF, and MicroPython, making it perfect for makers, students, and professionals working on smart devices, automation, and portable solutions.​

Note: Programming related issue are not cover under return/replacement and you need to troubleshoot at your end.

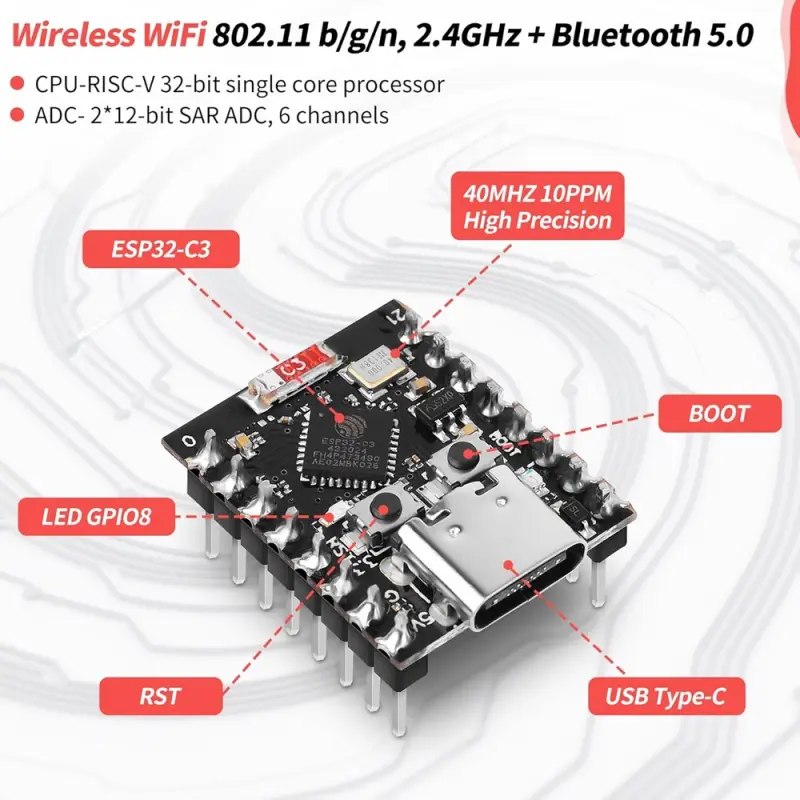

Features:

• ESP32-C3 single-core 32-bit RISC-V processor, up to 160 MHz.​
• Integrated IEEE 802.11 b/g/n Wi-Fi and Bluetooth 5.0 Low Energy (BLE) connectivity.​
• Ultra-compact, breadboard-friendly Super Mini form factor.​
• Multiple digital I/O and analog input pins, PWM, ADC, UART, SPI, I2C support.​
• 4 MB onboard flash memory and 400 KB SRAM.​
• USB Type-C interface for easy power and programming.​
• Low power consumption with deep sleep support, ideal for battery-powered applications.​
• User-controllable onboard LED.​
• Compatible with Arduino IDE, PlatformIO, ESP-IDF, and MicroPython.​
• Integrated USB-to-serial converter for seamless uploading.​
• Onboard voltage regulator, supports 3.3V—5V input.​

Specifications:

• Microcontroller: ESP32-C3, 32-bit RISC-V
• Core: Single-core, up to 160 MHz
• Flash Memory: 4 MB
• SRAM: 400 KB
• Wi-Fi: IEEE 802.11 b/g/n, 2.4 GHz
• Bluetooth: BLE 5.0
• Operating Voltage: 3.3V
• Input Voltage: 3.3V, 5V (via USB-C)

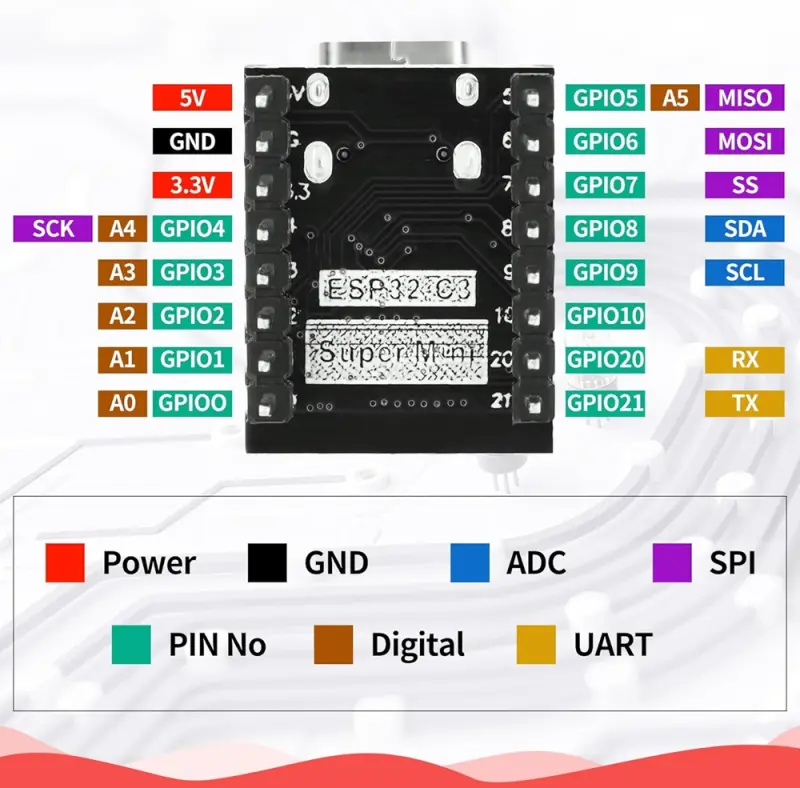

• GPIO: Multiple digital I/O, PWM, ADC
• Analog Inputs: Up to 6

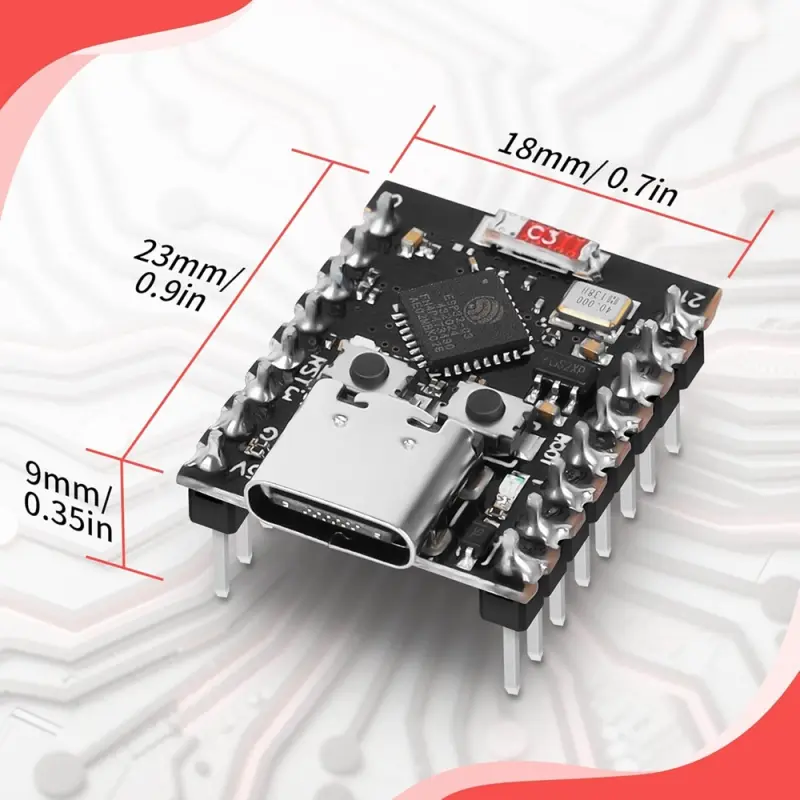

• Dimensions: Approx. 22.5 mm x 18 mm
• USB Interface: Type-C
• Package: Soldered headers
• Power Consumption: Ultra-low (deep sleep: ~43μA)
• Onboard LED: User programmable (GPIO8)

Application:

• IoT (Internet of Things) devices and sensor nodes
• Smart home automation systems
• Wearable technology and fitness trackers
• Wireless controllers and BLE devices
• Educational robotics and embedded system learning
• Prototyping and rapid product development for makers and engineers.​

Package Includes:

• 1 x ESP32-C3 Super Mini Development Board with Soldered Headers.
