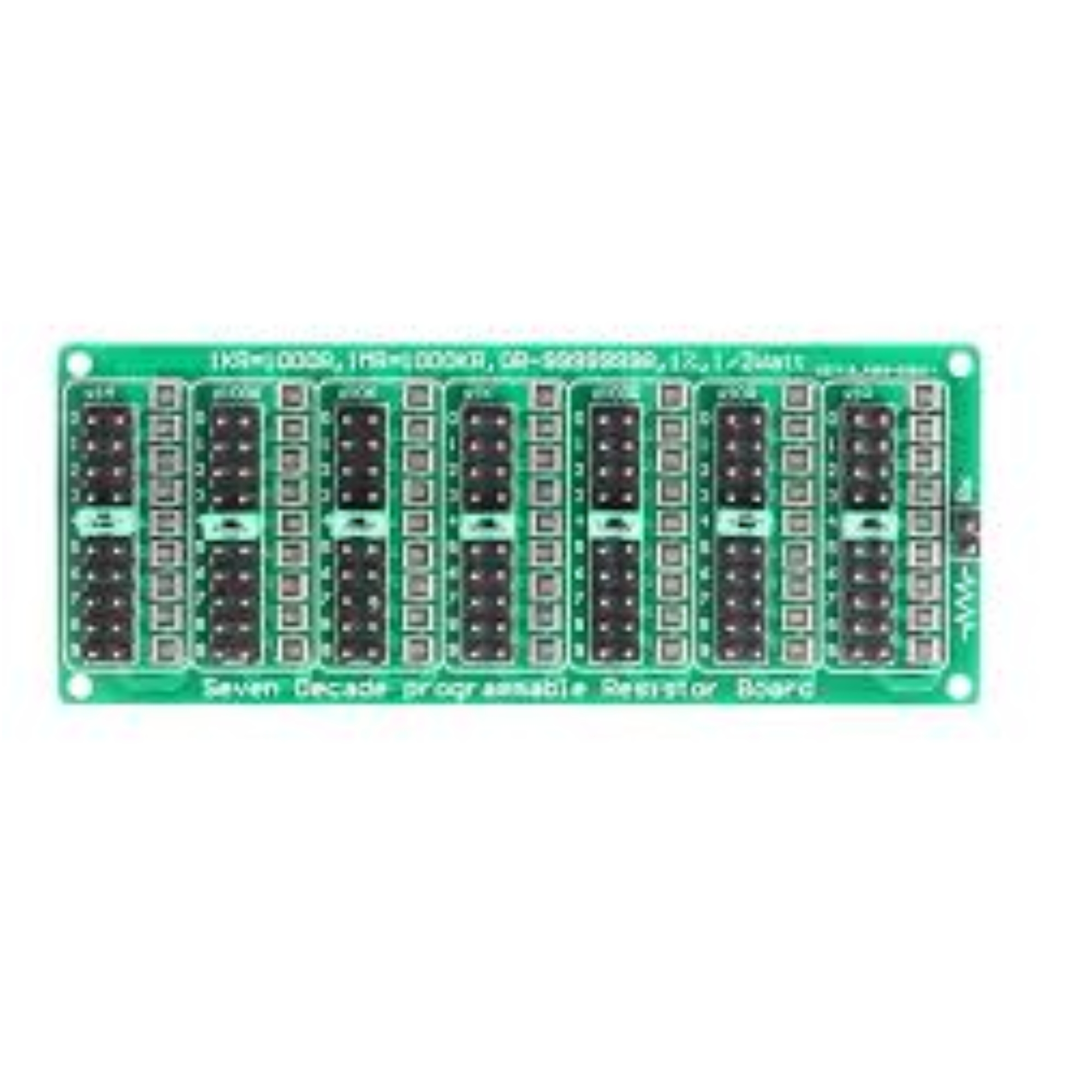

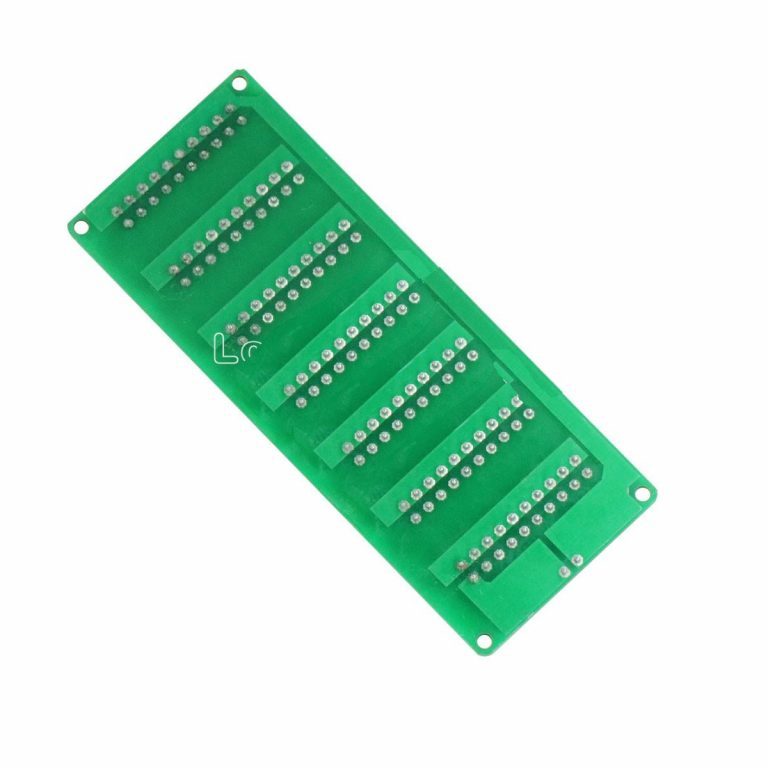

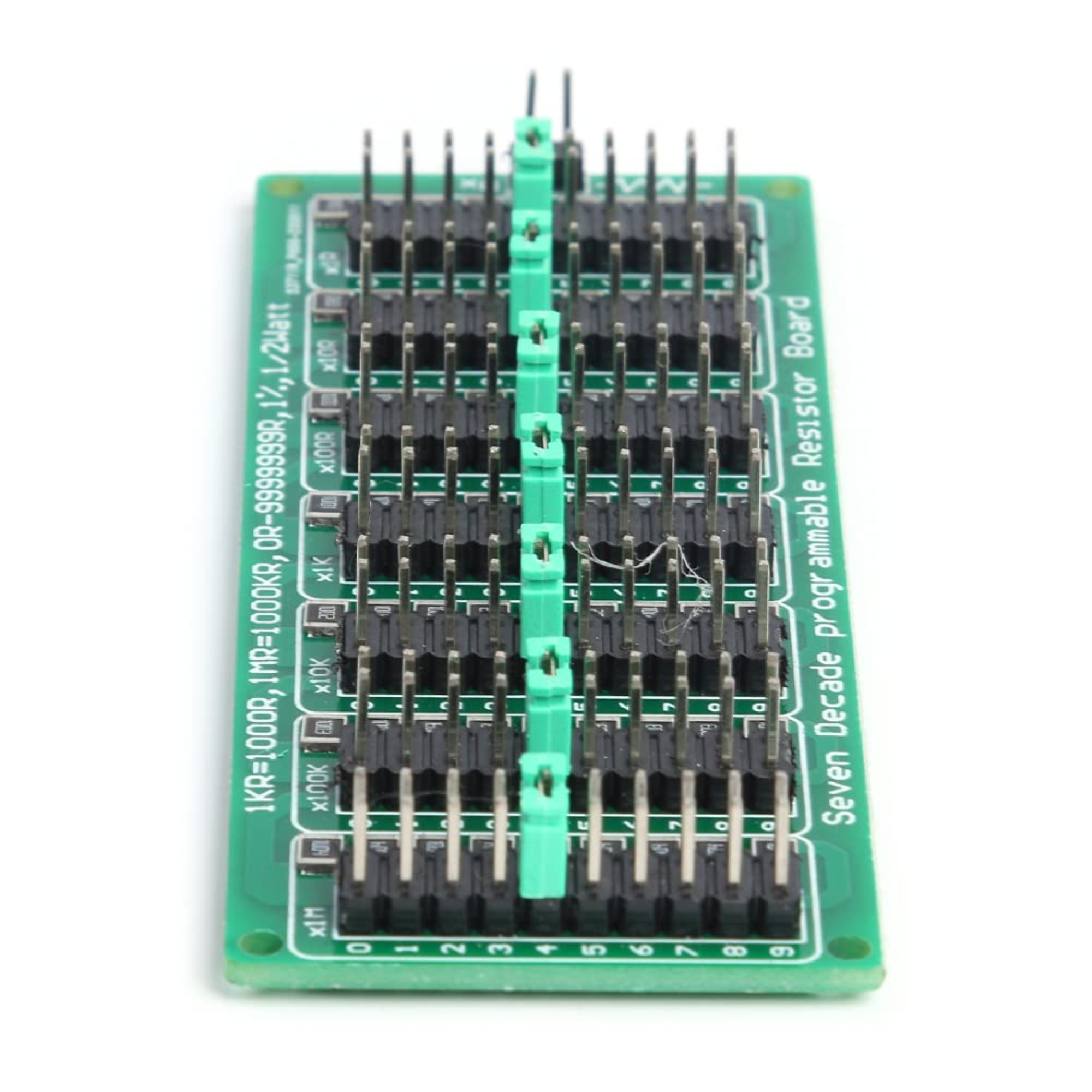

Green 7 Decade 1R – 9999999R Programmable Resistor Resistance Board Module

Green 7 Decade 1R – 9999999R Programmable Resistor Resistance Board Module is a 1R SMD Resistance Module “resistance substitution box” good low-cost alternative solution, can flexible and quick setting resistance range from 1R to 9999999R, step accuracy 1R. for educational experiments, electronic engineering design or test trimming are excellent applications.

Features:

• Design based on the “resistors series” theorem.
• 1/2 watt tolerance +/-1% SMD resistors.
• Screw terminal blocks easy to connect wires.
• High-quality FR4 glass fiber PCB.
• With spare parts 10 pieces jumper caps (onboard 7 pieces, total 10 pieces).

Specifications:

• Programmable Resistance: 0 to 9,999,999 ohm, 1 ohm per step
• Resistance Tolerance: +/-1%
• Rated Power (W): 1/2 Watt
• Maximum Working Voltage (V): 200
• Length (mm): 110
• Width (mm): 42
• Height (mm): 8
• Weight (gm): 20

Package Includes:

• 1 x Green 7 Decade 1R – 9999999R Programmable Resistor Resistance Board Module
