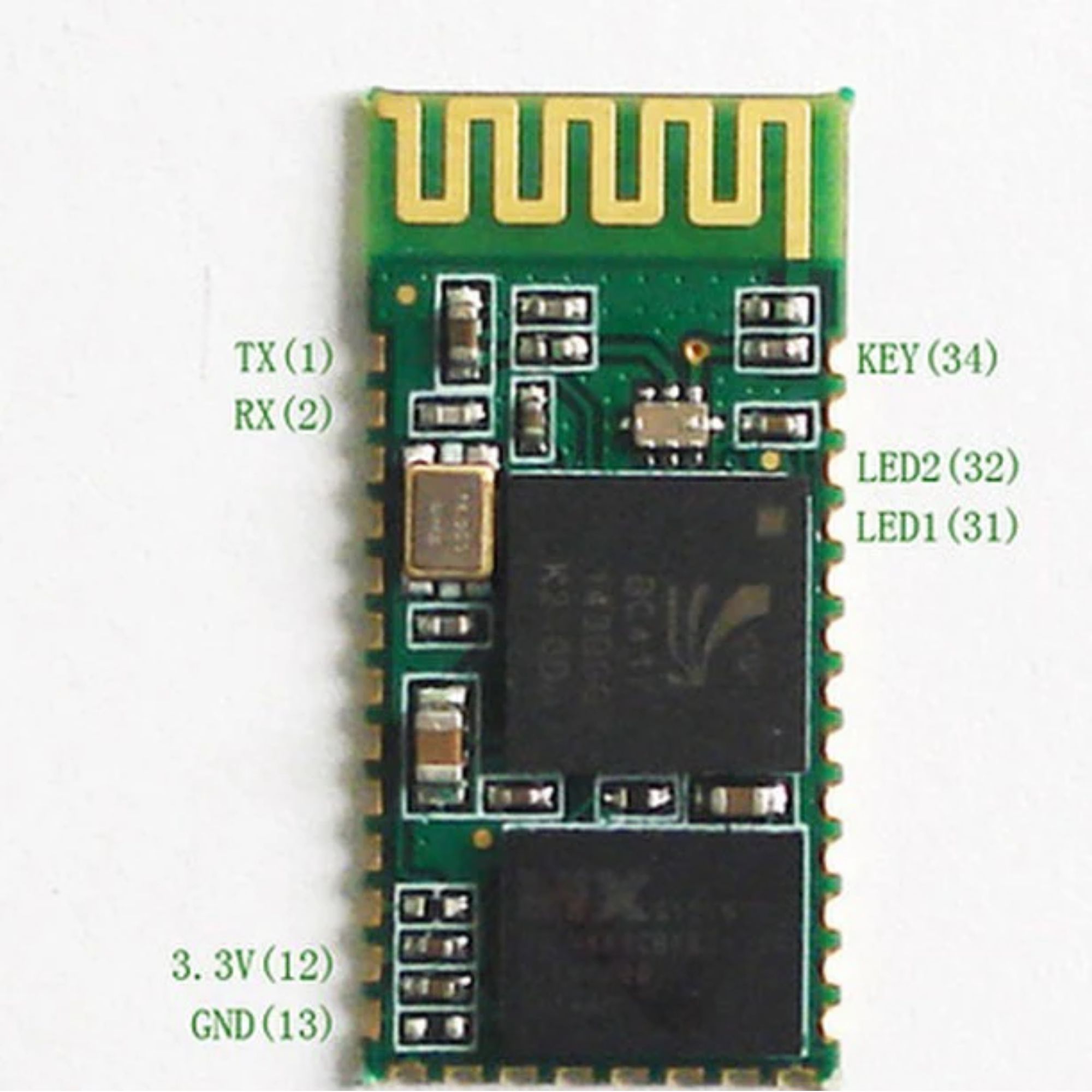

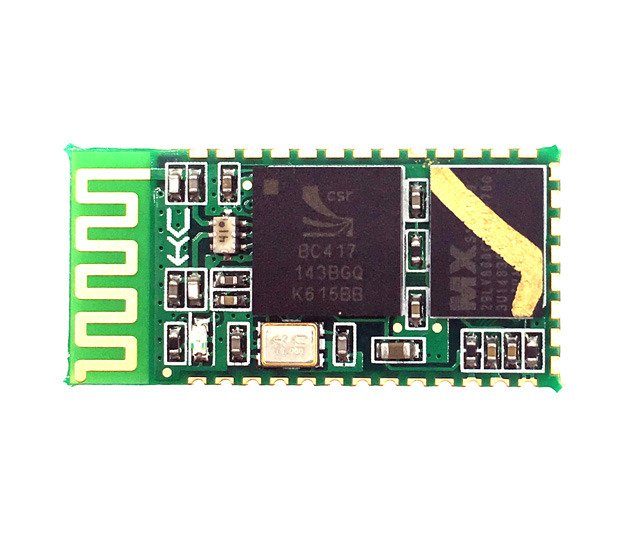

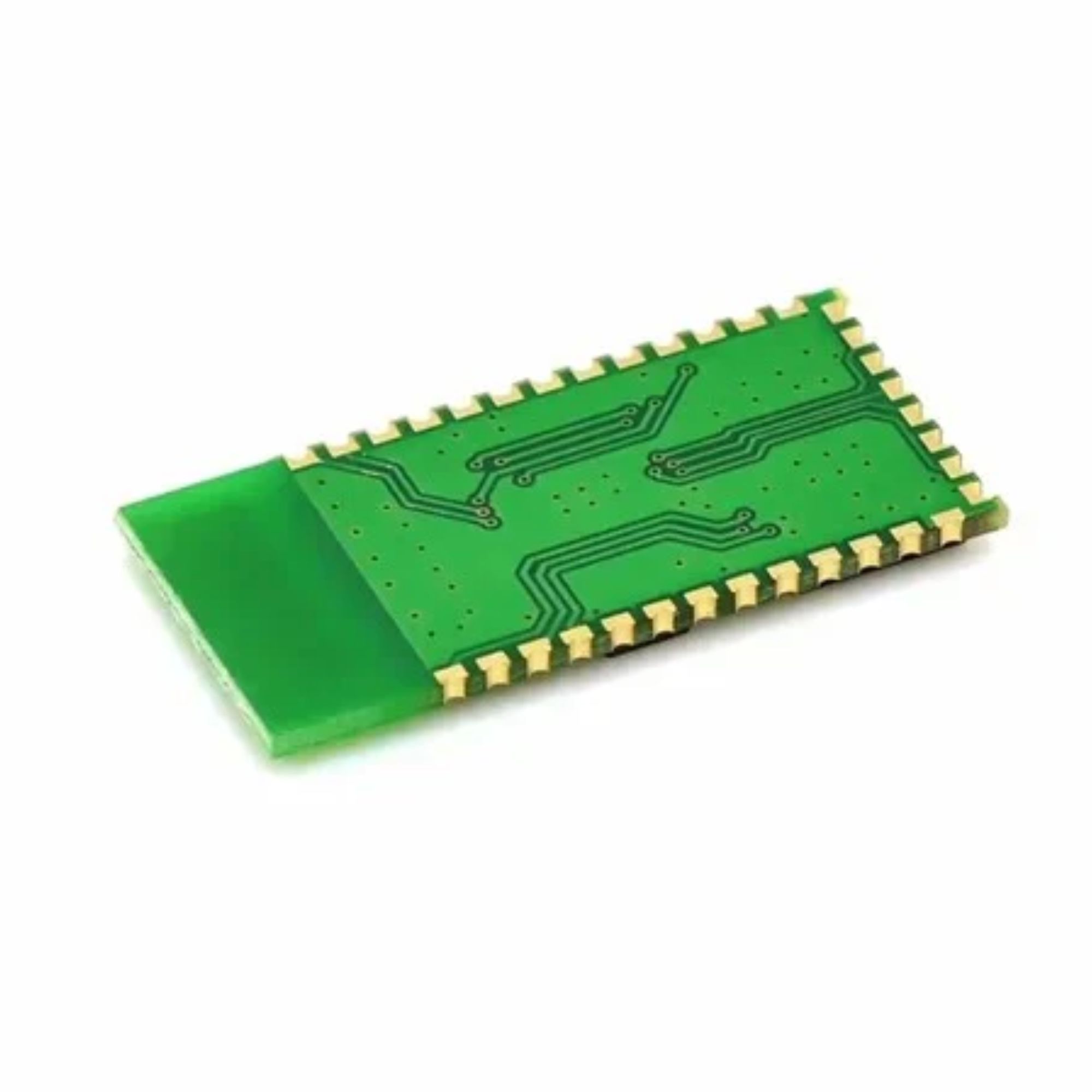

HC-05 Wireless Bluetooth Module without Base Plate

HC-05 Wireless Bluetooth Module without Base Plate is a class-2 Bluetooth module with Serial Port Profile, which can configure as either Master or slave a Drop-in replacement for wired serial connections, transparent usage. You can use it simply for a serial port replacement to establish connection between MCU, PC to your embedded project and etc.

HC-05 6 Pin Wireless Serial Bluetooth Module is a Bluetooth module for use with any micro-controller.  It uses the UART protocol to make it easy to send and receive data wirelessly.

The HC-05 Wireless Bluetooth Module is a slave only device.  This means that it can connect to most phones and computers with Bluetooth but it cannot connect to another slave-only device such as keyboards and other HC-06 modules.  To connect with other slave devices a master module would be necessary such as the HC-05 version which can do both master and slave.

Features:

• Working current: matching for 30 mA, matching the communication for 8 mA.
• Dormancy current: no dormancy.
• Used for a GPS navigation system, water, and electricity gas meter reading system.
• With the computer and Bluetooth adapter, PDA, seamless connection equipment.
• Bluetooth module HC-08 Master and slave Two in one module.
• Use the CSR mainstream Bluetooth chip, Bluetooth V2.0 protocol standards.
• Potter default rate of 9600, the user can be set up.
• Bluetooth protocol: Bluetooth Specification v2.0+EDR
• Speed: Asynchronous: 2.1Mbps(Max) / 160 kbps, Synchronous: 1Mbps/1Mbps.
• Security: Authentication and encryption.
• Profiles: Bluetooth serial port.

Specifications:

• Input Supply voltage (V): 3.6 ~ 6
• Input current (mA): 50
• Maximum Operating Range (m): 10
• Operating Frequency: 2.4GHz ISM band
• Modulation: GFSK (Gaussian Frequency Shift Keying)
• Emission power: 4dBm, Class 2
• Sensitivity: -84dBm at 0.1% BER
• Operating Temperature (℃): -20 ~ +75
• Length (mm): 26.85
• Width (mm): 13.13
• Height (mm): 1.9
• Weight (gm): 2

Applications:

• Embedded Projects.
• Industrial Applications.
• Computer and Portable Devices.
• GPS receiver.

Package Includes:

• 1 x HC-05 Wireless Bluetooth Module HC05
