Hi-Link AC-DC Power Module HLK-5M12 230V to 12V/5W

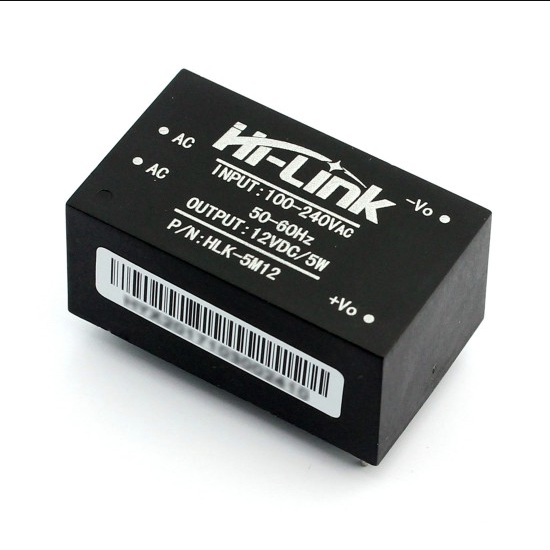

Hi-Link AC-DC Power Module HLK -5M12 230V to 12V/5W SMPS Module (Hi-Link) is PCB mounted plastic enclosed isolated switching step-down power supply module. It can supply 12V DC from 120V AC - 230V AC and has a power rating of 5 Watt. This makes it perfect for small projects that needs a 12V supply from Mains.

Features:

• Meet UL, CE requirements,
• Ultra-thin, ultra-small
• All voltage input (AC: 90 ~ 264V)
• Low ripple and low noise
• Output overload and short circuit protection
• High efficiency, high power density
• The product is designed to meet the requirements of EMC and Safety Test
• Low power consumption, environmental protection, no-load loss <0.1W
• 100% load aging and testing

Environmental Conditions:

• Operation Temperature : -20 to +60 ℃
• Store Temperature : -40 to +80 ℃
• Relative humidity : 5 to 95 %
• Cooling way : Cooling by radiation
• Atmospheric pressure : 80 to 106 Kpa
• Sea level elevation :  ≤2000 m
• Vibration : Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes

Advantages:

There are many advantages for these module, such as low temperature rise, low power, high efficiency, high reliability, high security isolation etc. It is widely used in smart home, automation and control, communication equipment, instrumentation and other industries.

Package Includes:

• 1 x  HLK -5M12 230V to 12V/5W Switch Power Supply Module
