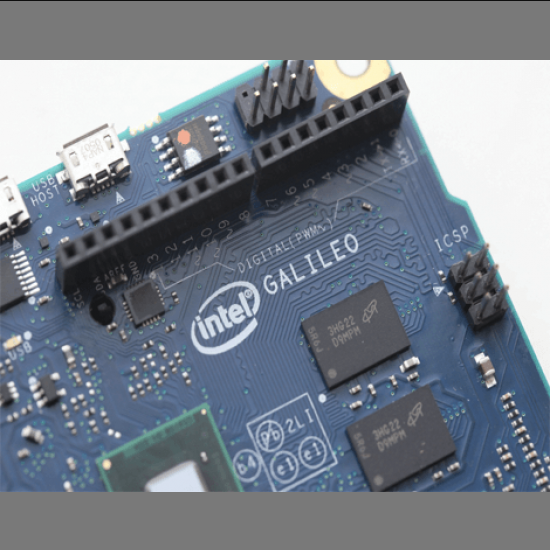

Intel Galileo Gen 2 Development Board - Arduino compatible
memory Technical Parameters & Datasheet Summary
SKU: Anil888The Intel Galileo board?is based on the Intel Quark SoCX1000, a 32-bit Intel Pentium?-class system on a chip (SoC). It is the first board based on Intel architecture designed to be hardware and software pin-compatible with shields designed for the Arduino Uno R3. Intel Galileo?is the first in a line of Arduino-certified development boards designed for the maker and education communities.
The Galileo board is also software-compatible with the Arduino Software Development Environment, which makes getting started a snap. Further In addition to Arduino hardware and software compatibility, the Galileo board has several PC industry standard I/O ports and features to expand native usage and capabilities beyond the Arduino shield ecosystem. A full sized mini-PCI Express slot, 100Mb Ethernet port, Micro-SD slot, RS-232 serial port, USB Hostport, USB Client Port, and 8 MByte NOR flash come standard on the board.
Specification:
- Intel Quark SoC X1000 Application Processor. 400MHz, 32-bit Pentiumclass
- 16 KBytes on-die L1 cache
- 512 KBytes of on-die embedded SRAM
- Simple to program: Single thread, single core, constant speed
- ACPI compatible CPU sleep states supported
- An integrated Real Time Clock (RTC), with an optional 3V coin cell battery for operation between turn on cycles.
- 256MB DDR3 DRAM
- PSoC (programmable system on chip) from Cypress, I2C-controlled I/Oexpander chip
- 10/100 mbit/s Ethernet connector
- USB 2.0 Host connector
- USB 2.0 Client connector
- 8MB Flash
- 10-pin Standard JTAG header for debugging
- I2C, SPI, UART, ICSP be supported
- There are two buttons:
- Reboot button to reboot the processor
- Reset button to reset the sketch and any attached shields
Package Includes:
- 1 x Intel Galileo Gen 2 Development Board - Arduino compatible
