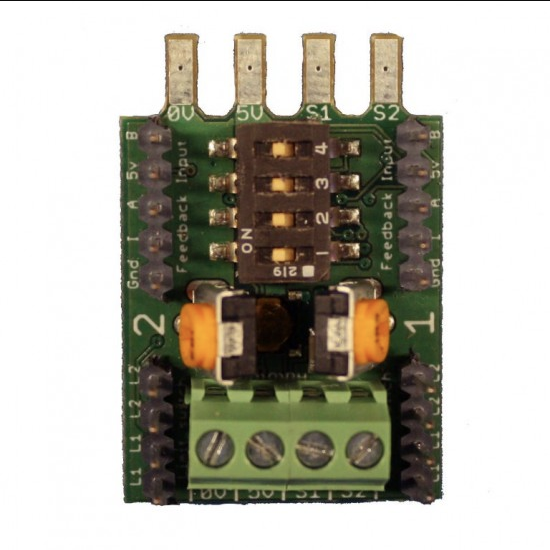

Kangaroo X2 Motion Controller

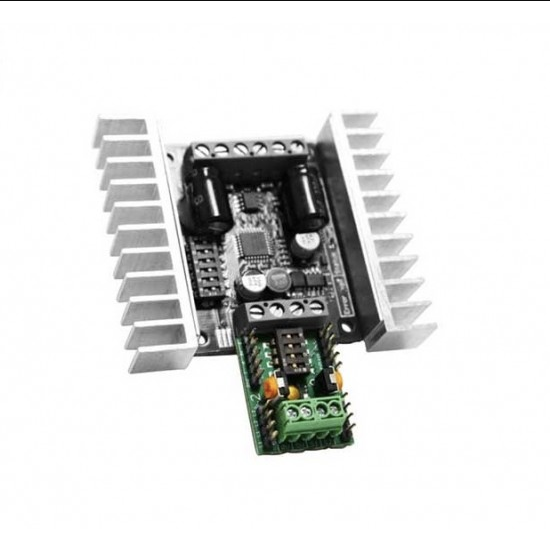

Kangaroo X2 Motion Controller adds self-tuning feedback motion control to your Sabertooth or SyRen motor driver. It can be used with quadrature encoders or potentiometers to provide position or speed control. It supports one or two feedback channels. Feedback control has always been highly desirable for mechanical systems.

Being able to tell your device to move an exact amount, at a specific speed or to a certain position, and have it reliably and repeatably do so, regardless of the load or disturbances, has obvious benefits. However, PID and other controllers have to be carefully tuned to get acceptable results. Feedback tuning is difficult, time-consuming and requires advanced math and physics knowledge.

Kangaroo x2 is the first self-tuning controller in its class. Instead of requiring you to measure, model and calculate the system, the controller itself will figure everything out after a few switch settings and button presses. In the time it takes to get a tasty snack, you can come back to a perfectly tuned system ready to accept your commands.

Instead of requiring you to use a microcontroller to do closed-loop control, Kangaroo x2 works from analog and radio control sources as well as microcontrollers and computers. You can, for example, use it to build that two horsepower R/C servo you’ve always needed as the final piece of your doomsday device. Just remember who helped when the vaporizing starts.

During operation, you can command speeds, positions or combined commands like “move to 37 inches at a speed of 4 inches per second.” You can also have the Kangaroo x2 report back speeds and positions while it is running. A mixed mode allows for unstoppable mobile robots with the differential drive or tank-style steering.

If you need to get your product under control, Kangaroo x2 is the best way to do it.

The Kangaroo is awaiting a design change to accommodate a new part, as the original part is no longer available. We cannot give a definite lead time as of right now.

Compatible with:

• Sabertooth Dual 10A MOTOR DRIVER
• Sabertooth Dual 12A MOTOR DRIVER
• Sabertooth Dual 25A MOTOR DRIVER
• Sabertooth Dual 25A V2MOTOR DRIVER
• Sabertooth Dual 32A MOTOR DRIVER
• Sabertooth Dual 50A HV MOTOR DRIVER
• Sabertooth Dual 60A MOTOR DRIVER
• SyRen 10
• SyRen 25
• SyRen 50

Features:

• 2 channel self-tuning PID controller
• Position or speed control
• Quadrature encoder feedback or potentiometer feedback
• Support for limit switches and mechanical stops
• Analog, R/C, and serial inputs

Specifications:

• Model : Kangaroo x2
• Dimensions in mm (LxWxH) : 30 x 24 x12
• Weight (gm) : 7

Package Includes :

• 1 x Kangaroo X2 Motion Controller module
• 1 x User Manual

Useful Links:

• Documentation:
• User Manual
• Kangaroo Pack-In Instructions
• Encoder Calculator
• Arduino Library Reference
• .NET (C#, VB) Library Reference
• Packet Serial Reference
• Software:
• Arduino Library
• .NET (C#, VB) Library
• DEScribe PC Software
