Ketrix 12V Electric Door Lock for Cabinet Locker Safe

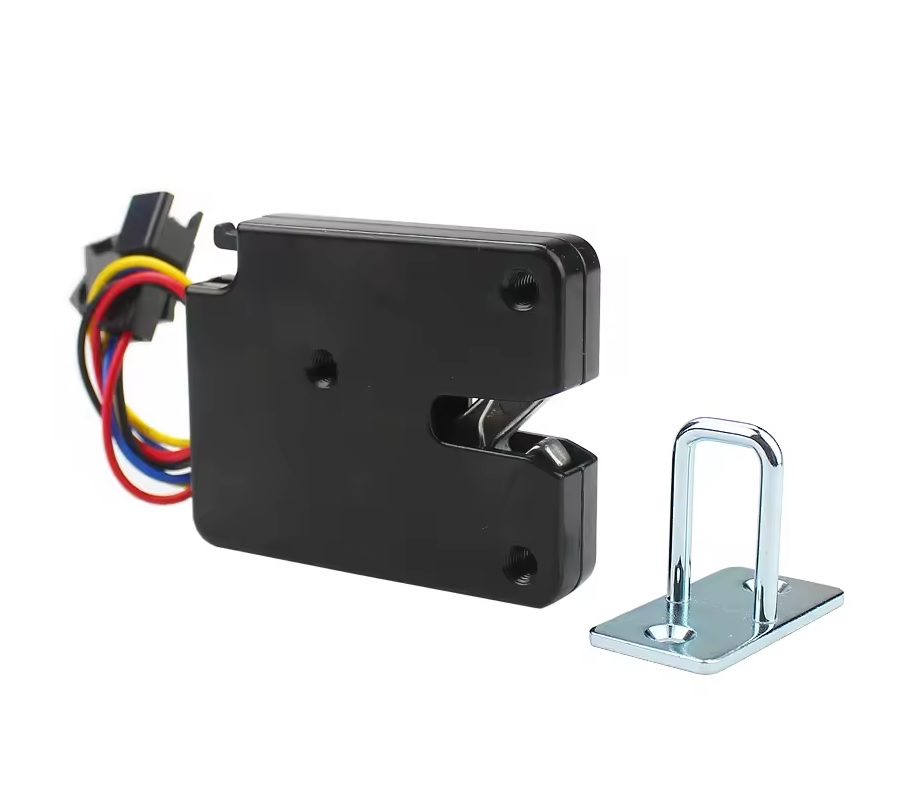

This Ketrix 12V Electric Door Lock for Cabinet Locker Safe is commonly used for access control of cabinets, drawers, lockers, and safes. This is a very simple door lock that runs on 12VDC. It includes a lock, hook, and mounting accessories. When pressed, the hook locks into the lock, and when powered by 3V, it releases, allowing users to open the door. The lock also includes a feedback signal, which is normally open. When the door is closed, the feedback signal closes, informing programmers that the lock is engaged. This feedback signal can also be used to turn off the lock when the hook is disengaged.

This lock can be connected directly to your Access Control System Controller. If you’re building your own controller with a custom PLC, Arduino, Raspberry Pi, or other microcontroller, you can use one of our compatible relays or MOSFET Modules to control the electromagnet.

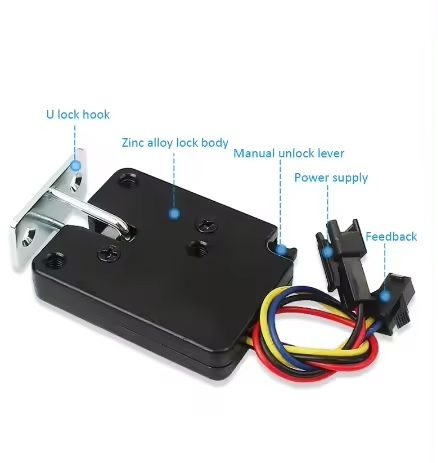

The lock uses a latch which is released by a special alloy wire. The wire contracts when powered and releases the latch to unlock the door!

Features:

• Lock and Hook can be pressed together and unlocked on powering the lock
• 2 Pin Lock Status Feedback to sense lock status
• Emergency Lock: lock body emergency unlock mode, can be used as a manual emergency unlock function
• Energy saving: Power ON unlock, time is less than 1 second, usually closed the door is not power consumption

Specifications:

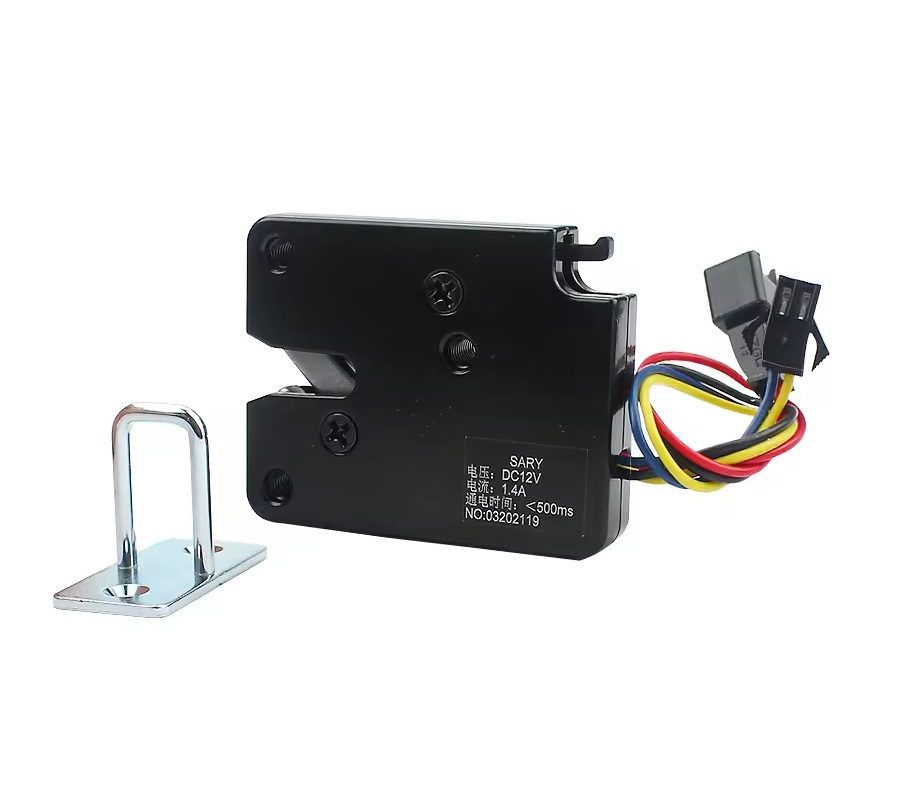

• Voltage input: 12V DC, 1.4A
• Work: closed/lock(power off), unlock(power on)
• Lock hook strength: 50kg force
• Self-elastic design: suitable for doors weighing 0.5 ~ 2kg.
• Safety: the lock hook can withstand 50kg of force, shockproof, anti-pry design
• Mechanical life: about 50,000 cycles under designed load conditions

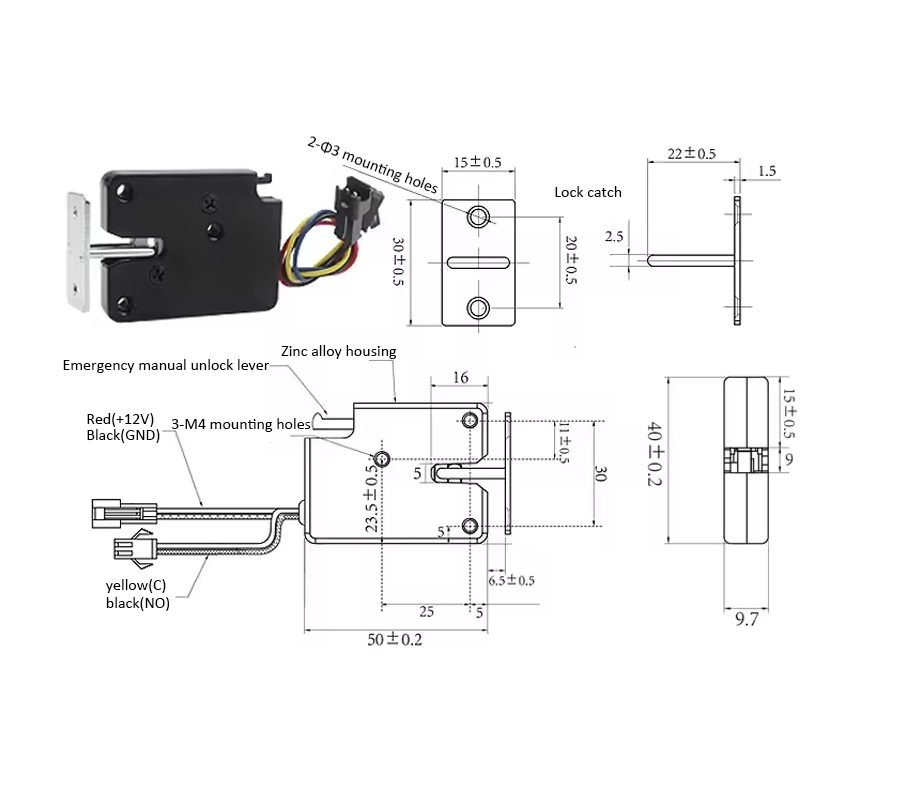

• Dimensions (mm) LxWxH: 50x40x10
• Weight: 100g

Applications:

• These products are widely applied in access control system and related applications
• It is especially suitable cabinet, drawer, small type door.
• Can be used in Home Automation Systems
• Used in bank locker, gym locker, vending machine, cabinets, CCTV housing, mini refrigerators, vending machines, etc.
• Mini design, low operational and standby current.

Package Includes:

• 1 x 12V Electric Door Lock for Cabinet Locker Safe
• 1 x Lock catch

Note:

• Do not power on this solenoid for more than 1 second during unlocking. If powered on for more than 1 second, the solenoid will heat up and fail quickly.
