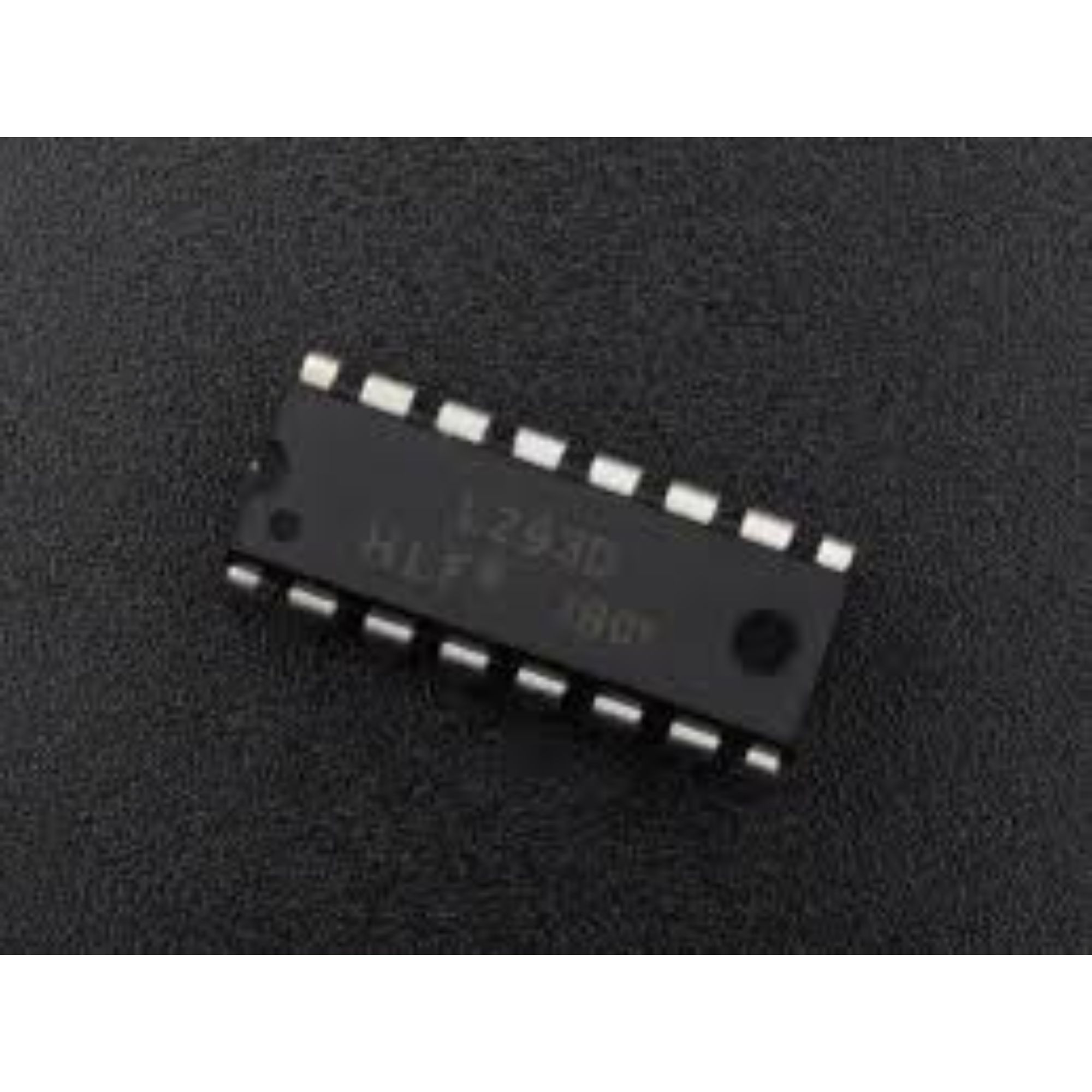

L293D Dual H-Bridge Motor Driver IC DIP-16 Package

L293D Dual H-Bridge Motor Driver IC DIP-16 Package is quadruple high-current half-H driver. The L293 is designed to provide bidirectional drive currents of up to 1 A at voltages from 4.5 V to 36 V. The L293D is designed to provide bidirectional drive currents of up to 600-mA at voltages from 4.5 V to 36 V. Both devices are designed to drive inductive loads such as relays, solenoids, dc and bipolar stepping motors, as well as other high-current/high-voltage loads in positive-supply applications.

All inputs are TTL compatible. Each output is a complete totem-pole drive circuit, with a Darlington transistor sink and a pseudo Darlington source. Drivers are enabled in pairs, with drivers 1 and 2 enabled by 1, 2 EN and drivers 3 and 4 enabled by 3, 4 EN. When an enable input is high, the associated drivers are enabled, and their outputs are active and in phase with their inputs. When the enable input is low, those drivers are disabled, and their outputs are off and in the high-impedance state. With the proper data inputs, each pair of drivers forms a full – H (or bridge) reversible drive suitable for solenoid or motor applications.

Features:

• Can be used to run Two DC motors with the same IC.
• Speed and Direction control is possible
• Wide Supply-Voltage Range: 4.5 V to 36 V.
• Separate Input-Logic Supply.
• Internal ESD Protection.
• Thermal Shutdown.
• High-Noise-Immunity Inputs.
• Output Current 1 A Per Channel (600 mA for L293D).
• Peak Output Current 2 A Per Channel (1.2 A for L293D).
• Output Clamp Diodes for Inductive Transient Suppression (L293D).

Specifications:

• Package/Case: PowerDIP-16
• Mounting Type: Through Hole
• No. of Drivers: 1
• No. of Output: 2
• Maximum Supply Voltage (V): 36
• Minimum Supply Voltage (V): 4.5
• Max. Operating Current (mA): 2
• Max. Output Current (A): 600 mA
• Operating Temperature (°C):: -40 to 130
• Dimensions in mm (LxWxH): 19.20 x 7.97 x 3.26

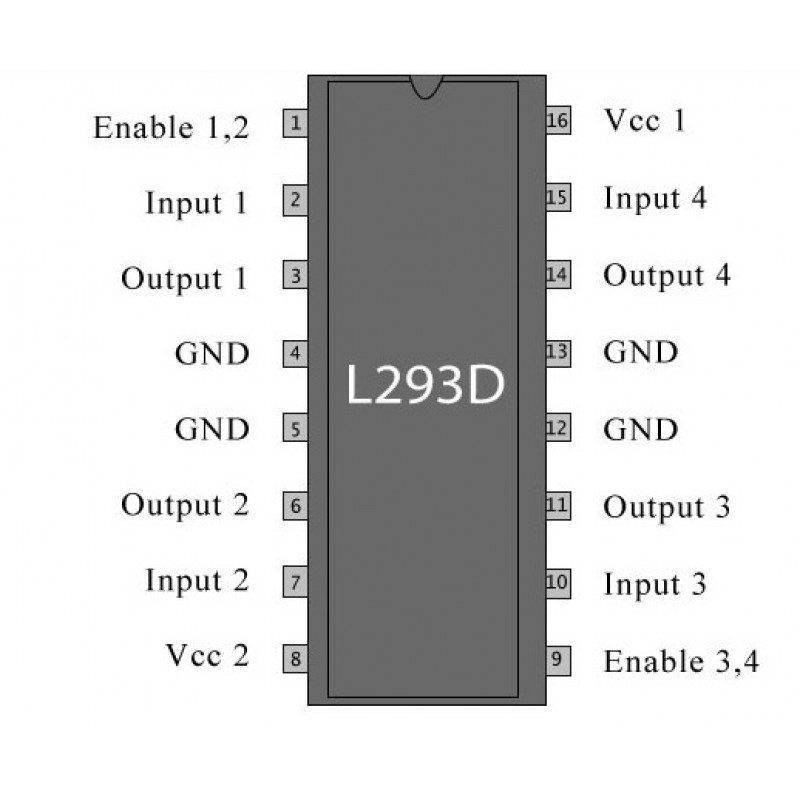

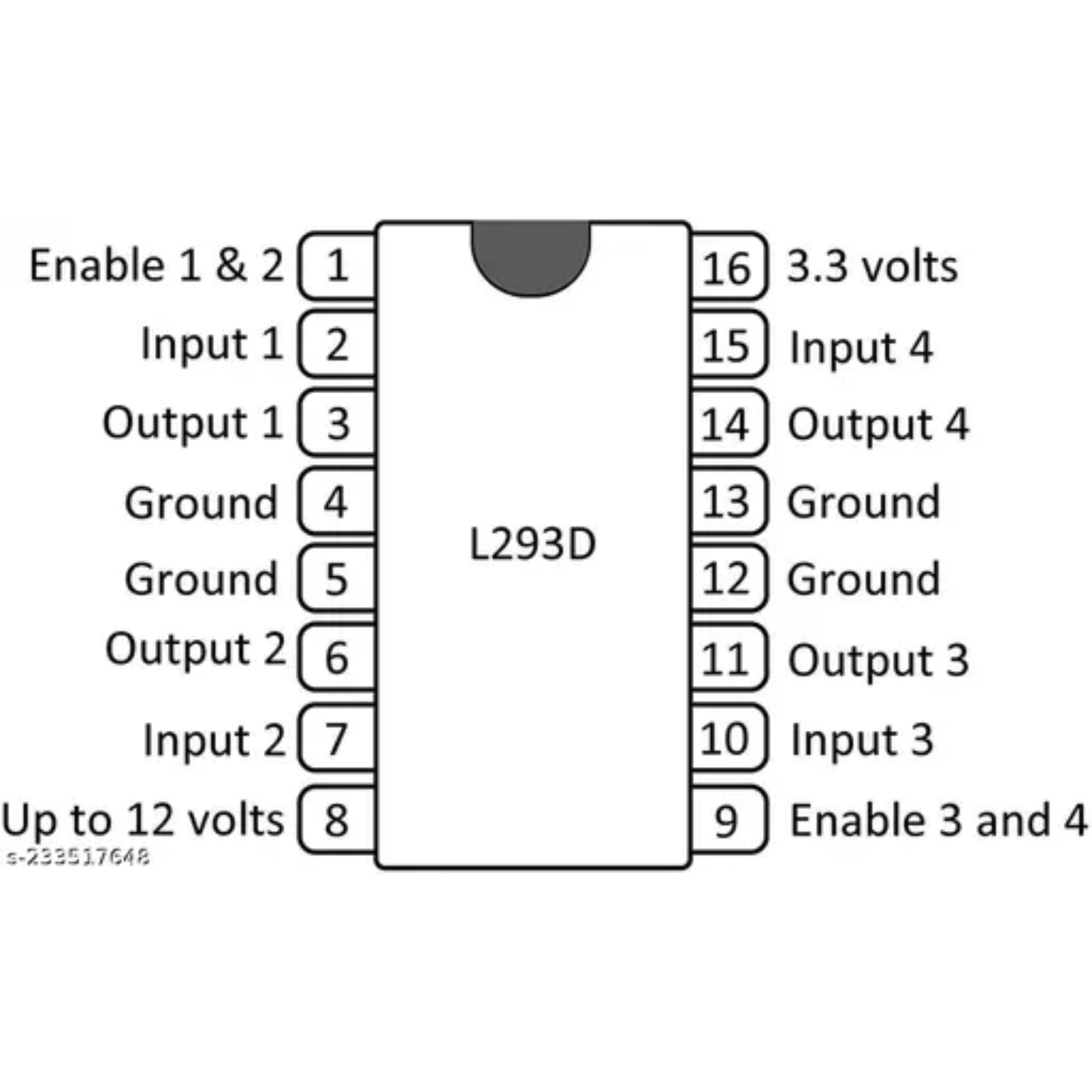

Pin Configurations:

1. Enable 1,2: This pin enables the input pin Input 1(2) and Input 2(7)
2. Input 1: Directly controls the Output 1 pin. Controlled by digital circuits
3. Output 1: Connected to one end of  Motor 1
4. Ground: Ground pins are connected to ground of circuit (0V)
5. Ground: Ground pins are connected to ground of circuit (0V)
6. Output 2: Connected to another end of Motor 1
7. Input 2: Directly controls the Output 2 pin. Controlled by digital circuits
