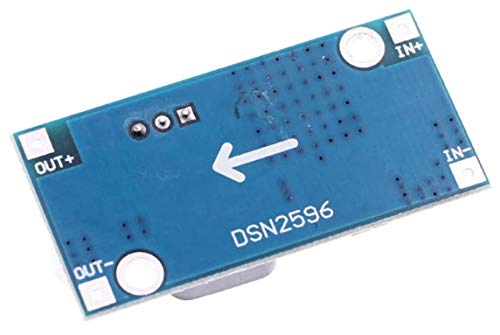

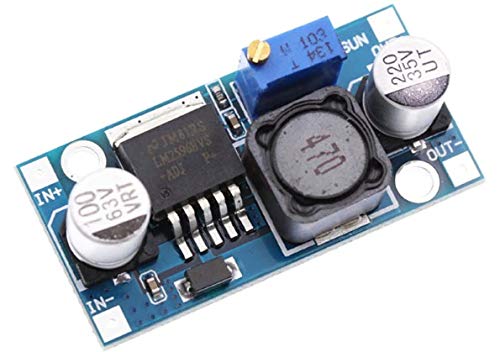

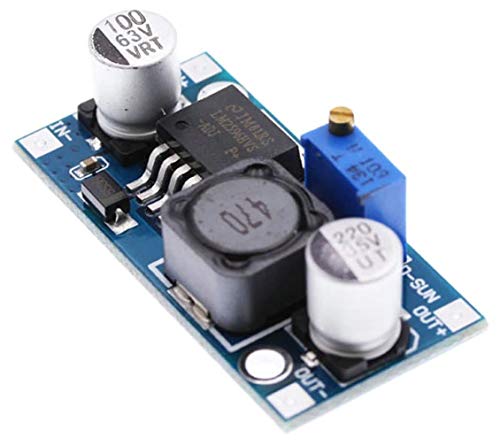

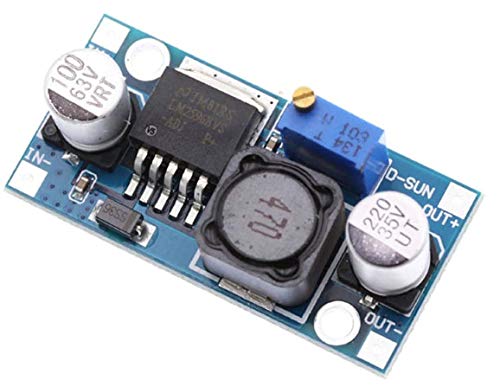

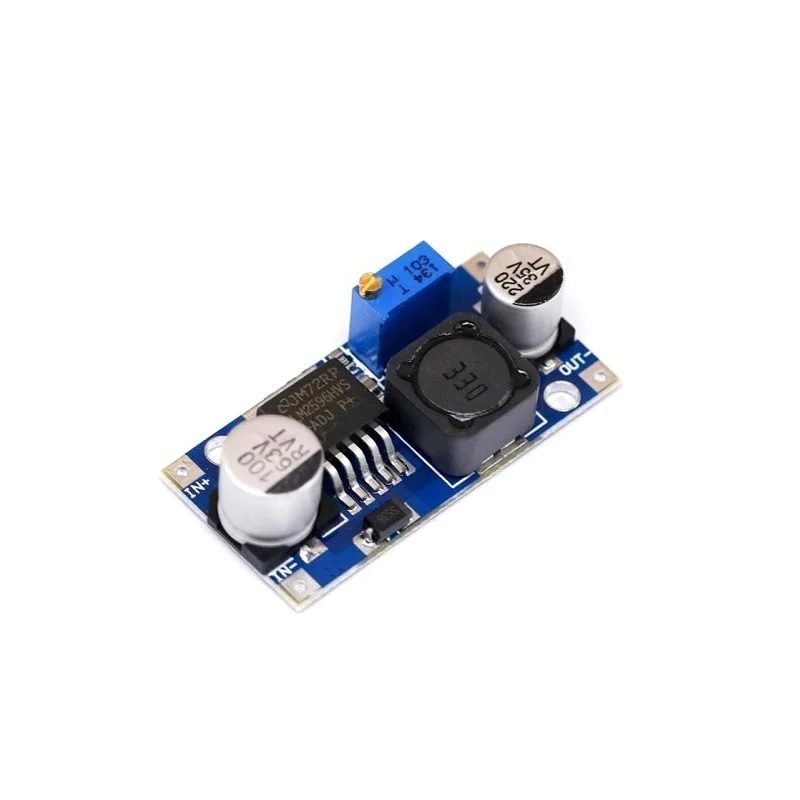

LM2596HVS DC-DC Buck Converter 4.5-50V to 3V-40V Adjustable Step Down Power Module

LM2596HVS DC-DC Buck Converter module is a high input voltage version of the LM2596 Module. The LM2596HVS module is a DC to DC converter buck converter module with an input voltage range of 4.5 volts to 50 volts and an output of 3 volts to 40 volts. This output is variable and can be varied using the on-board multi-turn potentiometer.

Features:

• High efficiency up to 92%.
• 4.5 Volt – 50 Volt adjustable input voltage range.
• 3 volt – 40 Volts adjustable output voltage range.
• With over-current and over-temperature protection, safe for use.
• Fine workmanship, long life span.
• Can set the float voltage and charging current.
• Special design enhanced heating radiating.

Specifications:

• Input Voltage (V): 4.5 to 50
• Output Voltage(V): 3 ~ 35
• Max. Output Current (Amp): 3
• Conversion Efficiency: up to 92%
• Switching Frequency (KHz): 150
• Output Ripple: 30mA (maximum)
• Load Regulation: ±1%
• Voltage Regulation: ± 0.5%
• Operating Temperature (°C): -40 to 85

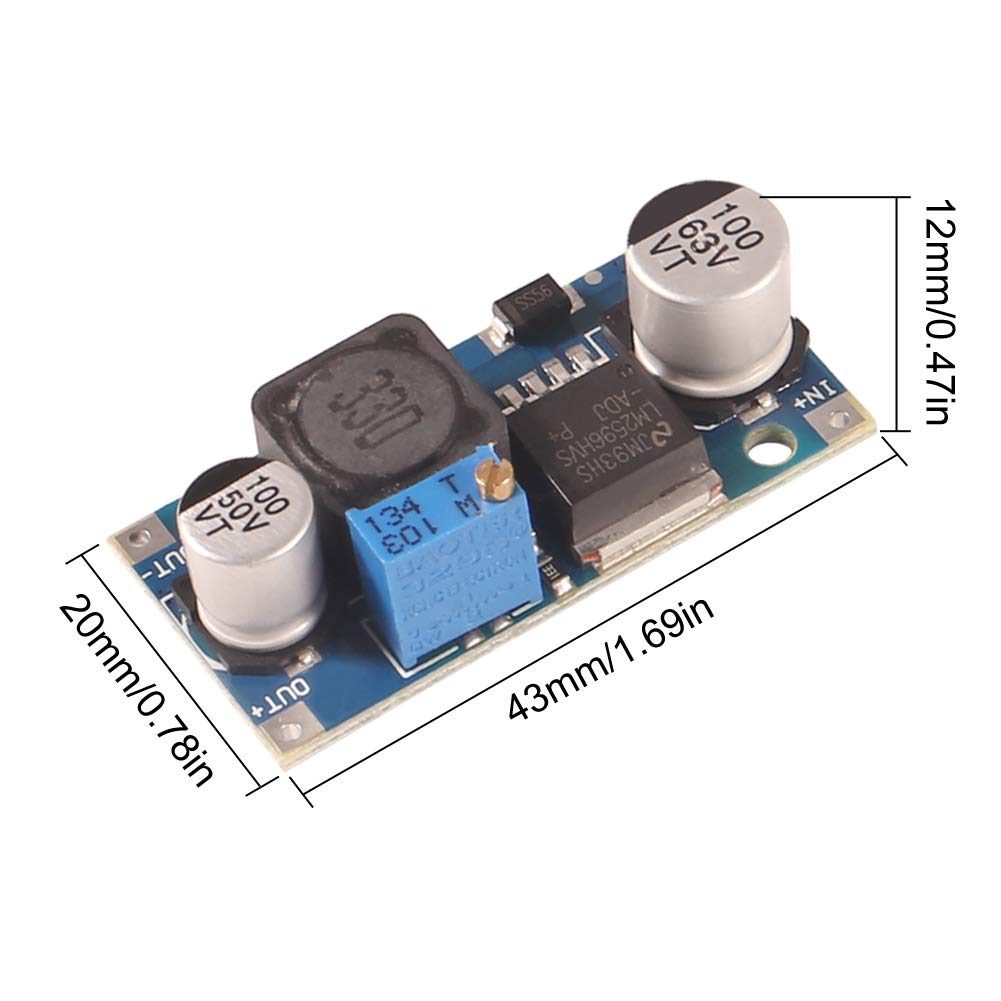

• Length (mm): 43
• Width (mm): 20
• Height (mm): 12
• Weight (gm): 11

Package Includes:

• 1 x LM2596HVS DC-DC Buck Converter 4.5-50V to 3V-40V Adjustable Step Down Power Module
