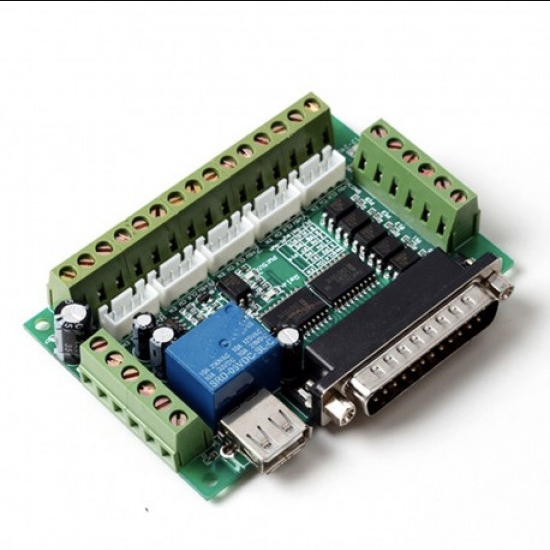

MACH3 Interface Board CNC 5 Axis with Optocoupler for Stepper Motor Driver

MACH3 Interface Board CNC 5 Axis with Optocoupler for Stepper Motor Driver is the latest upgraded 5 axis breakout board, specially designed for the CNC single axis 2-phase stepper driver controller, such as TB6560, M542, M542H, MA860H, 2M542, 2M982, DM542(A), DM860(A) etc. single axis stepper driver controller series. With this 5 axis breakout board, any 1-5 single axis stepper driver controllers can be directly controlled by the PC via the MACH3, EMC2, KCAM4, etc

All the way to the relay output port, control spindle switch. Output port P17 mouth.

All the way through the optocoupler isolated 0-10V analog voltage output can be controlled with the corresponding analog interface converter to control the spindle speed. Output port P1 port Open all 17 ports, which can be accessed with the optocoupler drive, 5-axis stepper motor can be controlled. P1 as PWM outputs can be controlled with optocoupler input spindle governor. This can access by a common cathode or common anode input level to 5V drive.

Features:

• Maximum support 5-axis stepper motor driver controllers
• Compatible with MACH3, Linux CNC (EMC2) etc. parallel-control CNC software.
• USB power supply and peripherals powered phase are separated to protect computer security.
• All the signals are opto-isolated which can protect your computer security.
• 5-input interface to define the Limit, Emergence-Stop, Cutter alignment, etc.
• Wide input voltage range: 12-24V, and with anti-reverse function.
• One relay output control interface, accessed by the spindle motor or the air pump, water pump, etc.
• Output 0-10V analog voltage for inverter to control the spindle speed.?

Specification:

Package Includes:

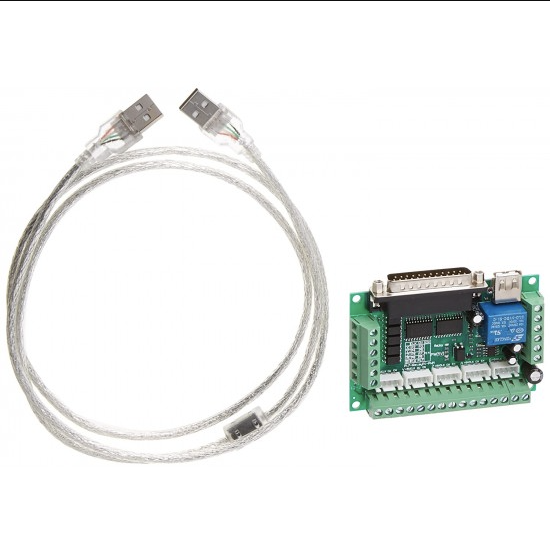

• 1 x MACH3 Interface Board.
• 1 x USB to USB Cable(1 mtr)
