MBR20100CT 20A 100V Dual High Voltage Schottky Diode Rectifier

The MBR20100CT 20A 100V Dual High Voltage Schottky Diode Rectifier is a dual Schottky diode with common cathode in a To-220 Package for high current applications. Each diode has a forward current of 10A, hence the IC can push up to 20A through it with a peak reverse voltage of 100V.

The MBR20100 is a rectifier dual diode that is commonly used in Converter circuits. The package consists of two diodes in parallel increasing the current rating and reducing the package size and cost. Since the Schottky diodes are faster and efficient (low voltage drop) they are commonly preferred over normal diodes provided the reverse voltage is need not be high.

Also since the diode package has common cathode it can be used in protection circuits and filter circuits for voltage clamping. So if you are looking for a high current dual Schottky diode then MBR20100 might be the right choice.

Features:

• Dual Schottky Diode
• Common Cathode Type
• Forward Current: 20A for dual diode at 50% duty cycle
• Forward Voltage drop: 0.9V (per leg)
• Peak Reverse Voltage: 100V
• Reverse Current: 6mA
• Rate of charge (dv/dt): 10k V/us
• Available in To-220 Package

Specifications:

Symbol        Parameter                                                             Value
VRRM          Peak Repetitive Reverse Voltage                          100 V
VR               Maximum DC Reverse Voltage                              100 V
IF(AV)          Maximum Average Forward Rectified Current       10 (Per Leg), 20 (Per Device) A
IFSM           Non-Repetitive Peak Forward Surge Current         150 A
TJ               Operating Junction Temperature Range                 -55 to 150 °C
Tstg           Storage Temperature Range                                   -55 to 150 °C

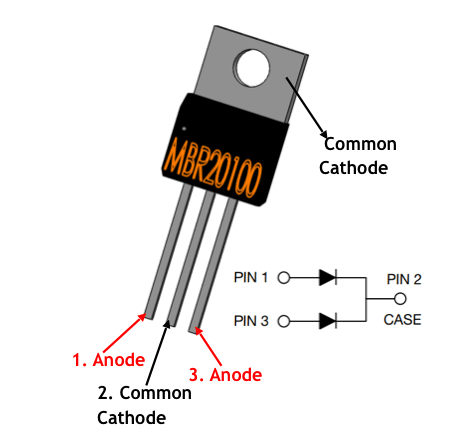

Pin Configurations:

Pin Number, Name & Description

1. Anode: Anode of first Schottky Diode
2. Common Cathode: Cathode of both Schottky Diodes
3. Anode: Anode of second Schottky Diode

Applications:

• Voltage regulators
• AC-DC filters
• Switching applications
• Protection circuits
• Line detectors
• Device protection

Package Includes:

• 1 x MBR20100CT – 100V 20A Dual High Voltage Schottky Rectifier
