Motor Controller for MY1020 24V 500W
This component is currently unavailable. Enter your email below to be notified as soon as new stock arrives!
memory Technical Parameters & Datasheet Summary
SKU: Anil861Motor Controller for MY1020 24V 500W is use for scooters and electric bikes. This motor brush controller for Electric bicycle & scooter is compatible with MY1020 500W DC motor
Specifications:
|
Compatible for Motor |
MY1020 500W |
|
Body Material |
Aluminium |
|
Cable Length |
10 CM |
|
Current Limit |
33A |
|
Rated Voltage(V) |
|
|
Under-Voltage Protection (V) |
20.5 V |
|
Throttle |
1-4V |
|
Weight (gm) |
215g |
|
Dimensions in mm (LxWxH) |
83 x 65 x 39 |
|
Rated Power (W) |
500W |

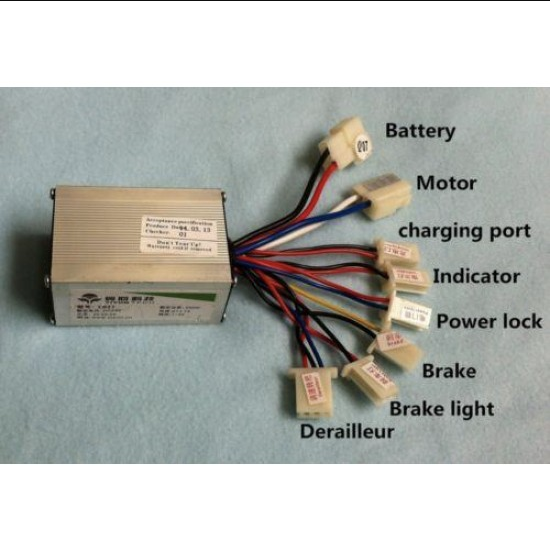

Wiring connections on controller:
- 1 Brake wire
- 2 Charging port
- 3 Derailleur /throttle
- 4 Indicator
- 5 Power locks
- 6 Brake light
- 7 Motor
- 8 Battery
Usually, for every connection, marking is there on controller socket.
Package Includes:
1 x Motor Controller 24V for MY1020 500W
