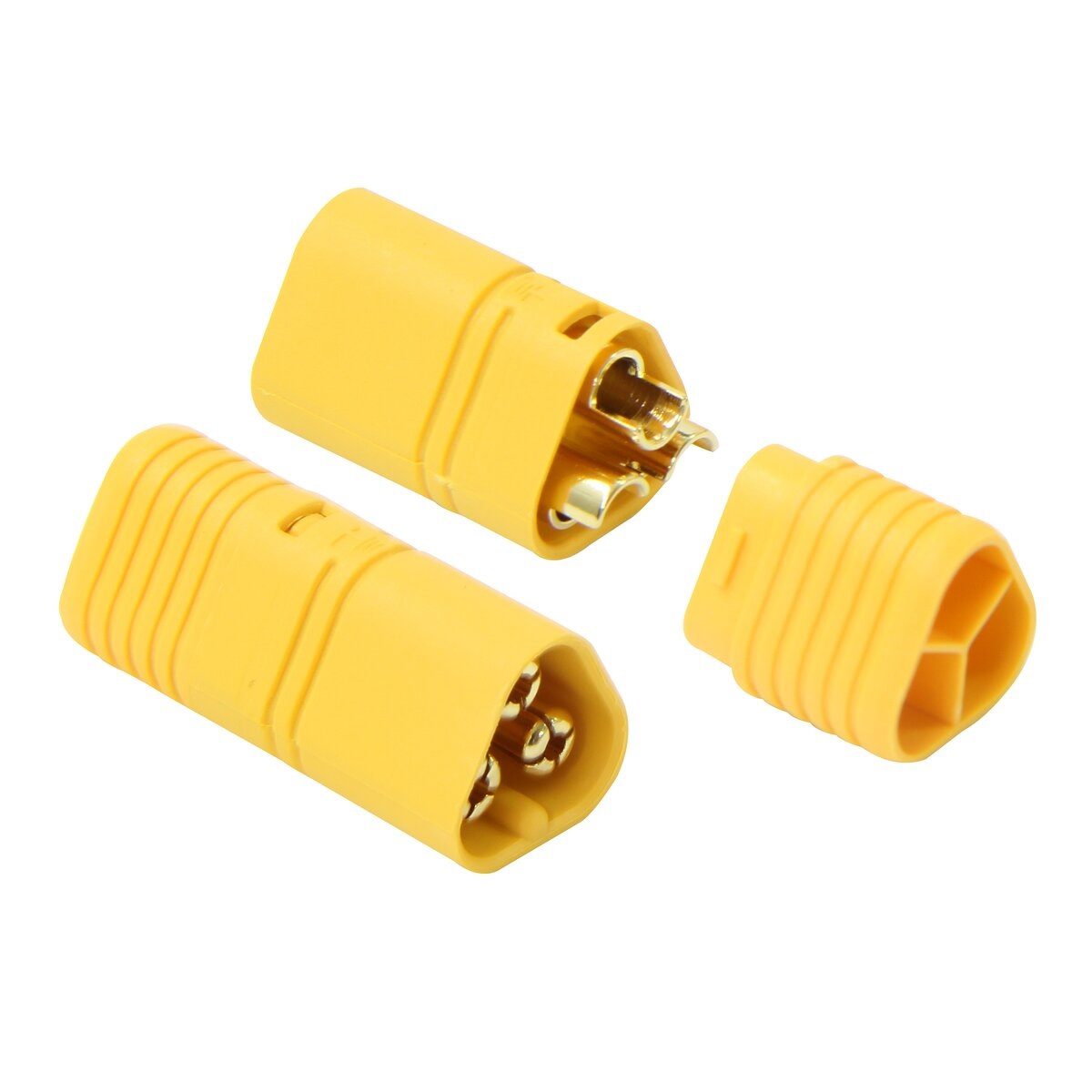

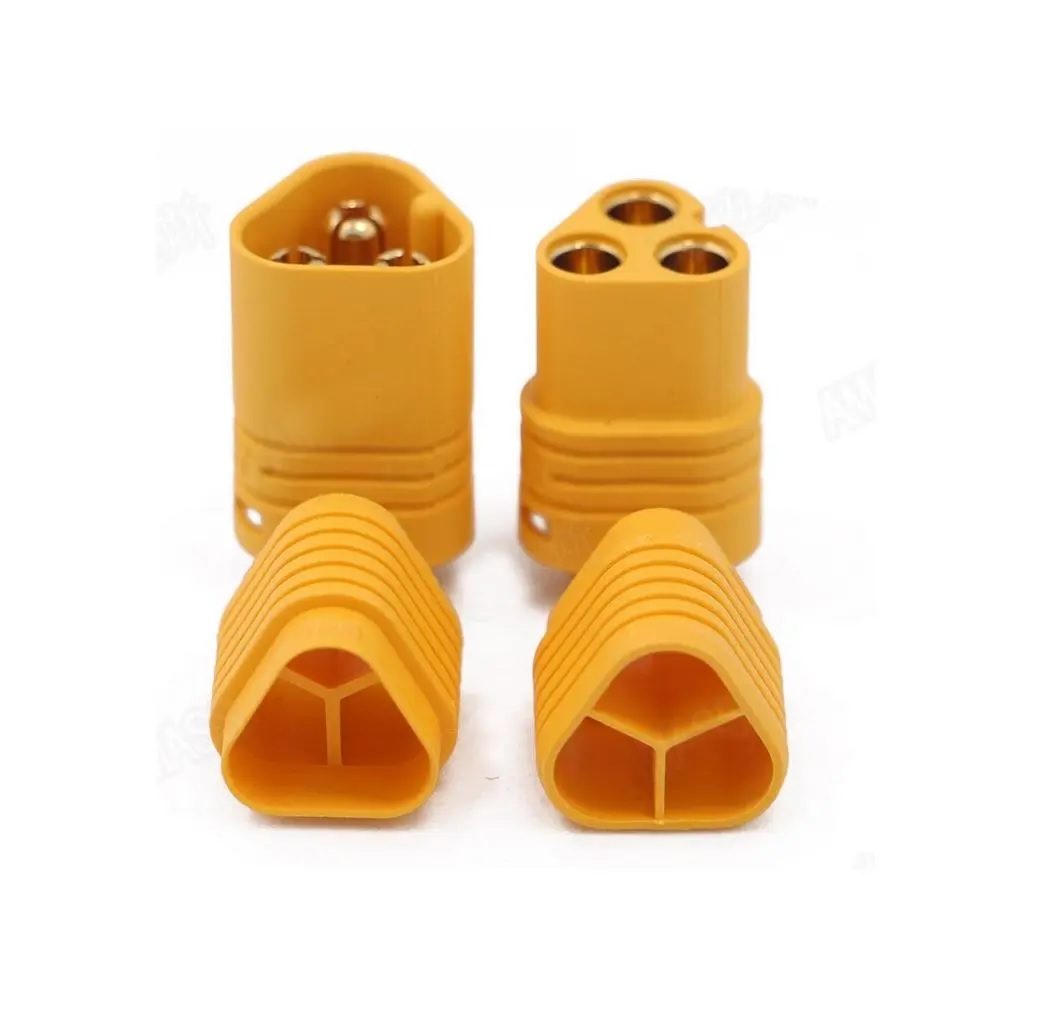

MT30 3 Pole Motor/ESC Connector Set Male+Female Pair (1 Set)

The MT30 3 Pole Motor/ESC Connector Set Male+Female Pair (1 Set) is the perfect solution for securing your brushless motor / ESC connections for up to 16AWG wires. The connector set featured with gold plated connecting points, high-quality plastic with ideal design. Both male and female connectors are fitted with 2mm bullet points to solder the wires and supplied with a cable tidy attachment Cap to keep things nice and neat!

The connectors are manufactured from toughened plastic and provide a very secure fit making them perfect for EDF and multi-rotor applications.

Specifications:

• Model: MT30
• Gender: Mail-Female Pair
• Rated Operating Voltage (VDC): 500
• Current Handling Capacity (A): 60
• No. of Contact Points: 3
• Connector Type: MT30
• Contact Material: Brass
• Contact Plating: Gold flash
• Operating Temperature Range (°C): -20 to 120
• Color: Yellow
• Dimensions (mm) LxWxH: 20 x 10 x 10mm (assembled)
• Weight (gm): 2.96 per pcs.
• Allowed Wire Size (AWG): 18 ~ 16

Note:

• Connector back Cap’s Lock is designed to be very tight, Once you locked it then it is little tough to reopen it.

Package Includes:

• 1 x MT30 3 Pole Motor/ESC Connector Set Male+Female Pair (1 Set)
