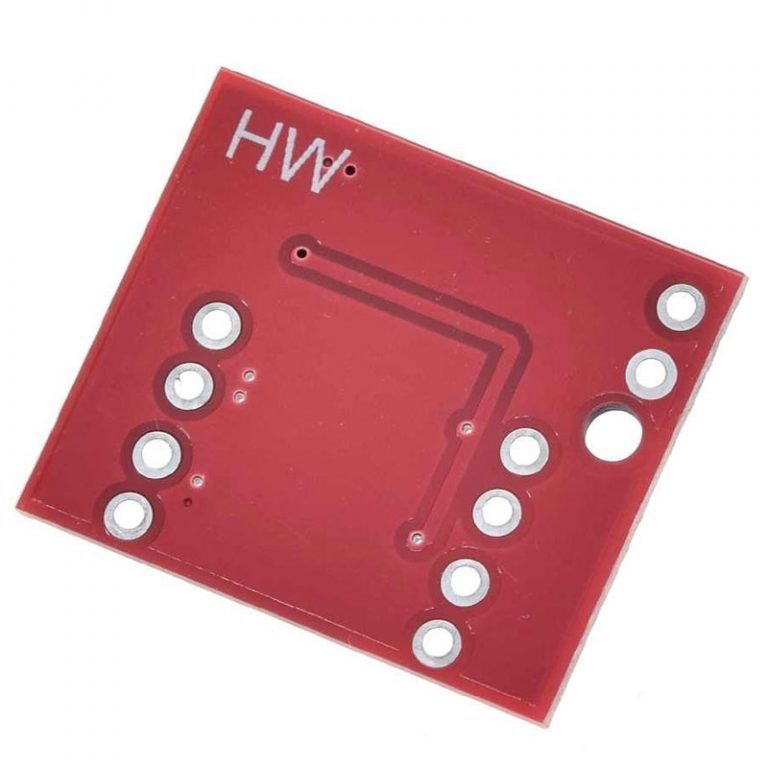

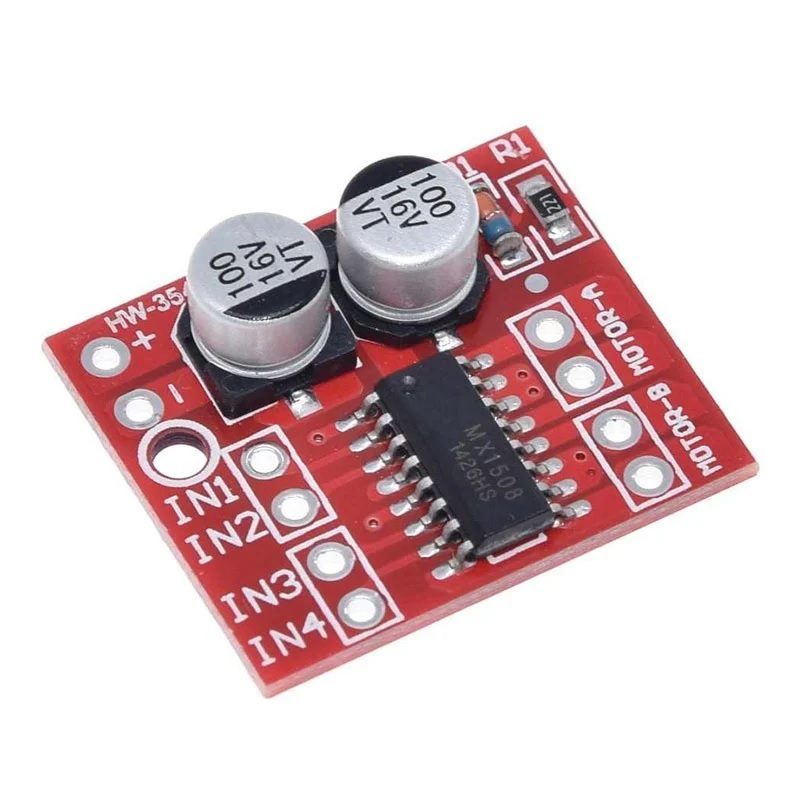

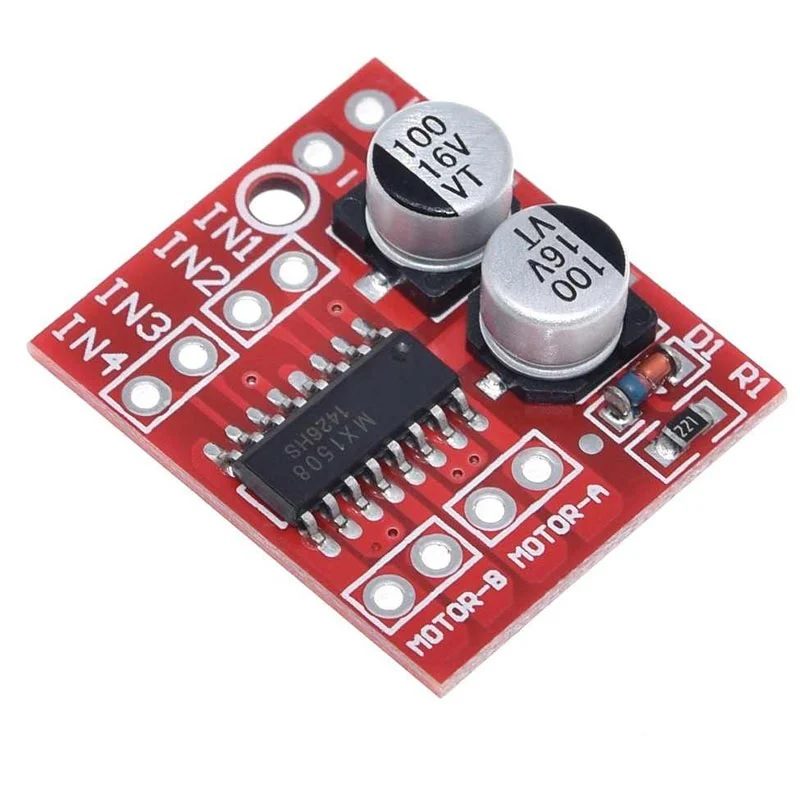

MX1508 Dual H Bridge DC PWM Stepper Motor Driver

MX1508 Dual H Bridge DC PWM Stepper Motor Driver module is ideal for use in battery-powered smart cars, toy cars, robots. Supply voltage 2V ~ 10V can drive two DC motors or 4-wire 2-phase stepper motors, can achieve forward rotation or reverse rotation, it is possible to adjust the rotation speed. Each can provide a continuous current of 1.5A, peak current up to 2.5A, thermal protection and can be automatically restored.

Features:

• Dual H-bridge motor driver can drive two DC motors or a 4-wire two-phase stepper motor.
• Single Operating current 1.5A
• peak current up to 2.5A, low standby current (less than 0.1uA).
• Built-in common conduction circuit, when the input pin is left floating, the motor does not malfunction.
• Built-in thermal protection circuit with hysteresis effects (TSD), without worrying about the motor stall.
• Ultra-small size.
• The mounting hole diameter: 2 mm

Specifications:

• The module supply voltage: 2V-10V
• Signal input voltage: 1.8-7V
• Single Operating current: 1.5A
• Peak current: up to 2.5A
• Low standby current: less than 0.1uA
• The mounting hole diameter: 2 mm

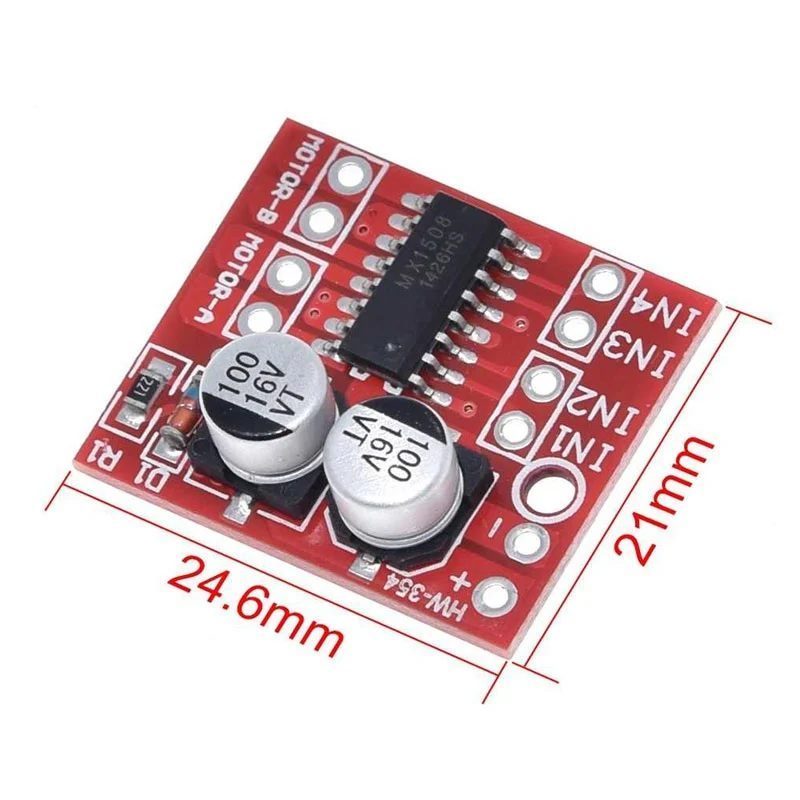

• Length(mm): 24.6
• Breadth(mm): 21
• Height(mm): 5
• Weight(g): 2

Package Includes:

• 1 x MX1508 Dual H Bridge DC PWM Stepper Motor Driver

Note: This Product is available in two different variants of IC (MX1508 and JL AS208PO1429-25C4) with the same working we will ship it randomly.
