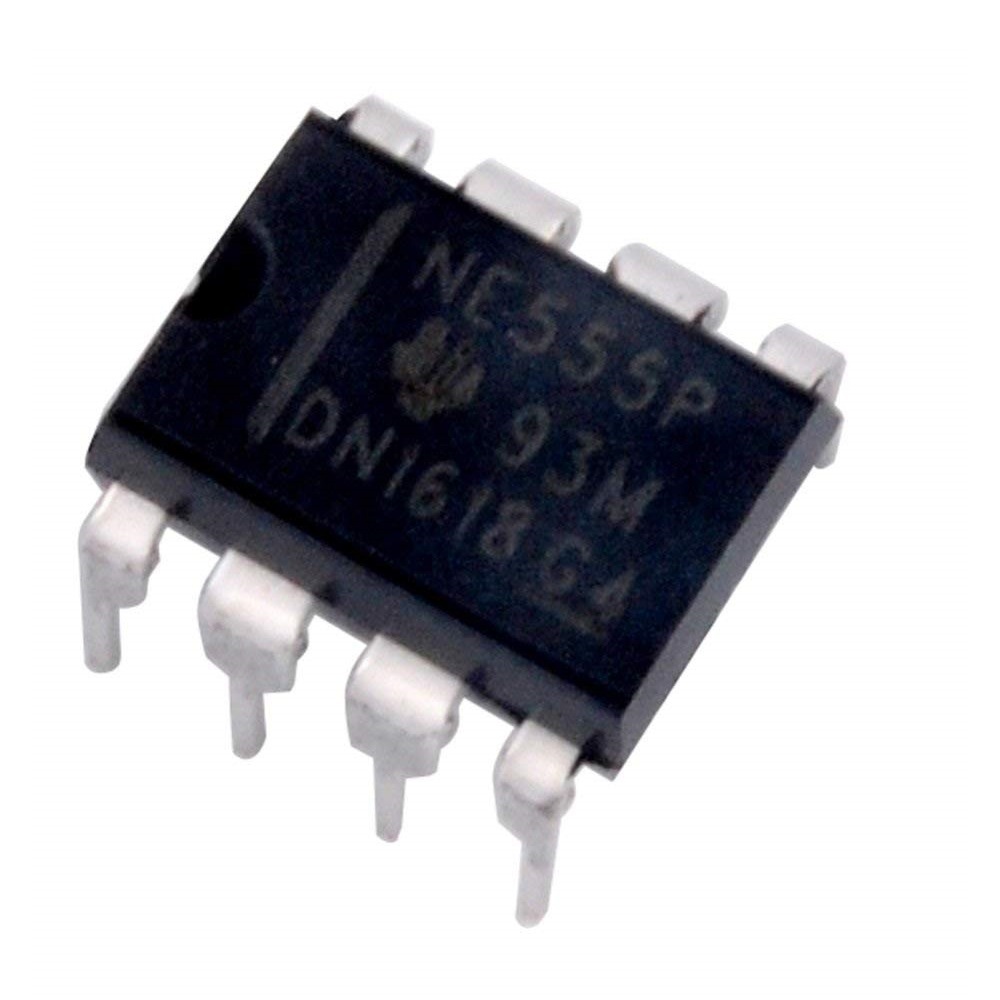

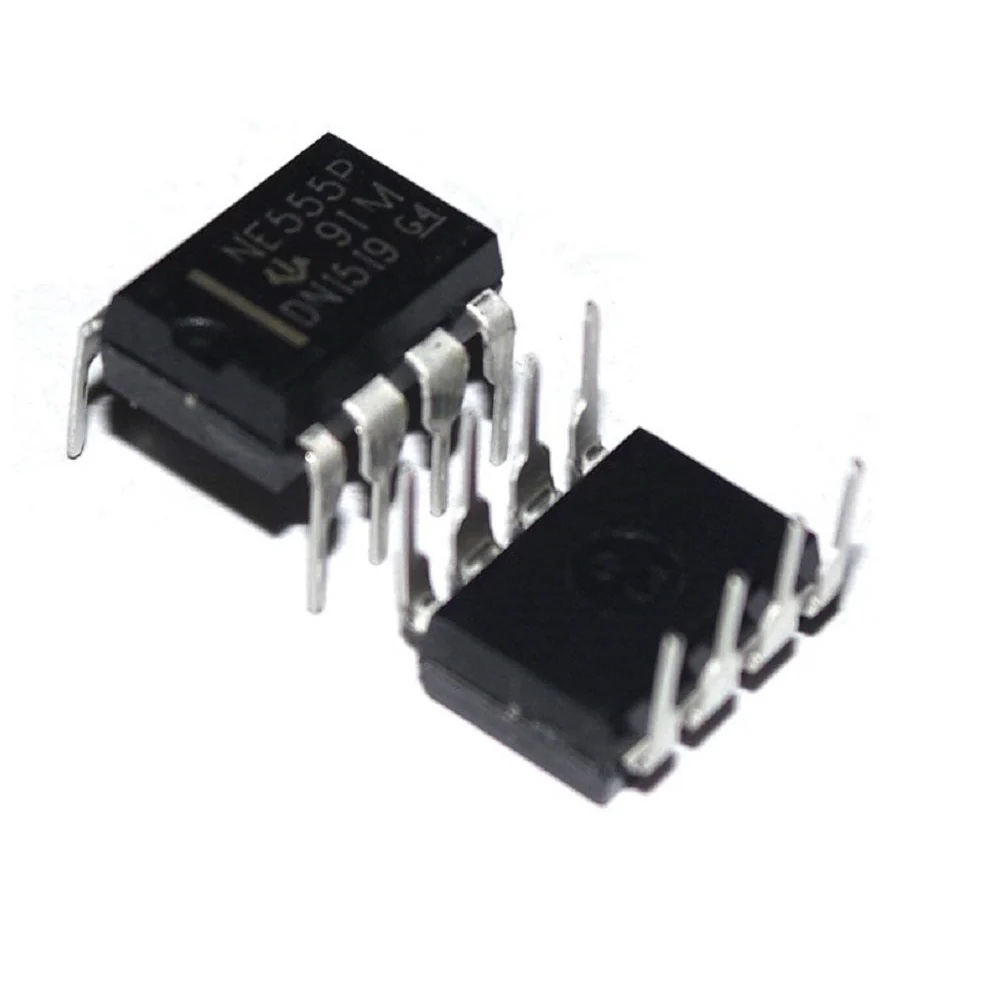

NE555P Precision Timer IC – DIP8

NE555P Precision Timer IC is a Clock & Timing ICs designed to generate, manage, or synchronize timing signals in electronic systems. These ICs are crucial in many applications, from simple consumer devices to complex communication systems and processors, as they provide precise timing control and synchronization of various components.

LM555 is a precision timer IC, that is capable of producing accurate time delays or oscillation. It can operate in both astable and monostable configurations. In the time-delay or monostable mode of operation, the timed interval is controlled by a single external resistor and capacitor network. In the astable mode of operation, the frequency and duty cycle can be controlled independently with two external resistors and a single external capacitor.

Features:

• 555 is Capable of producing accurate time.
• It could produce timing from microseconds to hours.
• Could work in Astable or monostable operation.
• The output duty cycle is Adjustable.
• Could be used as PWM.
• TTL compatible output can sink or source up to 200mA.

Specifications:

• Part Number: NE555P
• Make: Texas Instruments
• Package / Case: 8-DIP
• Voltage Supply: 4.5V to 16V
• Mounting Type: Through Hole
• Operating Temperature: 0°C to 70°C
• No. of Timers/Counters : 1

Applications:

• Precision timer circuit
• Square wave generator
• Inverter circuits
• PWM generators and motor control
• PPM (Pulse Position Modulation)
• Linear Ramp Generator.

Package Includes:

• 1 x NE555P TEXAS INSTRUMENTS Timer IC,PDIP-8
