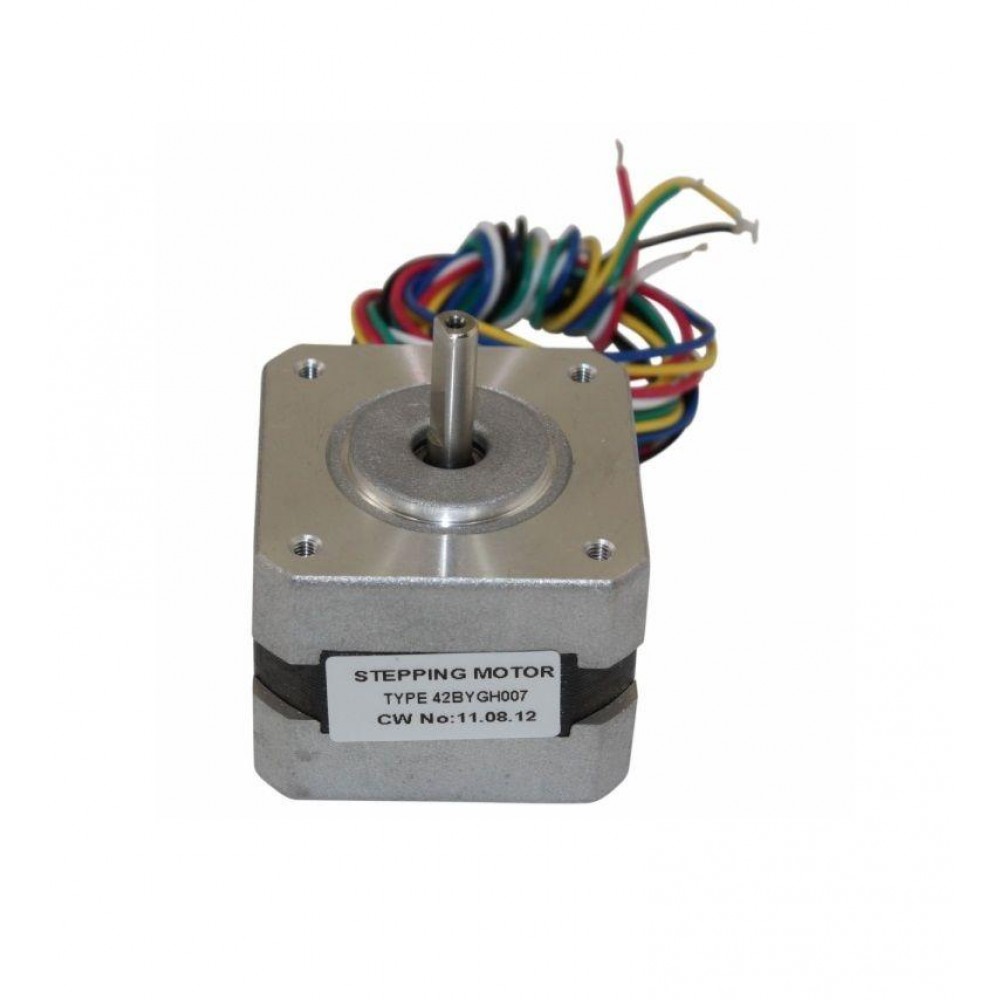

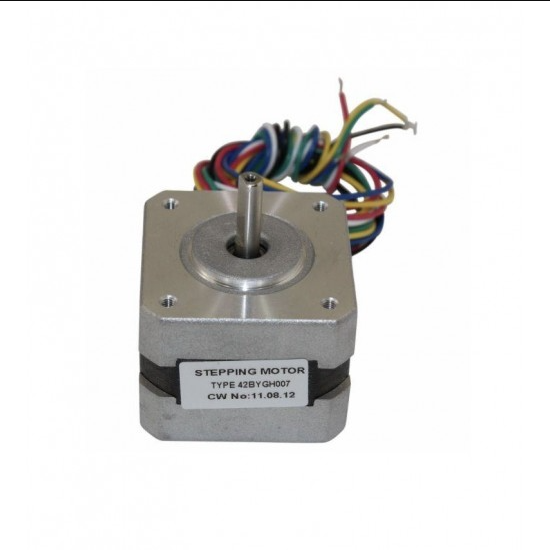

NEMA17 1.6kgcm 6 wire Unipolar Stepper Motor

The Stepper Motors move in precisely repeatable steps, hence they are the motors of choice for the machines requiring precise position control. The NEMA17 1.6kgcm 6 wire Unipolar Stepper Motor  can provide 1.6 kg-cm of torque at 0.95A current per phase. 6 wire Stepper motors can also be used as 4 wire stepper motor.

The motor’s position can be commanded to move or hold at one position with the help of Stepper Motor Drivers. The Nema17 1.6kgcm Stepper motor provides excellent response to starting, stopping and reversing pulses from stepper motor driver.

It is a brushless DC motor, so the life of this motor is dependent upon life of the bearings. The position control is achieved by a simple Open Loop control mechanism which doesn’t require complex electronic control circuitry. The motor’s shaft has been machined for good grip with a pulley, drive gear etc. and especially avoiding stall or slip.

Features:

• Supreme finish
• Smooth surface
• Long lasting life
• Low cost for control achieved
• High torque at startup and low speeds
• Ruggedness
• Simplicity of construction
• Low maintenance
• Will work in any environment
• Can be used in robotics in a wide scale.
• High reliability
• The rotation angle of the motor is proportional to the input pulse.
• The motor has full torque at standstill (if the windings are energized)
• Excellent response to starting/stopping/reversing.
• The motors response to digital input pulses provides open-loop control, making the motor simpler and less costly to control.
• It is possible to achieve very low-speed synchronous rotation with a load that is directly coupled to the shaft.
• A wide range of rotational speeds can be realized as the speed is proportional to the frequency of the input pulses.

Package includes :

• 1 x NEMA17 1.6kgcm 6 wire Unipolar Stepper Motor
