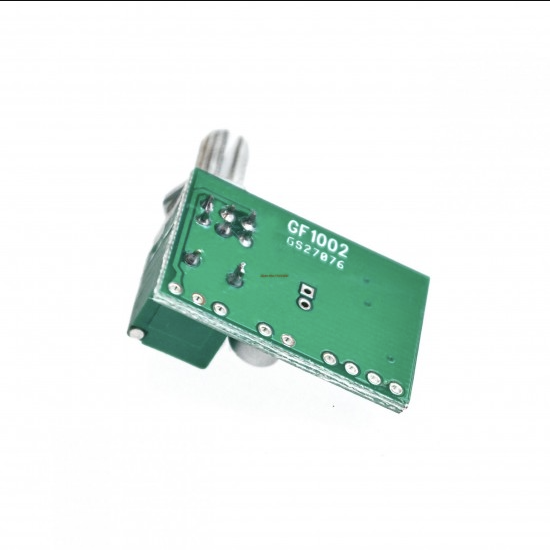

PAM8403 Mini 5V Audio Amplifier Board with Switch Potentiometer
memory Technical Parameters & Datasheet Summary
SKU: Anil419-2PAM8403 Mini 5V Audio Amplifier Board with Switch Potentiometer is a small digital amplifier chip, high-definition sound quality highlights the advantages of digital chips, circuit using the most reasonable peripheral configuration, power supply filtering is upgraded to 470uf.
1.6mm glass sheet, the real amplifier board did the most detailed, high-fidelity sound output 3W + 3W, is a rare good product enthusiasts amplifier, potentiometer using original anti-meter body, potentiometer with switch can cut off the power supply directly counterclockwise.
Features :
- PCB size is about: length 30mm width 22mm overall height after installed is about 16mm
- Built with switch Potentiometer, can adjust the volume & control power switch freely!
- Flexible assembly usage.
Specifications:
| Operating Voltage(VDC) | 2.5 to 5.5 |
| Maximum Output Power(W) | 3Wx2 |
| Length (mm) | 30 |
| Width (mm) | 22 |
| Weight (gm) | 8 |
Application:
- Suitable for battery or portable electronics products,
- Suitable for long time steady usage.
Note:
- Please make sure the power supply is not more than 5.5V and please don’t do reverse polarity for “+” and “-“, or else, it will burn the board.
Package Includes :
- 1 x PAM8403 Version 1 ( PAM8403 MINI 5V DIGITAL SMALL POWER AMPLIFIER BOARD USB SUPPLY)
