PCT-223 Quick Connector Terminal 3 In-3 Out, Lever Wire Connector

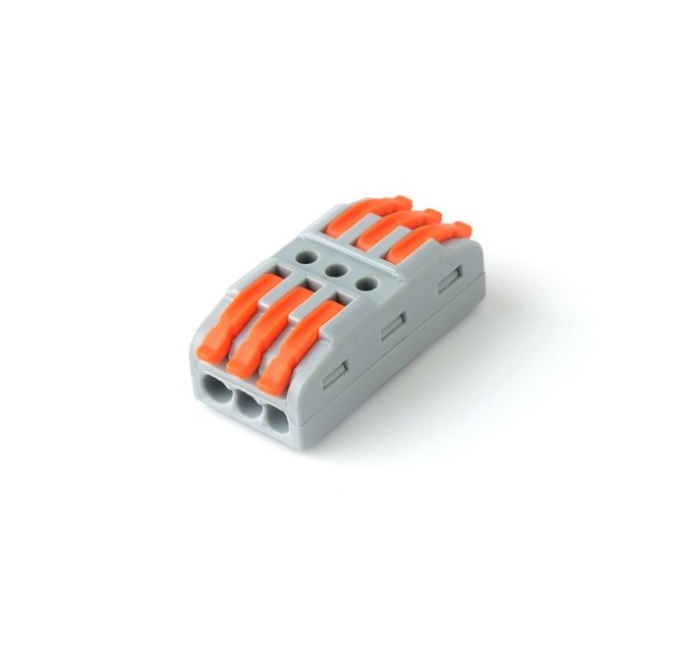

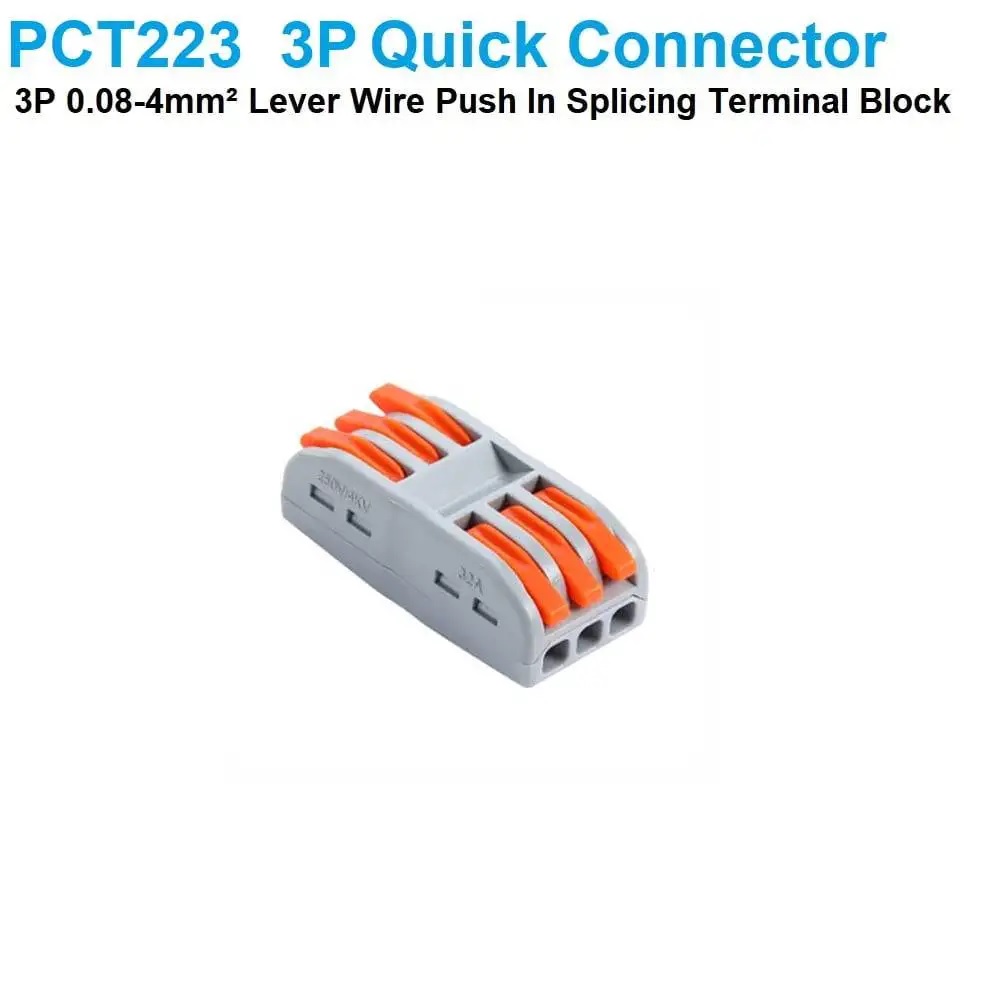

This is a PCT-223 Quick Connector Terminal is a Stationary Type 3 In-3 Out, Lever Wire Connector.

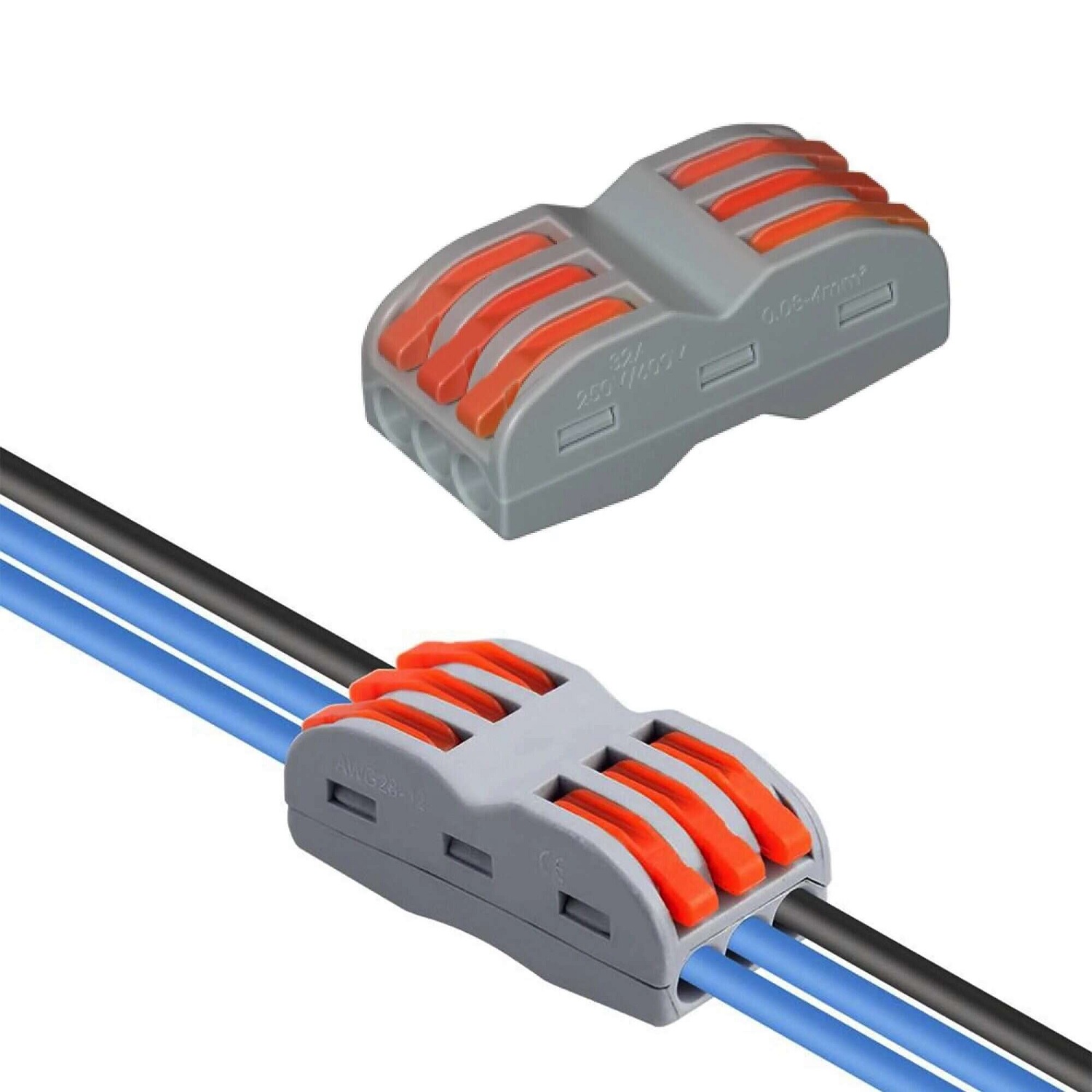

This  PCT-223 3 Pole both side Wire Connector Terminal Block with Spring Lock Lever for Cable Connection. PCT Spring Lever Connector package contains a compact locking wire connector by a spring lever, which is used for Single -strand hardwire with 0.08~4.0 mm² area or soft wire with 0.08~4.0 mm² area. This connector can tolerate the rated voltage up to 400V with an electric current peak of 32A and the Rated impulse Voltage is about 4 kV. The Strip length of the Connector is about 9-10 mm. Also, this connector is compatible with 28~12 AWG.

Features:

• Fast and easy to use
• The right terminal block and connector for every application
• Minimal space requirements enable high wiring density
• Clearly organized wiring in control cabinets and junction boxes
• Maintenance-free installation
• Permanent, secure connections

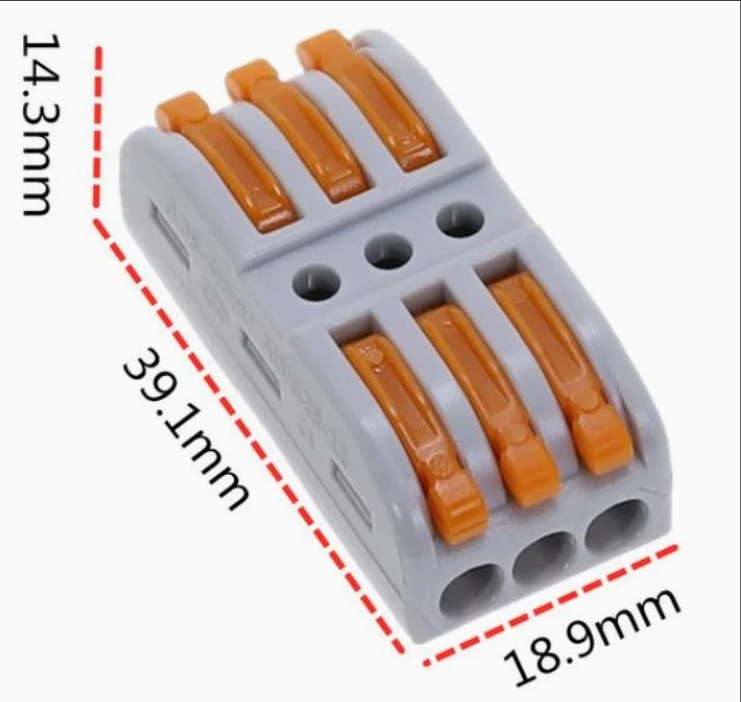

Specifications:

• Rated voltage: 600V
• Rated current: 32A
• Number of poles: 3
• Wire section :0.08~4.0mm2
• Number of clamps: 6

Package Includes:

• 1 x PCT-223-2 Stationary Type Quick Connection Terminal
