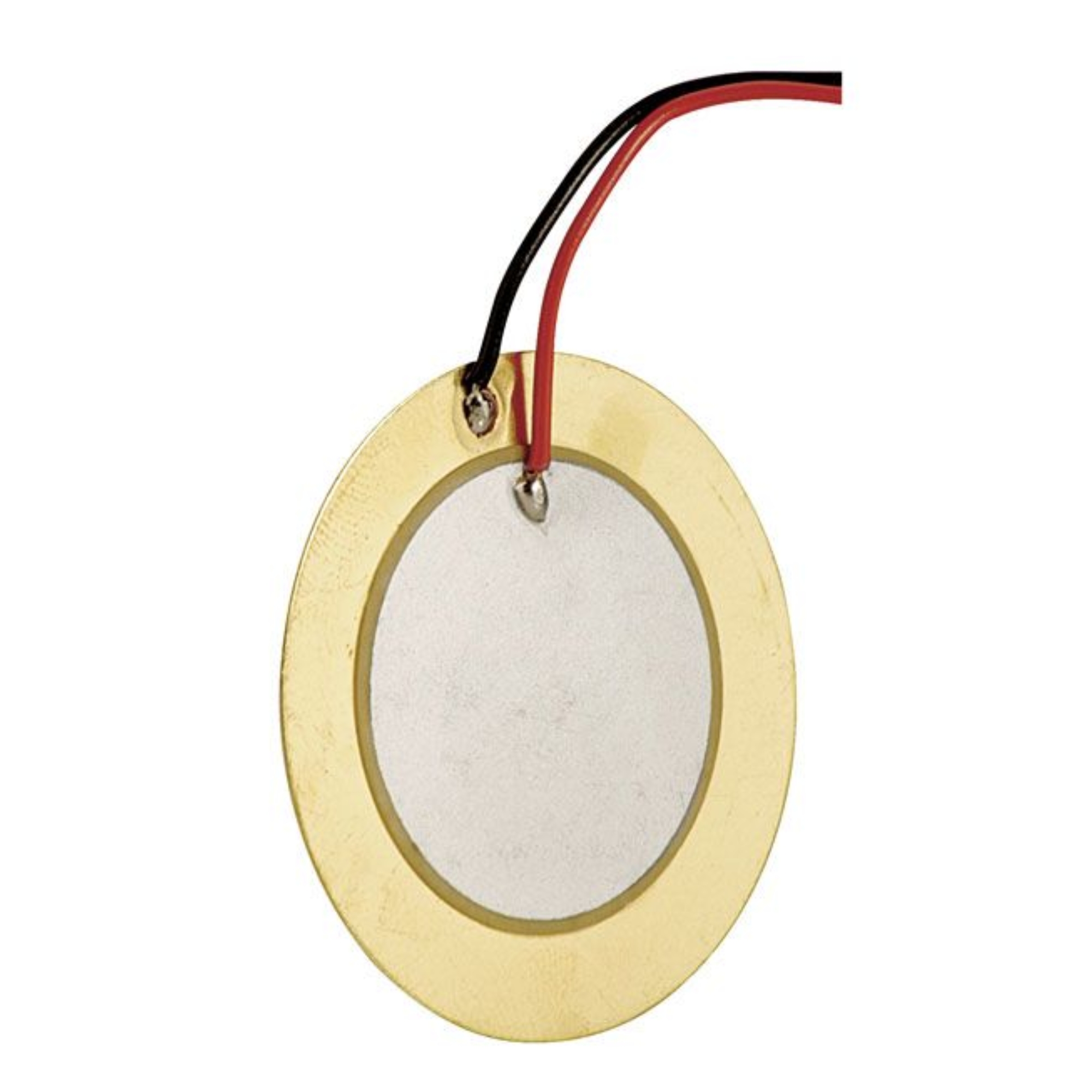

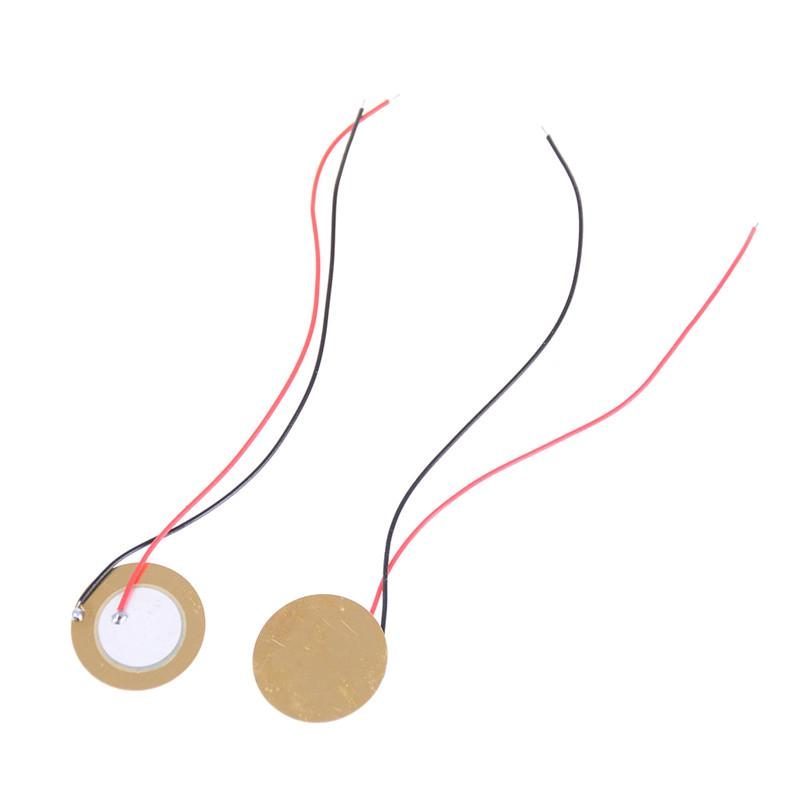

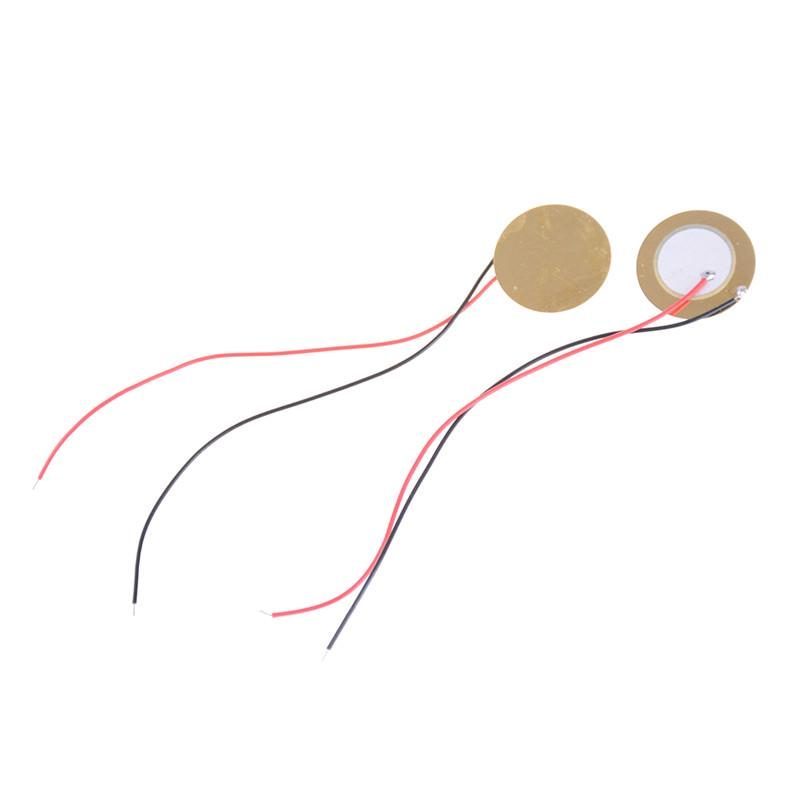

Piezo buzzer 20mm

Piezo buzzer 20mm is a piezoelectric elements, pre-wired with leads to save you having to solder the leads on yourself. 20mm is a perfect size for installing in cigar box guitars, foot stompers and other home-made instruments. They can also be used for custom pickup arrangements in more traditional stringed and percussion instruments. An electric pick-up is a sure-fire way to take your cigar box guitar or another build to the NEXT LEVEL, and many builders report that their instruments are much more attractive to potential buyers if they include a pickup.

Features:

• Great for Acoustic Guitar Pickups, drum triggers & more!
• 20mm outside diameter with pre-soldered 2-inch leads
• High-quality
• Great for Cigar Box Guitars

Specifications:

• Plate Diameter: 20mm
• Element Diameter: 14mm
• Plate Thickness: 0.42mm
• Lead Length: ~50mm
• Plate Material: Brass Resonant
• Frequency (kHz): 6.3 +/- .6kHz
• Resonant Impedance (ohm): 1000 max.
• Capacitance (nF): 10.0 +/- 30% [1kHz]

Package Includes:

• 1 x 20mm Piezo buzzer
