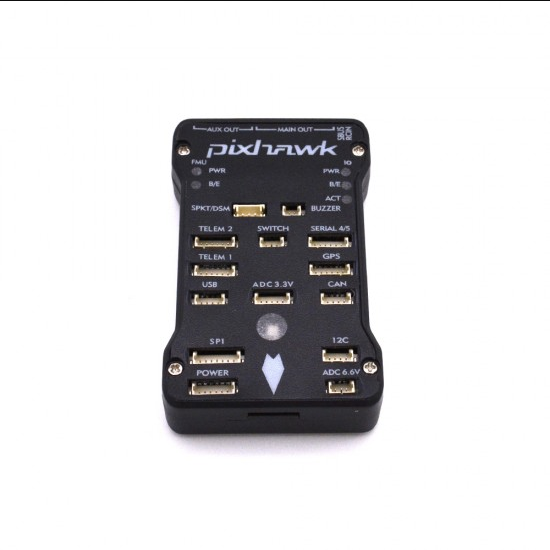

Pixhawk 2.4.8 PX4 32 Bit Flight Controller with Switch and Buzzer

Pixhawk 2.4.8 PX4 32 Bit Flight Controller with Switch and Buzzer is based on the rapidly evolving and refined Ardupilot mega or “APM”, an open-source project from 3DR robotics. This amazing flight controller allows the user to turn any fixed-wing, rotary-wing, or multirotor vehicle (even boats and cars) into a fully autonomous vehicle; capable of performing a wide range of tasks even programmed GPS missions with waypoints with the optional GPS Module.

Benefits of the Pixhawk system include integrated multithreading, a Unix/Linux-like programming environment, completely new autopilot functions such as sophisticated scripting of missions and flight behavior, and a custom PX4 driver layer ensuring tight timing across all processes.

These advanced capabilities ensure that there are no limitations to your autonomous vehicle. Pixhawk allows existing APM and PX4 operators to seamlessly transition to this system and lowers the barriers to entry for new users to participate in the exciting world of autonomous vehicles.

The flagship Pixhawk module will be accompanied by new peripheral options, including a digital airspeed sensor, support for an external multi-color LED indicator and an external magnetometer. All peripherals are automatically detected and configured.

Features :

• The advanced 32-bit ARM CortexM4 high-performance processors can run NuttX RTOS real-time operating system.
• 14 PWM / servo output.
• Bus interface (UART, I2C, SPI, CAN).
• The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe.
• Provide automatic and manual modes.
• Provide redundant power input and failover.
• Multicolor LED lights.
• Provide a multi-tone buzzer Interface.
• Micro SD recording flight data.

Specifications :

Processor:

• 32bit STM32F427 Cortex M4 core with FPU.
• 32-bit STM32F103 failsafe co-processor.
• 168 MHz.
• 128 KB RAM.
• 2 MB Flash.

Sensors:

• ST Micro L3GD20H 16 bit gyroscope.
• ST Micro X4HBA 303H 14 bit accelerometer/magnetometer.
• Invensense MPU 6000 3-axis accelerometer/gyroscope.
• MEAS MS5607 barometer.

Interfaces:

• 5x UART (serial ports), one high-power capable, 2x with HW flow control.
• 2x CAN (one with an internal 3.3V transceiver, one on expansion connector).
• Spektrum DSM / DSM2 / DSM-X® Satellite compatible input.
• Futaba S.BUS® compatible input and output.
• PPM sum signal input.
• RSSI (PWM or voltage) input.
• I2C.
• SPI.
• 3.3 and 6.6V ADC inputs.
• Internal micro USB port and external micro USB port extension.

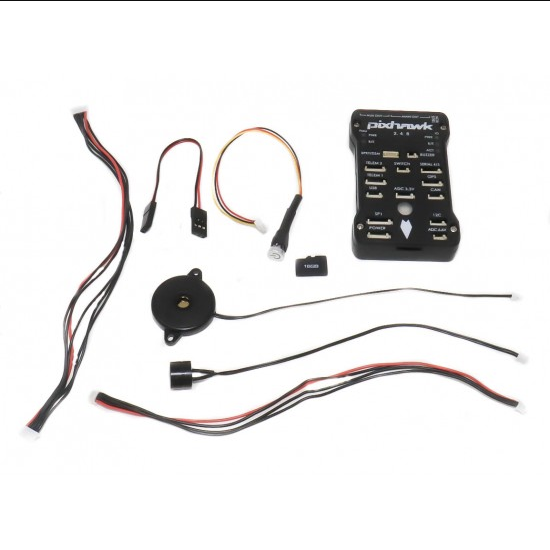

Package Includes :

• 1 x Pixhawk PX4 Autopilot PIX 2.4.8 32 Bit Flight Controller.
• 1 x MicroSD card.
• 1 x Safety Switch
• 3 x Connecting Cables.
• 1 x Buzzer Module.
