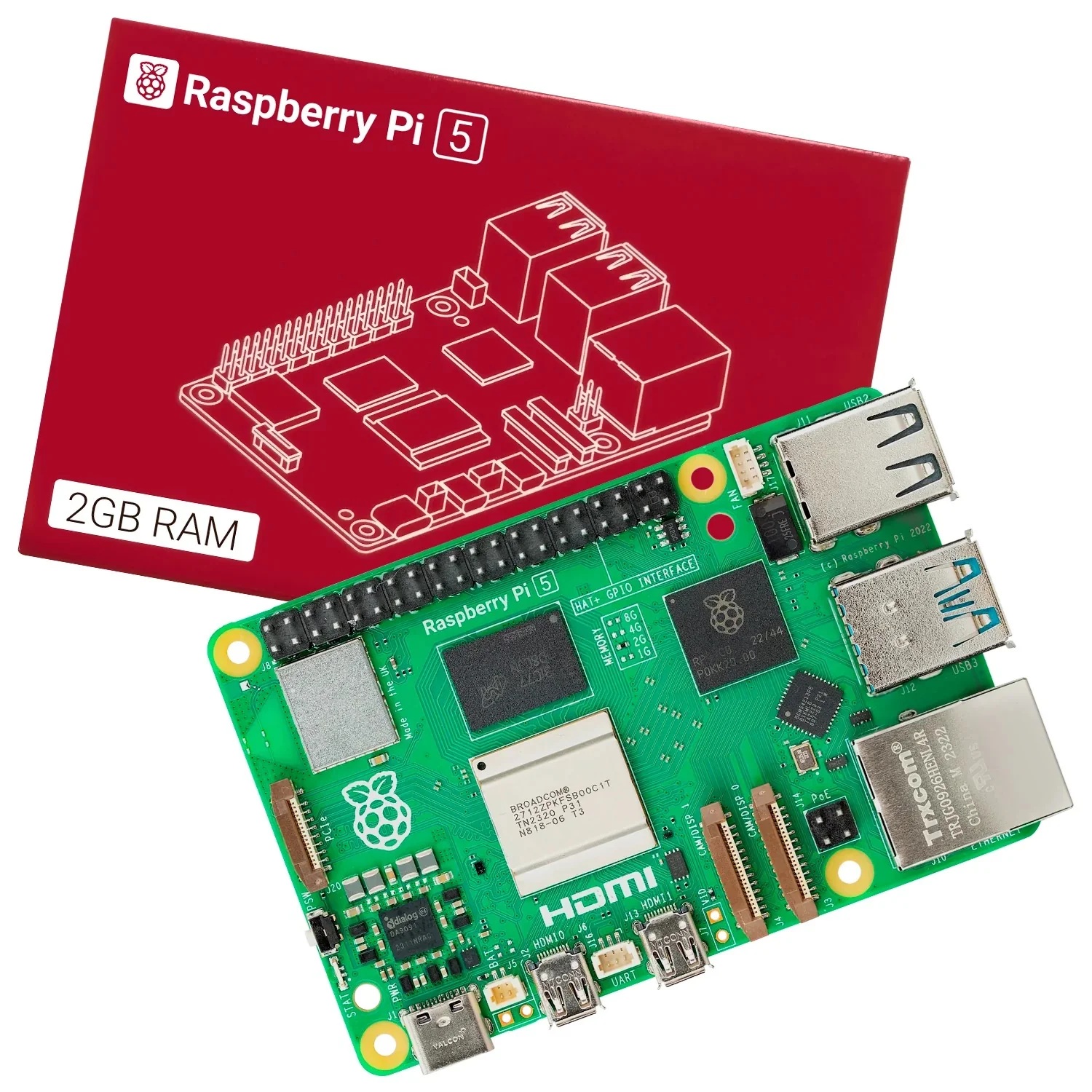

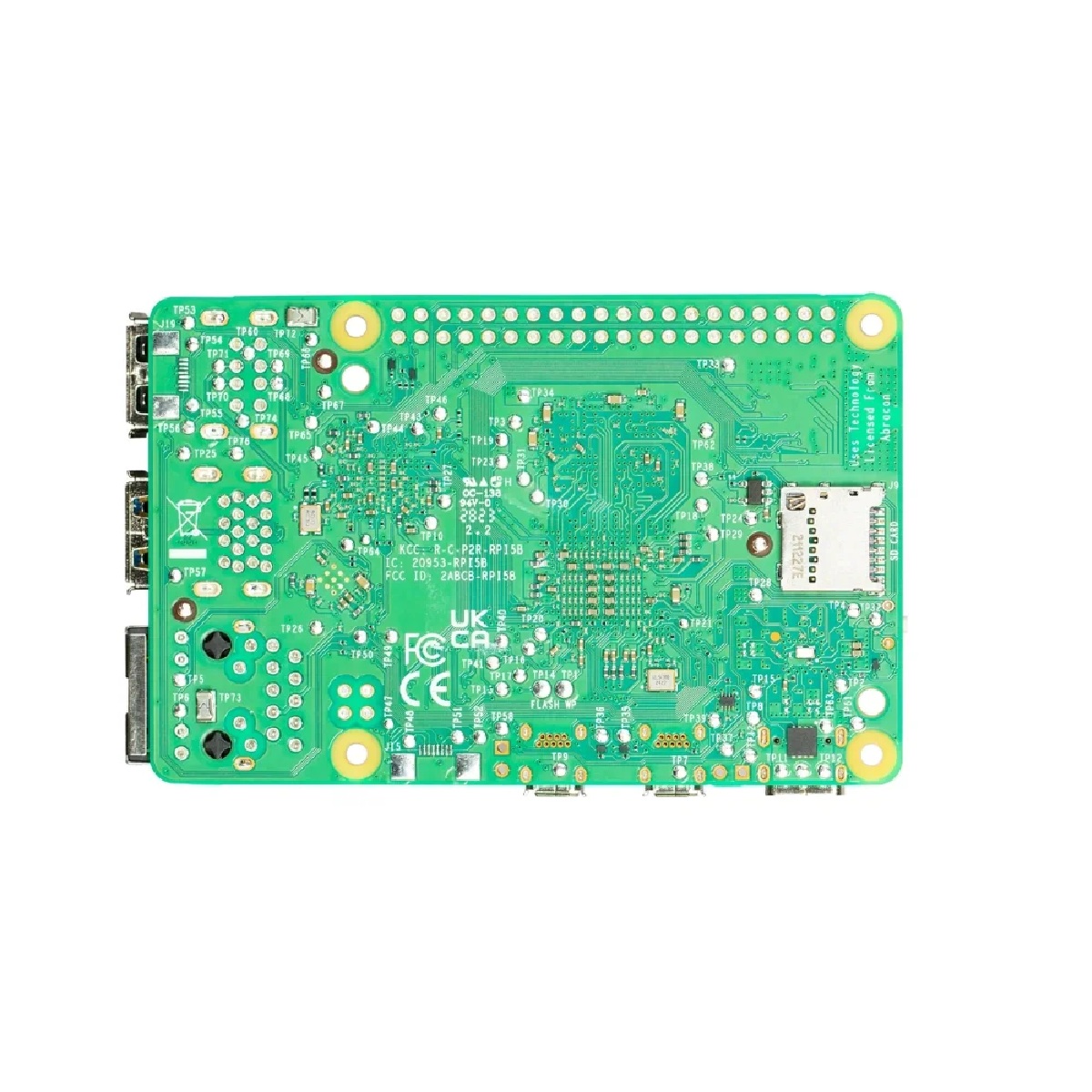

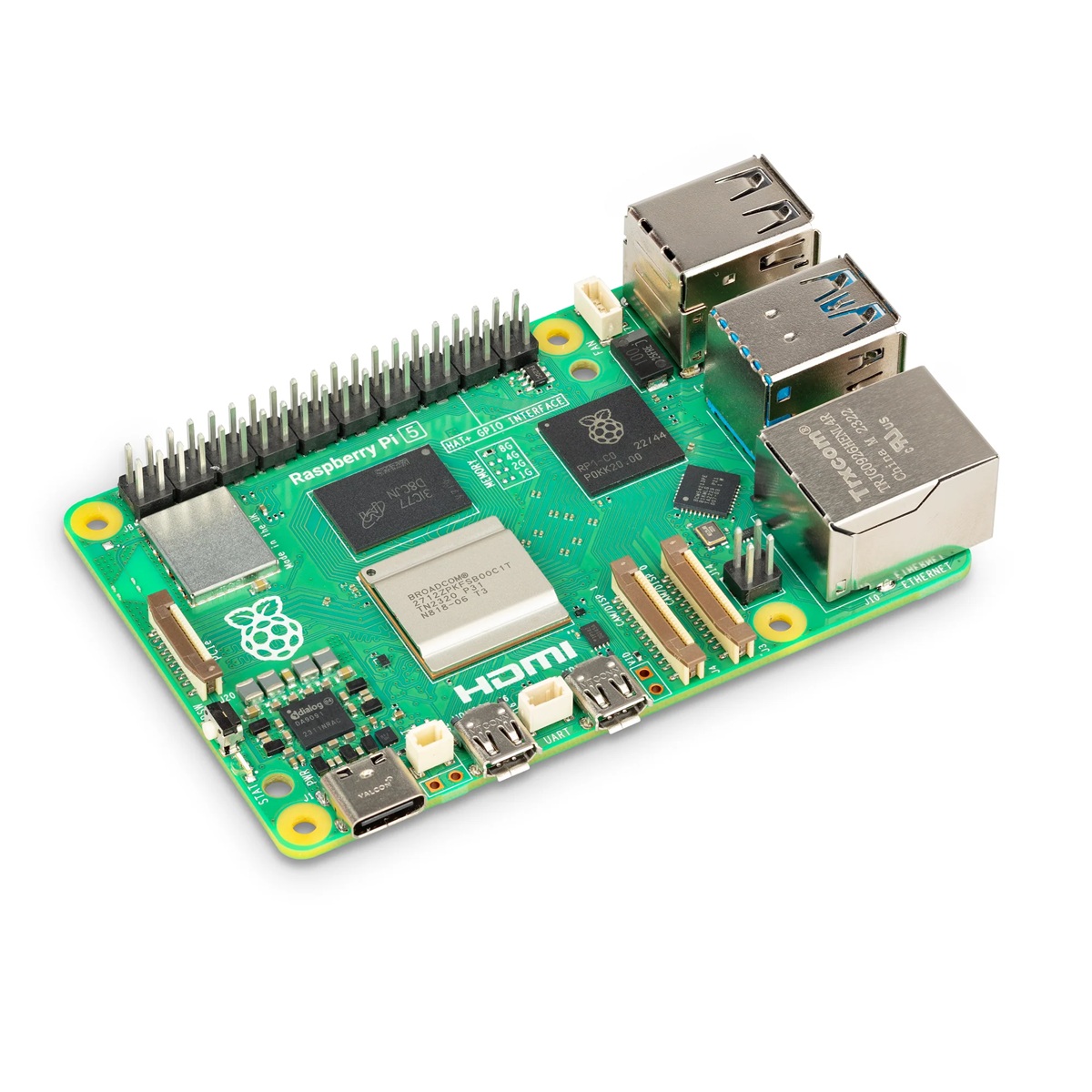

Raspberry Pi 5 Model 2GB RAM Single Board Computer

The Raspberry Pi 5 Model 2GB RAM is the latest and most powerful addition to the iconic Raspberry Pi series. With its quad-core Arm Cortex-A76 CPU running at 2.4GHz and 2GB ultra-fast LPDDR4X RAM, it is designed for enhanced performance, richer multimedia projects, and seamless wireless connectivity. Dual micro HDMI ports, advanced graphics support, and improved camera capabilities make it an ideal choice for IoT, automation, learning, and entertainment projects. Perfect for makers, educators, and industrial applications.

Features:

• High-performance Broadcom BCM2712 2.4GHz quad-core, 64-bit Arm Cortex-A76 CPU​
• 2GB LPDDR4X-4267 SDRAM for efficient multitasking​
• 800MHz VideoCore VII GPU supporting excellent graphics​
• Dual 4Kp60 Micro HDMI ports with HDR support for two displays​
• Dual-band Wi-Fi (2.4GHz and 5.0GHz) and Bluetooth 5.0/BLE for seamless connectivity​
• High-speed microSD card slot (SDR104 mode)​
• 2 × USB 3.0, 2 × USB 2.0 Ports for expanded peripheral support​
• Gigabit Ethernet with PoE+ support​
• PCIe 2.0 x1 interface and dual MIPI camera/display connectors​
• Standard 40-pin GPIO header for versatile interfacing​
• Real-Time Clock (RTC) with battery support & onboard power button​
• Ultra-compact, lightweight form factor

Specification:

• Processor: Broadcom BCM2712 2.4GHz quad-core Arm Cortex-A76 CPU
• RAM: 2GB LPDDR4X-4267 SDRAM
• Graphics: 800MHz VideoCore VII GPU
• Wireless Connectivity: Dual-band 802.11ac Wi-Fi, Bluetooth 5.0/BLE
• LAN: Gigabit Ethernet with PoE+ support
• USB Ports: 2 × USB 3.0, 2 × USB 2.0
• Display Output: Dual 4Kp60 Micro HDMI (HDR)
• Storage: MicroSD card slot (SDR104 mode)
• Camera/Display Interfaces: 2 × MIPI interfaces
• Expansion: PCIe 2.0 x1, 40-pin GPIO header
• Power: 5V/5A USB-C, PD supported
• Other Features: RTC with battery, Power button

Applications:

• Embedded systems & IoT projects​
• Robotics & automation control​
• Home media centers (Kodi, streaming)​
• Digital signage & dual-display setups​
• Educational coding platforms​
• Industrial monitoring and automation​

Package Includes:

• 1 × Raspberry Pi 5 Model 2GB RAM Board​

Useful Links:

• Raspberry Pi 5 Datasheet
