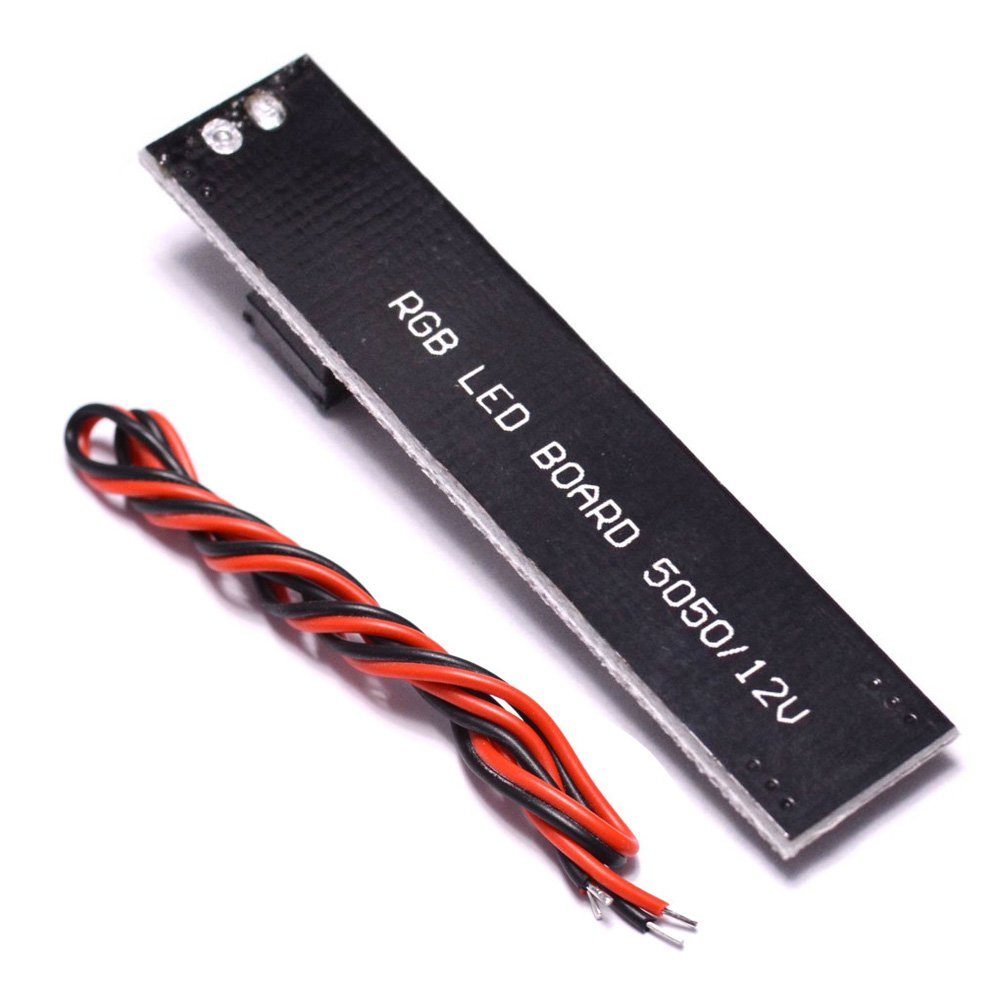

RGB 5050 12V LED Board 7 Colors with DIP Switch

This is RGB 5050 12V LED Board 7 Colors with DIP Switch. The RGB LED Board 5050 12V is designed for the Multi-rotors & FPV Quad-rotors with BEC power or any other 11-13V power source.  It comes with three RGB5050 LEDs & one code switch.

Seven colors are selectable using the code switches. This LED board gives an eye-catching effect to your multi-rotors or planes.

Features:

• The LED is suitable for light DIY on mutirotor, airplane, helicopter, RC car etc.
• This LED adopts RGB 5050 lamp beads, with DIP switch on board.
• According to toggle different switch combination, the LED can switch among

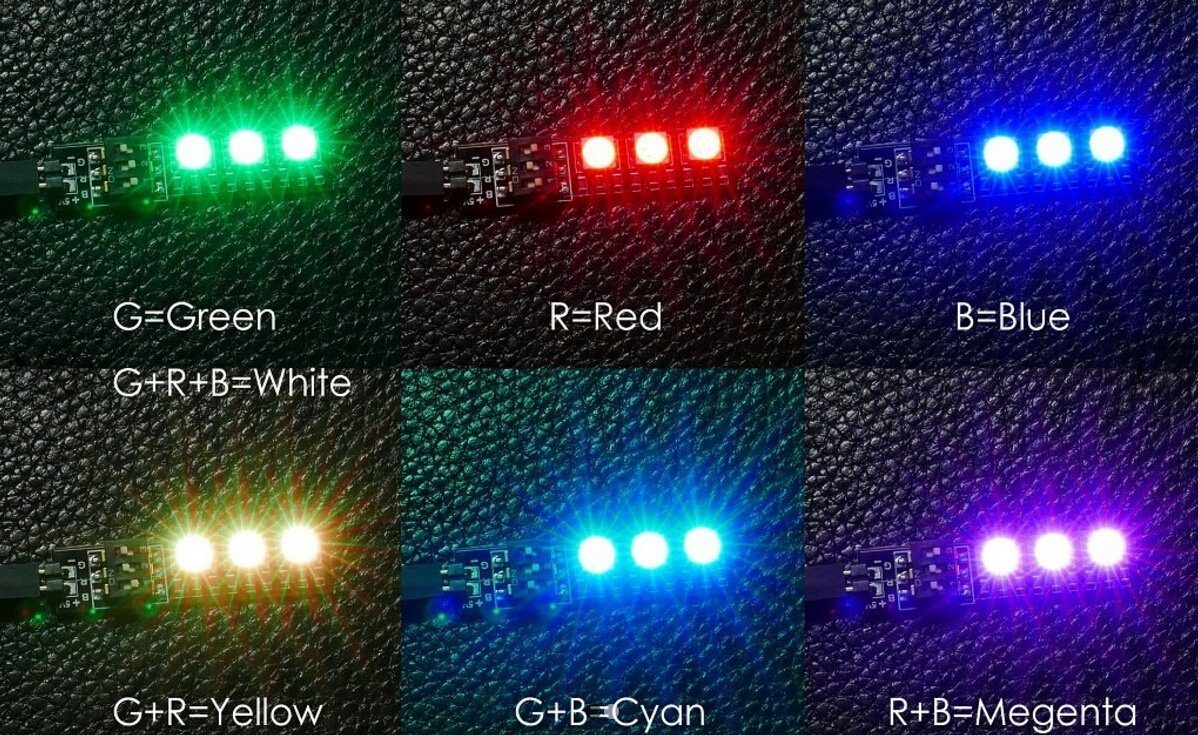

Selectable Colours & Power

•       B ON = Blue     0.35W, 0.03A
•       R ON = Red      0.35W, 0.03A
•       G ON = Green    0.35W, 0.03A
•       B + R ON = Purple   0.70W, 0.06A
•       B + G ON = Cyan    0.70W, 0.06A
•       R + G ON = Yellow    0.70W, 0.06A
•       B + R+G ON = White    1.05W, 0.09A

Specifications:

• Input Voltage (V): 11 to 13
• Size ( L x W ) mm: 47 x 10
• Weight (gm): 5

Package Includes :

• 1 x RGB 5050 12V LED Board.
• 1 x Cable 30 cm
