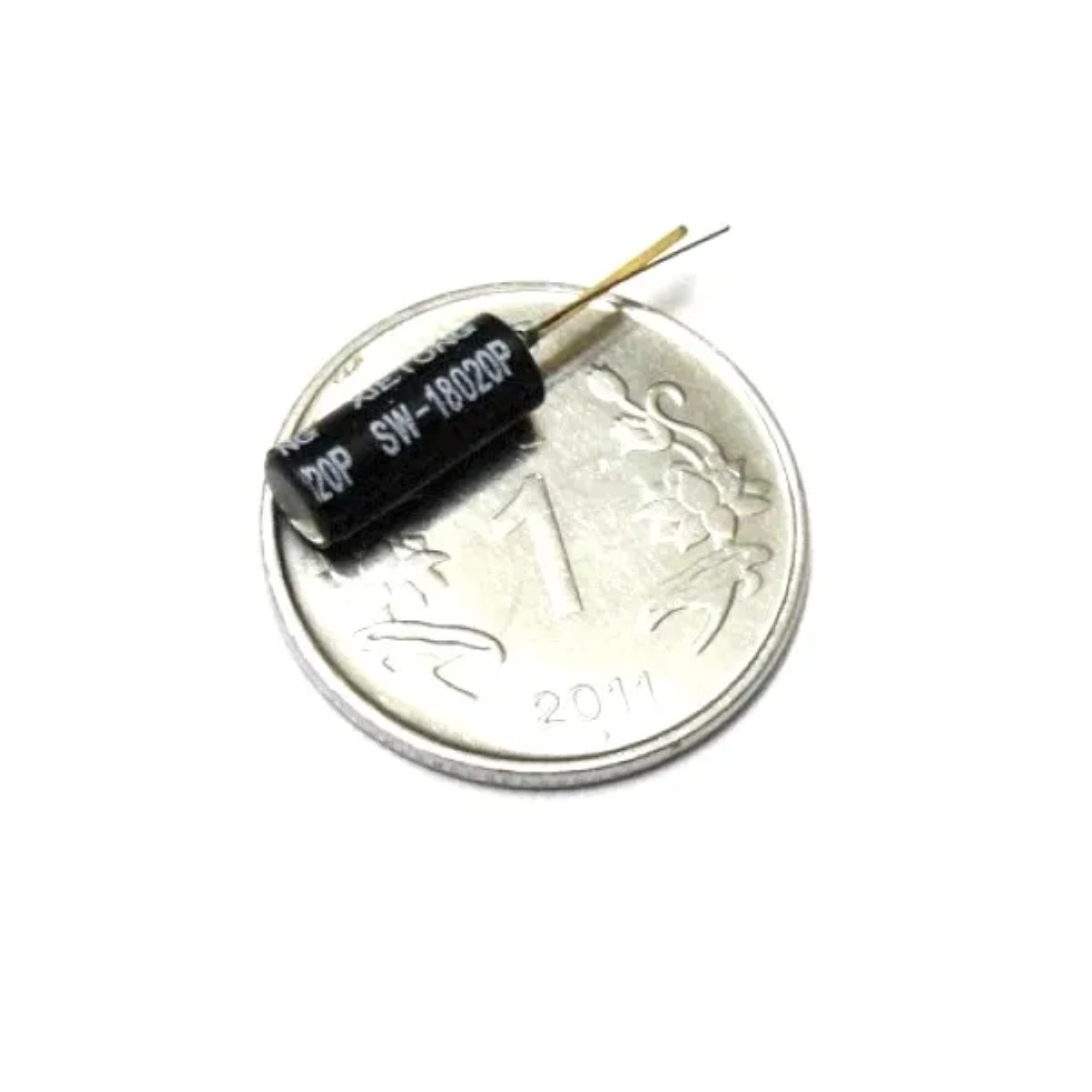

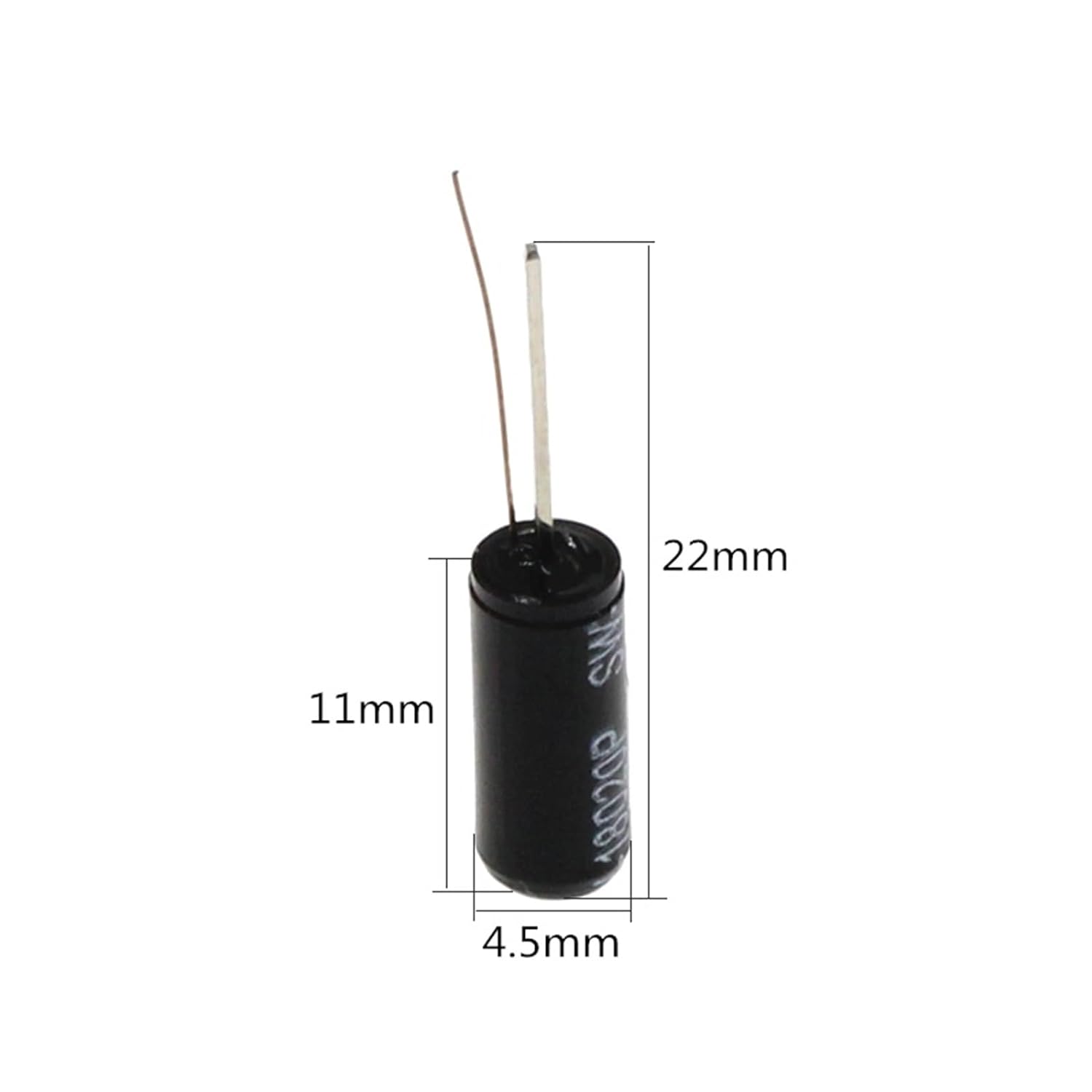

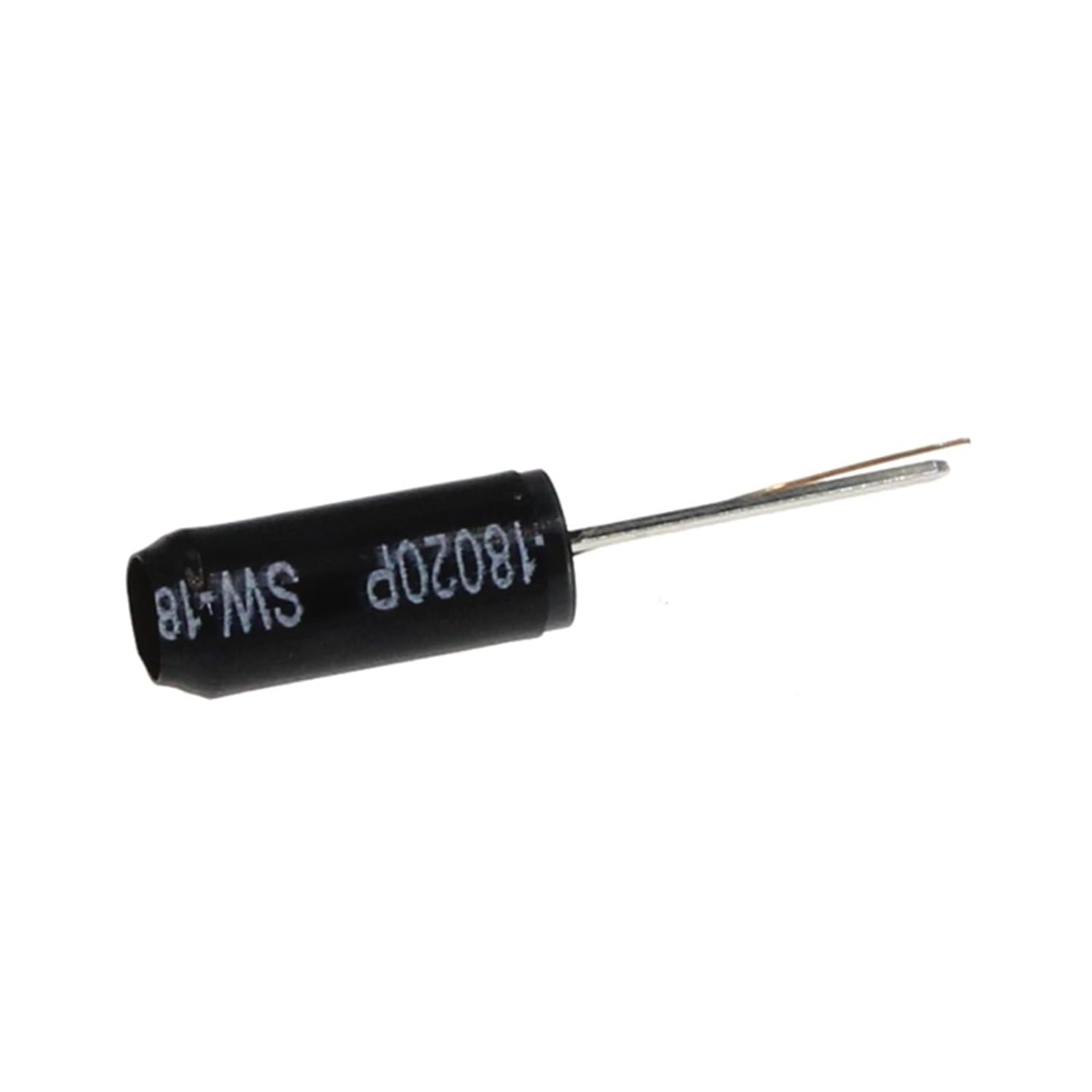

SW-18020P Vibration Sensor

SW-18020P Vibration Sensor is a really simple vibration switch, it is used commonly in electronic toys, alarms, domestic appliances, electronic devices, and smart home systems. SW-18020 series is a spring-type, Non-direction vibration-induced trigger switch, at any angle that can be triggered.

Features :

• Using the company’s high-sensitivity vibration switch, the default with SW-18020P vibration sensor.
• The comparator output, the signal clean, good waveform, driving ability, and more than 15mA
• With a fixed bolt hole, easy to install.
• The use of a wide voltage LM393 comparator.

Specifications:

• Product: SW-18020P / 15P Vibration Sensor
• Model: 18020P / 18015P
• Vibration sensor: SW-18020P
• Max voltage: 12V
• Max current: 50mA
• Conductive time: ~2ms
• Closed resistance: <10 ohm
• Open resistance: >10M ohm
• Operating temperature range: -40 to 80 C

Applications

• Anti-theft alarm
• Smart Home systems
• Automotive devices
• Home electrical devices
• Air condition / Air warm blower fall prevention protection switches
• Communication devices
• Electronic Scale
• Instruments / Toys
• Meters / Lamps
• Digital Shoes
• Sport Equipment

Package Includes:

• 1 x SW-18020P Vibration Sensor

Note : Vibration Sensor SW-18020P OR SW-18015P will be shipped randomly.
