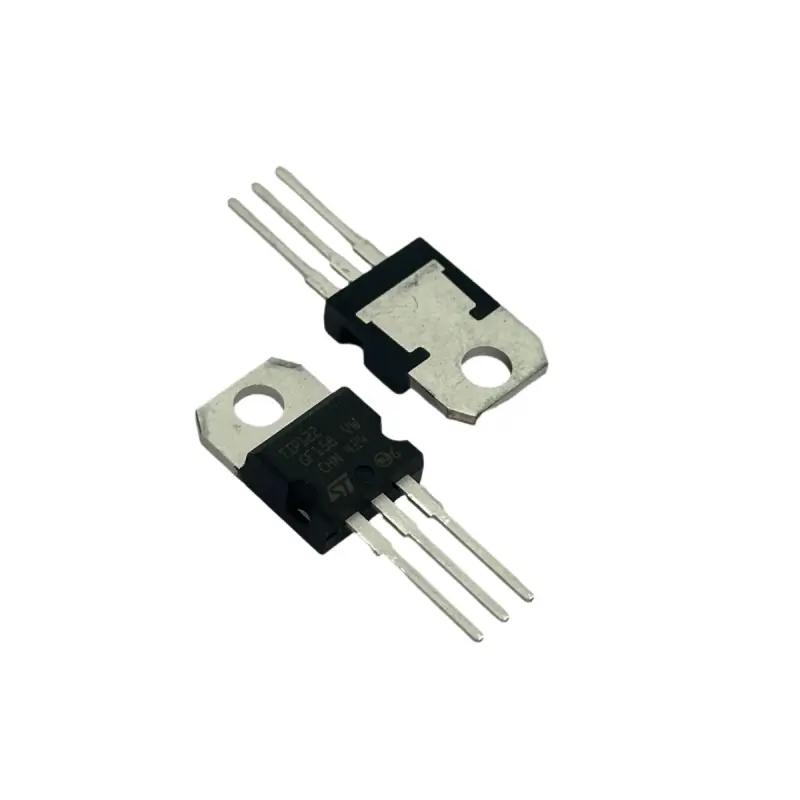

TIP122 Darlington NPN Power Transistor 100V 5A TO-220

The TIP122 Darlington NPN Power Transistor is a high-gain semiconductor component designed for electronic switching, load control, and power amplification applications. Its Darlington configuration provides high current gain, allowing a relatively small base current to control a larger collector current.

With a collector-emitter voltage rating of up to 100V and a maximum collector current rating of 5A, the TIP122 is suitable for compatible motor control circuits, relay drivers, solenoid switching, LED control, and various power electronics projects.

The TIP122 Darlington Transistor comes in a standard TO-220 through-hole package, making it convenient to install in electronic circuits, prototyping boards, and custom PCBs. It is widely used by electronics enthusiasts, engineering students, repair technicians, and embedded systems developers.

The TIP122 NPN Transistor can be controlled by microcontroller-based circuits when an appropriate base-driving circuit and current-limiting resistor are used. Its relatively high saturation voltage should be considered when designing power switching circuits.

Features:

• NPN Darlington Configuration: Provides high current gain for switching and amplification.
• High Voltage Rating: Supports collector-emitter voltages up to 100V.
• 5A Collector Current Rating: Suitable for compatible medium-power switching applications under specified operating conditions.
• High DC Current Gain: Minimum gain of 1000 under specified datasheet test conditions.
• TO-220 Package: Convenient through-hole mounting and heatsink compatibility.
• Versatile Switching Applications: Suitable for driving relays, solenoids, motors, and other compatible loads.
• Microcontroller Interface: Can be used with Arduino and other controller boards through a suitable base-drive circuit.
• Power Control Capability: Useful for general-purpose electronic switching and amplification.
• Easy Circuit Integration: Suitable for educational projects, prototyping, and electronics repair.

Specifications:

• Product Type: Darlington Power Transistor
• Part Number: TIP122
• Transistor Polarity: NPN
• Configuration: Darlington pair
• Collector-Emitter Voltage (VCEO): 100V maximum
• Collector-Base Voltage (VCBO): 100V maximum
• Emitter-Base Voltage (VEBO): 5V maximum
• Continuous Collector Current (IC): 5A maximum under specified conditions
• DC Current Gain (hFE): 1000 minimum under specified test conditions
• Collector-Emitter Saturation Voltage: Up to approximately 4V at the specified high-current test condition
• Maximum Power Dissipation: Up to 65W under specified case-temperature conditions, subject to the exact manufacturer’s datasheet
• Operating Junction Temperature: Typically up to 150°C

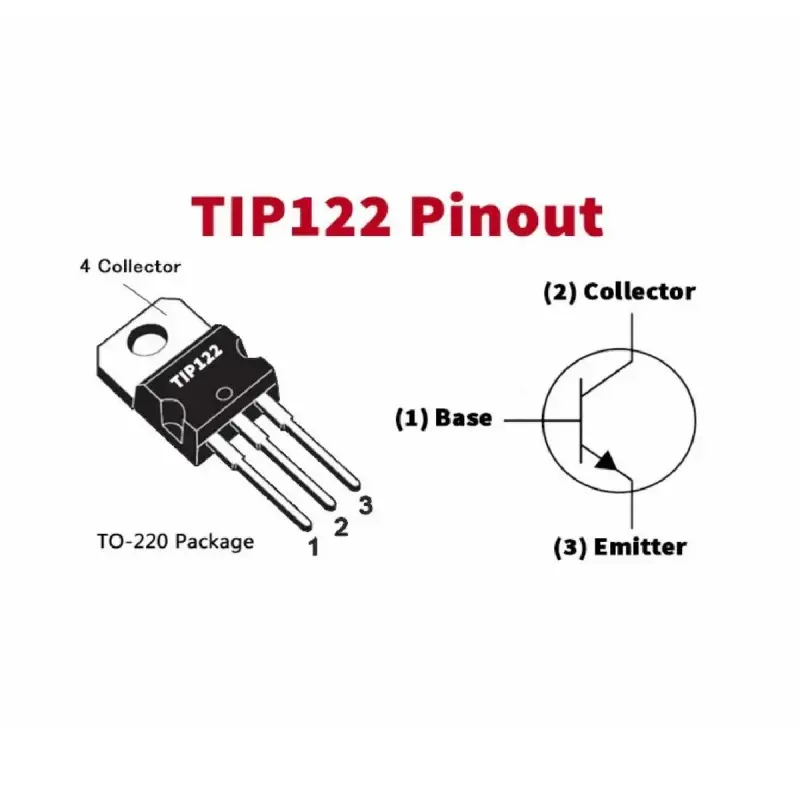

• Package Type: TO-220
• Mounting Type: Through-hole
• Number of Pins: 3
• Applications: Switching, load driving, and power amplification

Applications:

• DC motor switching and control circuits
• Relay and solenoid driver circuits
• LED switching and lighting control
• Arduino and microcontroller-based projects
• Robotics and automation systems
• Electronic load switching
• Power control and amplification circuits
• Educational electronics experiments
• DIY electronics and prototyping
• Electronic equipment repair and replacement

Package Includes:

• 1 × TIP122 Darlington NPN Power Transistor 100V 5A (TO-220 Package)
