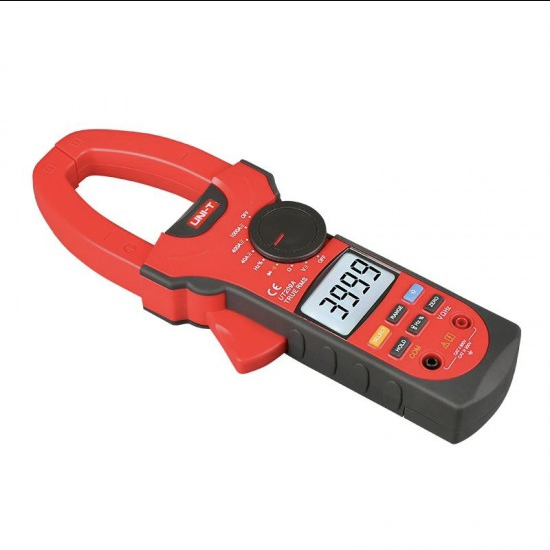

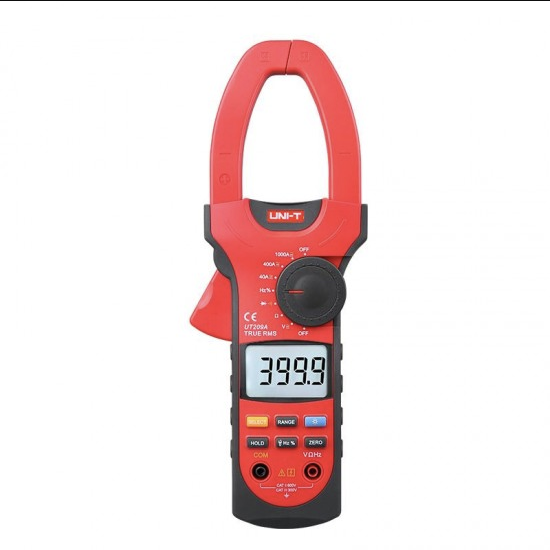

Uni-T UT209A Digital Clamp Meter 1000A 1000V True RMS
This component is currently unavailable. Enter your email below to be notified as soon as new stock arrives!
memory Technical Parameters & Datasheet Summary
SKU: Anil603Uni-T UT209A Digital Clamp Meter 1000A 1000V True RMS is a 1000A True RMS auto range digital clamp meter, which measures AC/DC current and voltage etc. The 1000A AC/DC digital clamp meter is stable, safe and reliable with low power consumption. Its full range overload protection and unique appearance design make it the ideal tool for maintenance and repair of electrical and power lines up to 1000A AC.
Features:
- 1000A AC/DC current measurement, 3/s sampling rate
- Auto/manual ranges selectable
- True RMS
- Zeroing function with relative mode
- LCD backlight
- Data hold
- Auto power off and low battery indication
- Diode; Continuity buzzer; Input Impedance for DCV
Specifications:
|
Specifications |
Range |
UT209A |
|
AC current (A) |
1000A |
±(2%+2) |
|
DC current (A) |
1000A |
±(1.5%+5) |
|
AC voltage (V) |
600V |
±(1.2%+3) |
|
DC voltage (V) |
600V |
±(0.8%+1) |
|
Resistance (Ω) |
40MΩ |
±(1%+2) |
|
Frequency (Hz) |
10MHz |
±(0.1%+3) |
|
General Characterisitics |
||
|
Power |
9V battery (6F22) |
|
|
Display |
47mm x 30mm |
|
|
Product color |
Red and grey |
|
|
Product net weight |
533g |
|
|
Product size |
286mm x 105mm x 45mm |
|
|
Standard accessories |
Battery, test leads, tool box |
|
Package Includes:
- 1 x Uni-T UT209A Digital Clamp Multimeter 1000A 1000V True RMS Ammeter Voltmeter LCD Backlight AC DC Current Clamp
