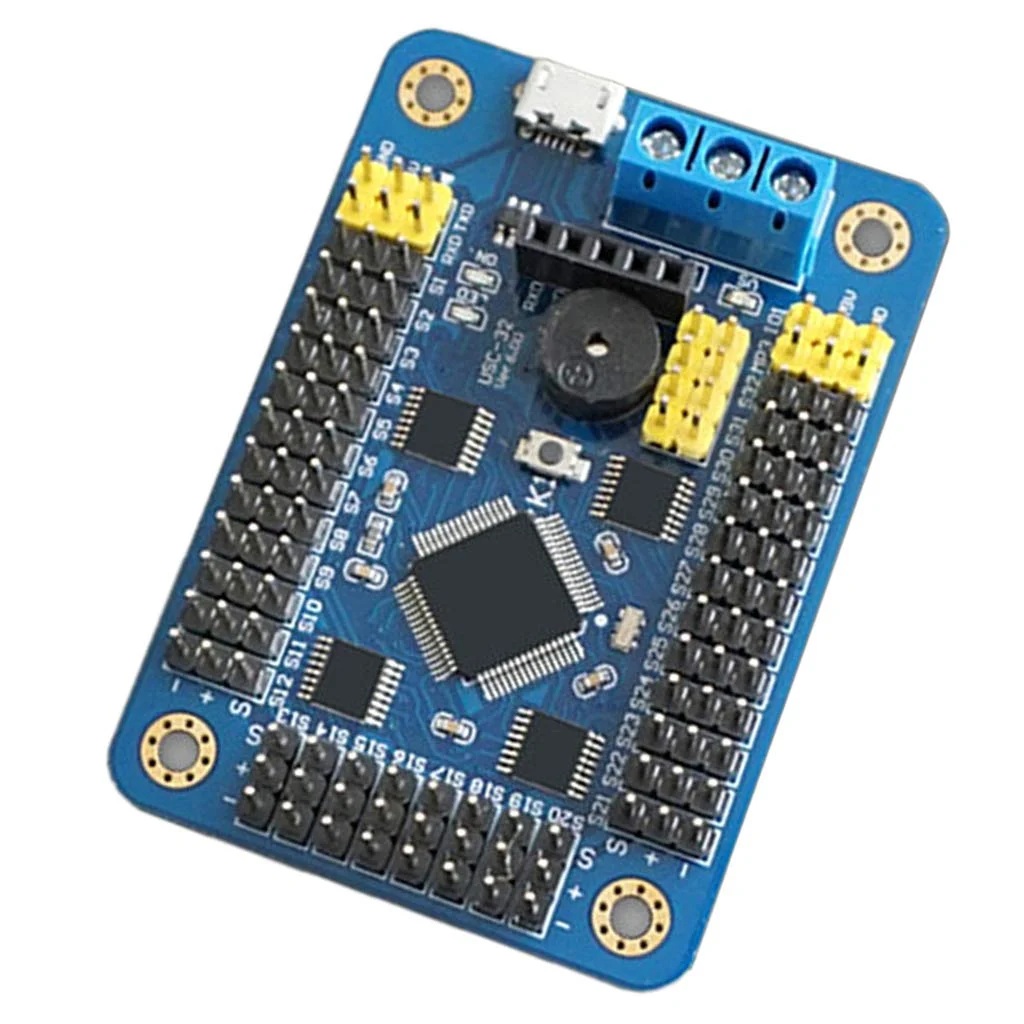

USB 32 Channel Servo Motor Controller Board with PS2 & WiFi Support, USB Cable Included

This USB 32 Channel Servo Motor Controller Board with PS2 & WIFI support online upgrade firmware perfectly now, it means that in the future if there is a new function, the user can upgrade easily, so as to ensure the user has the latest firmware.

The biggest advantage is that you can use the computer software to control the robot or control your servo steering. It can control 32 servo motors at the same time, with high precision (1 μs), and adopt the 32-bit original package CPU, internal integration USB communication interface, high stability, and precision.

The USB 32 Channel Servo Motor Controller Board is a high-performance and versatile servo controller designed for robotics, automation, and DIY projects. It can control up to 32 servo motors simultaneously with stable PWM output, ensuring smooth and precise movements. This controller supports multiple communication modes including USB, PS2 gamepad, and WiFi, giving you flexible control options for different applications.

Perfect for robotic arms, hexapods, humanoid robots, and automation systems, this controller is widely used by hobbyists, students, and professionals. The included USB cable makes it easy to connect to a computer for programming and real-time operation.

Features:

• With 16M storage, can store thousands of indications, 256 groups of actions
• Servo interface has three colors pins to different from each other
• No need to programme
• Simple indication operation
• 32 bits high efficient low consumption CPU
• Cross platform operation, can support WindowsXP, WindowsVisit, Windows7, Windows8, Windows10, Linux,FreeBsd, MAC OS, Android
• Can support bluetooth, WIFI wireless control
• Adding signal isolation to protect control board
• PS2 wireless handle
• Compatible with all supporting serial port single chipUsing Micro USB interface

Specifications:

• Model: 32 Channel Servo Controller Board
• Rated Voltage (V): 4.2 to 7.2
• CPU: 32 Bits
• Baud rate (USB): (Bluetooth, 115200, UART):9600
• Mode to choose: 4 types
• Max action groups: 256 groups
• Communication: UART

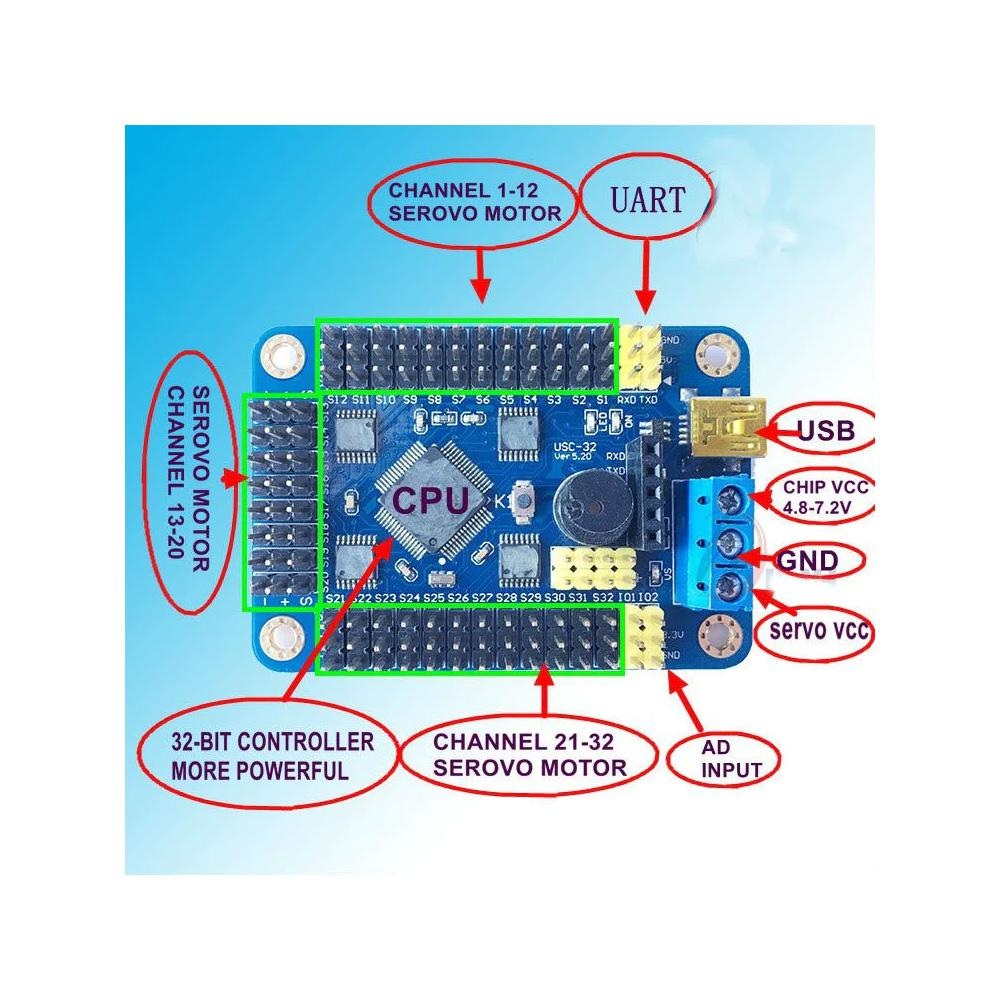

Pin Description:

• VCC: Servo power input VCC, can be connected to the 4.2V~7.2V power supply, plugged into a power supply for the anode, please.
• GND: The overall GND of the servo controller can be connected to servo power GND of CPU power GND, plugged into a power supply for the cathode, please.
• 5V: Servo controller CPU power input, Voltage range: 5V – 8.5v.
• USB: Servo controller CPU power input and data communication port.

NOTE: 5V interface and USB interface cannot be access the same time, Choose only one at a time.

Package Includes:

• 1 x USB 32Ch Servo Motor Controller Board
• 1 x USB to Micro USB Cable
