USB Charger Doctor – Voltage and Ammeter Display

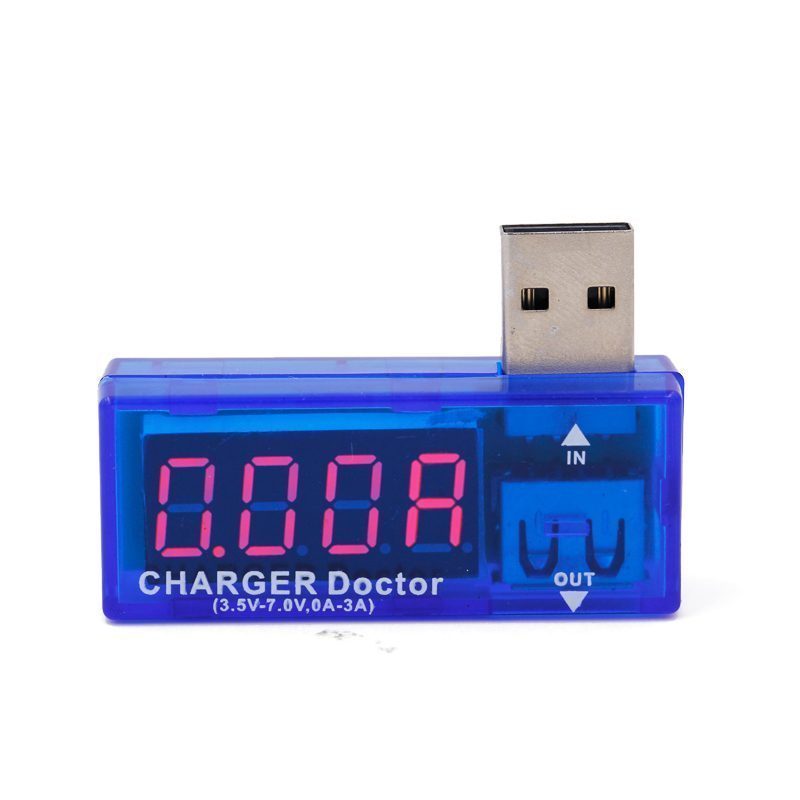

Use the USB Charger Doctor – Voltage and Ammeter Display to measure the voltage and current output for any USB port and project. This blue plastic dongle plugs between a USB device, and passes the data lines through. There’s a 0.05 ohm resistor in line with the power pin that is used to measure current draw. The Doctor’s digital display alternately displays the USB Voltage and the current draw.

You can use this device from 3.5-7VDC input voltage (although most USB devices tend to hover around 4.75 to 5.25) and up to 3A of current. It flips between voltage and current readouts every 3 seconds or so. It’s a very handy tool for testing USB devices, checking load levels and debugging battery chargers and boost converters.

Features:

• It can measure the USB-powered devices
• Easy to use and practical.
• Compact and easy to carry, no additional power supply, plug and play.
• It can easily measure the output voltage of the USB port and the device operating current or load voltage
• Detect any USB charger such as PC USB, home charger, car charger.
• Wide range of applications, any phone, any electronic product, Easy to use.
• suitable for factories, laboratories and personal use.

Specifications:

• Operating Voltage(VDC): 3.5 to 7
• Maximum Current(A): 3
• Operating Current(mA): 20mA
• Measurement Accuracy: 1%
• Meter Voltage Drop: 200mV
• Display Method: Current Voltage is alternately shown
• Color: Blue
• Material: ABS

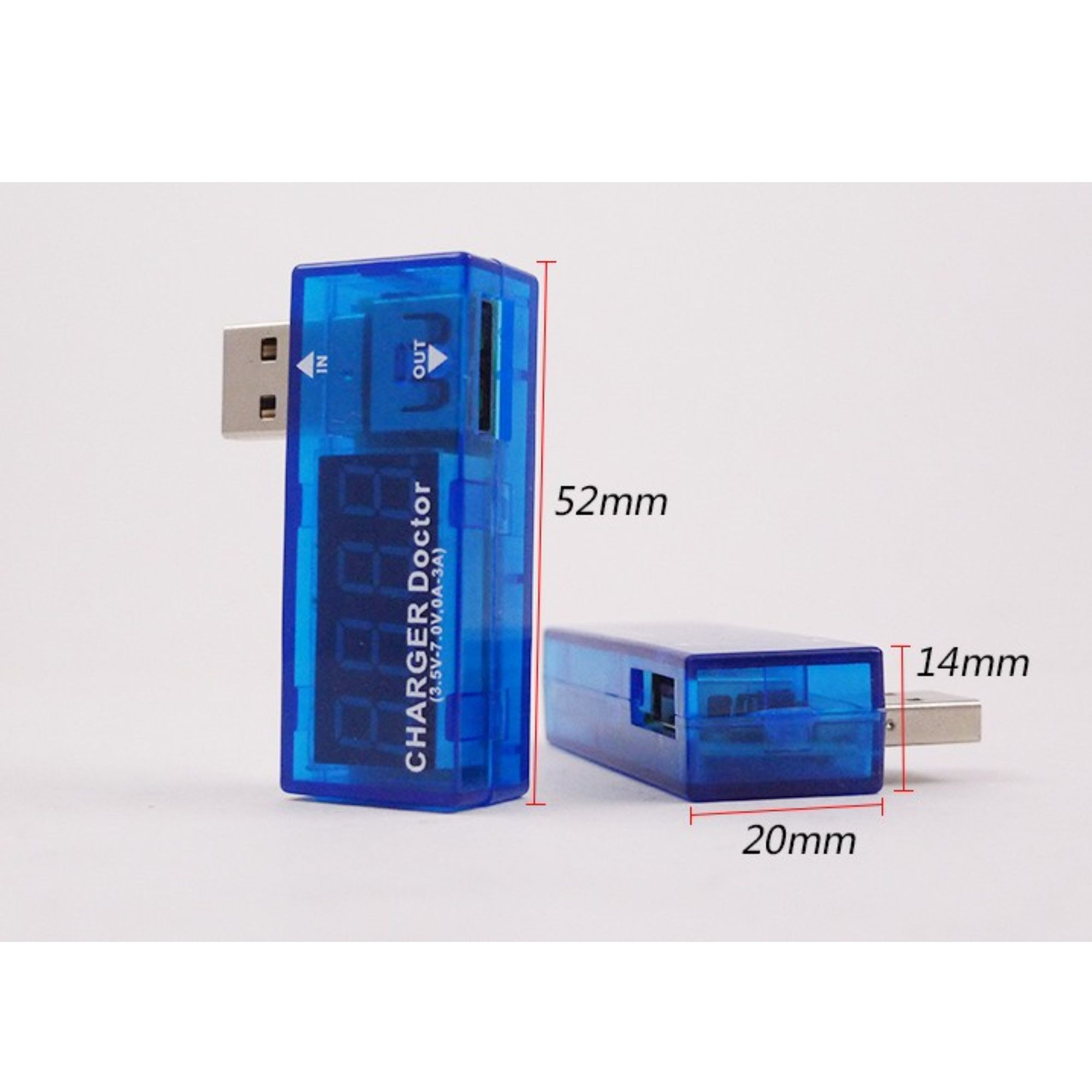

• Length (mm): 52
• Width (mm): 20
• Height (mm): 15
• Weight (gm): 16

Package Includes:

• 1 x USB Charger Doctor (Voltmeter Ammeter)
