XH-M404 DC 4-40V 8A Voltage Regulator Module Digital PWM Adjustable DC-DC Step Down Voltage Regulator DC XL4016E1

XH-M404 DC 4-40V 8A Voltage Regulator Module Digital PWM Adjustable DC-DC Step Down Voltage Regulator DC XL4016E1 is rated for a maximum power of 200W. The output current for the module can be increased to 8A with the addition of an external fan onto the heatsinks to cool the IC.

Features:

• Adjustment method: first correct input power (between 4-40V) then multimeter to monitor the output voltage and adjust potentiometer (usually clockwise turn boost, buck turn counterclockwise),
• Input: IN+ input positive IN- input negative
• Output: OUT+ output positive OUT- output negative
• Static power consumption is only about 6mA.
• Connection: Welding, plus pin can be directly soldered after the PCB.
• Short circuit protection: current limiting, thermal protection, self-recovery.
• Non-isolated step-down (BUCK) switching regulator.
• Short circuit protection: Current limiting, self-recovery
• Potentiometer adjustment direction is as Clockwise (increase) and Anti-clockwise (decrease)
• Non-synchronous rectification

Specifications:

• Input Voltage (V): 4 to 40VDC
• Output Voltage (V): 1.25 to 36VDC
• Max Current (A): 8
• Maximum Power (W): 200
• Efficiency: 0.94
• Switching Frequency (kHz): 180
• Length (mm): 63
• Width (mm): 46
• Height (mm): 25
• Weight (gm): 45

Package Includes:

• 1 x XH-M404 DC 4-40V 8A Voltage Regulator Module Digital PWM Adjustable DC-DC Step Down Voltage Regulator DC XL4016E1

Note:

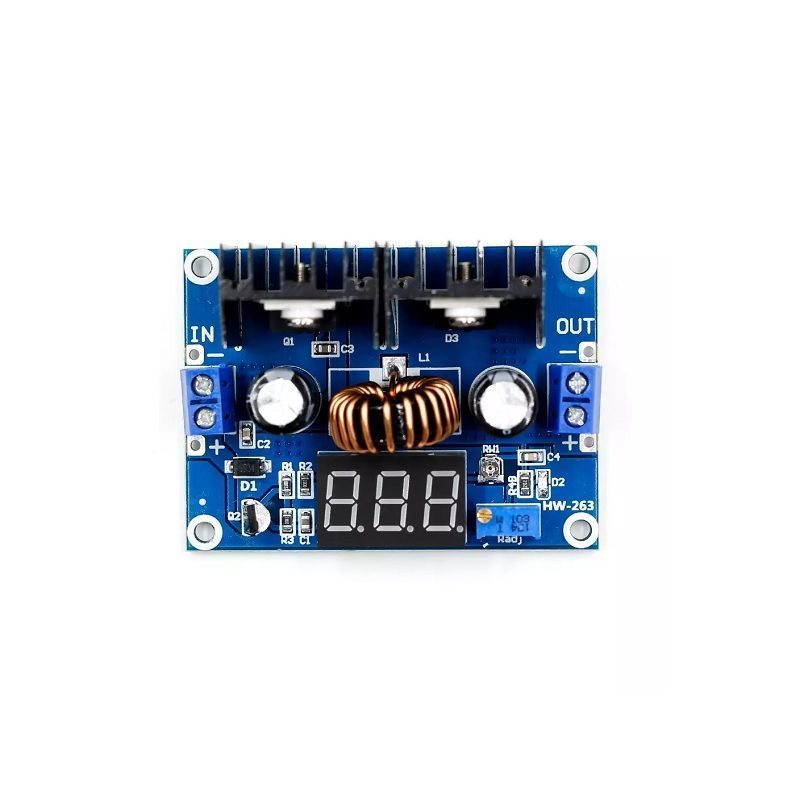

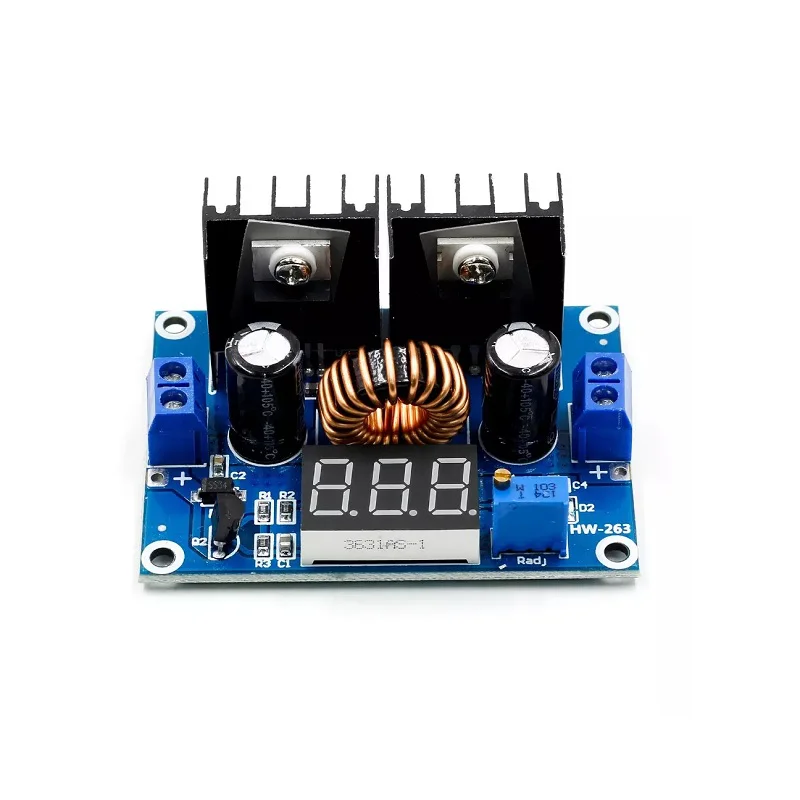

• This Product is available in two different variants (XH-M404 and HW-263) with the same working we will ship it randomly.
