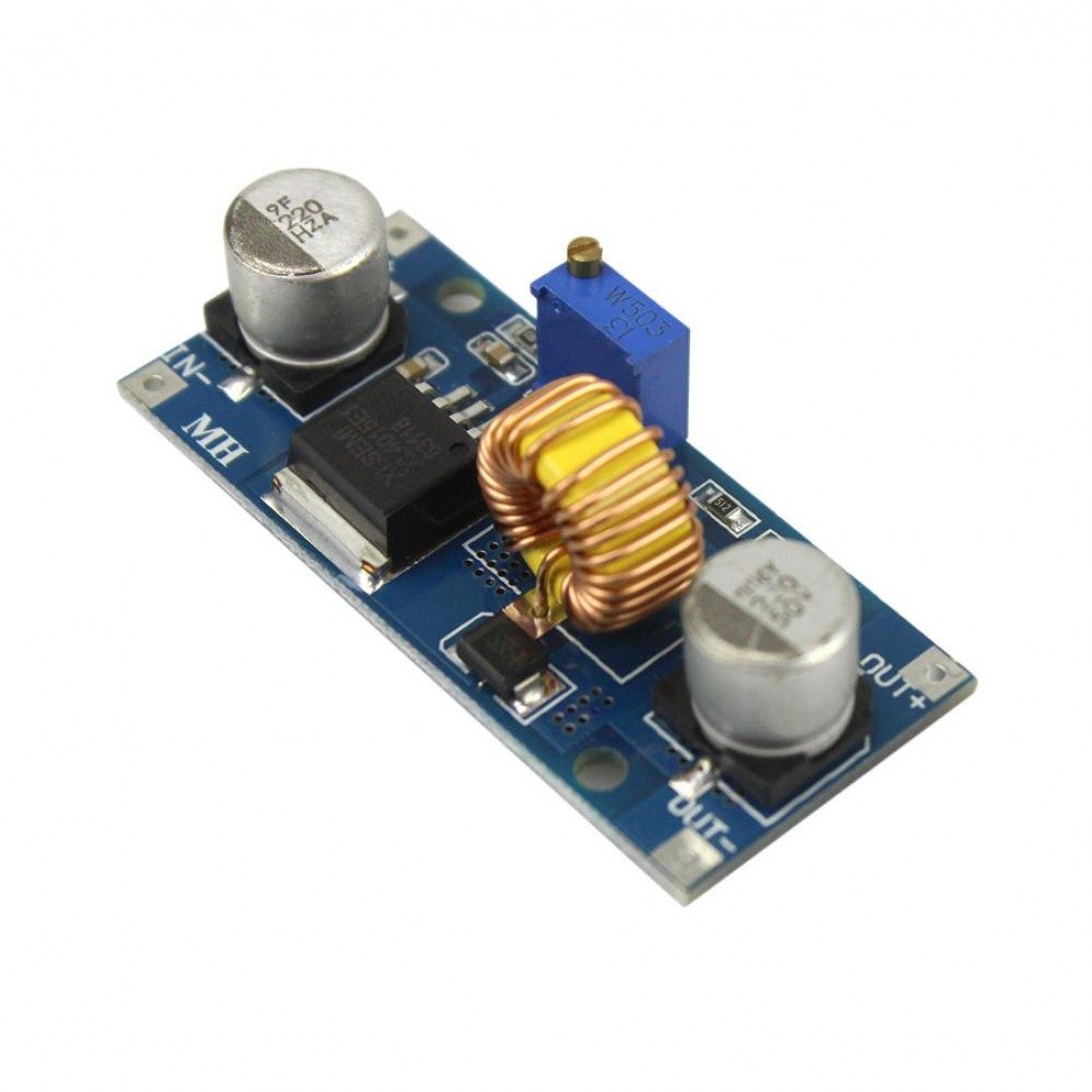

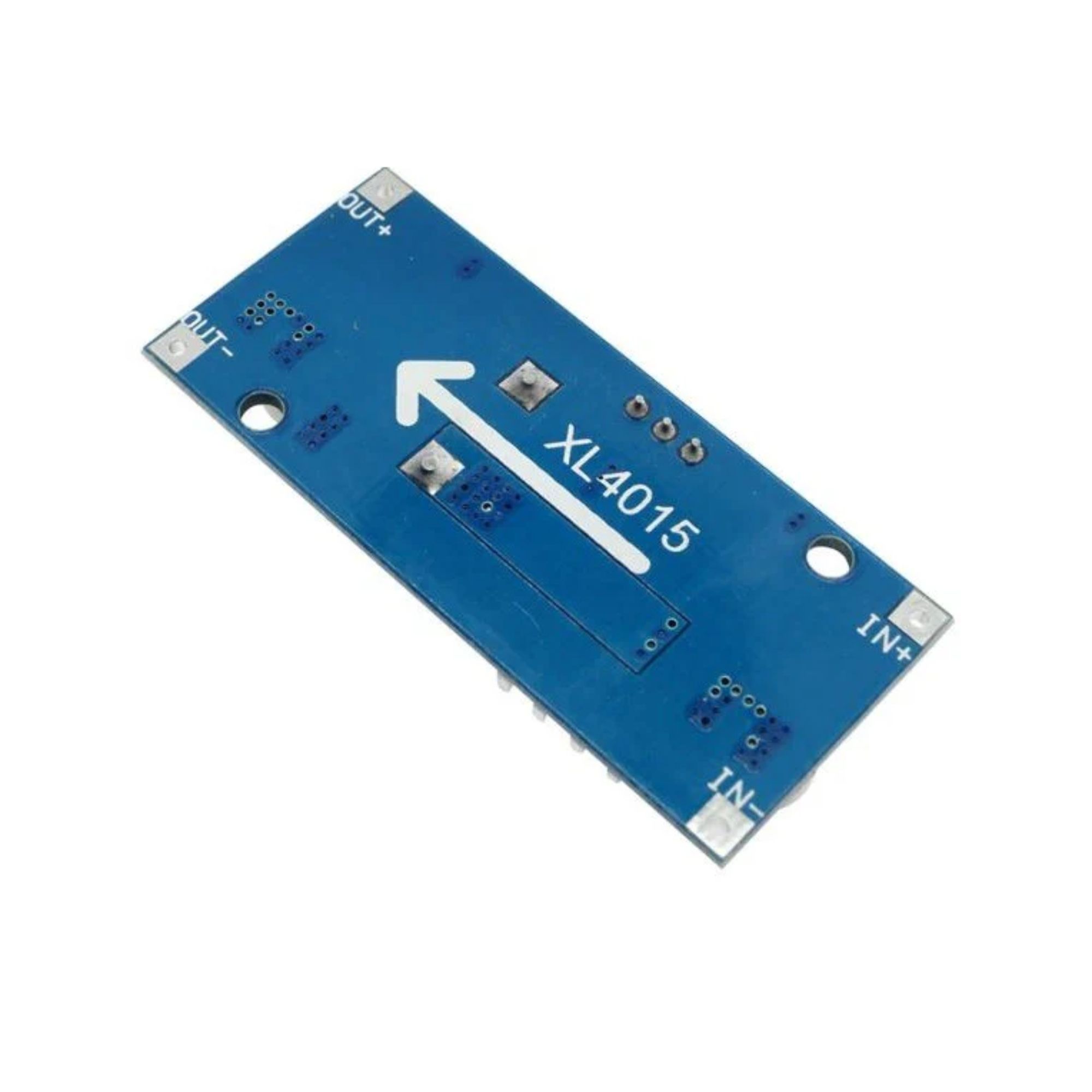

XL4015 5A DC-DC Step Down Adjustable Buck Converter Module with Heatsink

The XL4015 5A DC-DC Step Down Adjustable Buck Converter Module with Heatsink is a 180 KHz fixed frequency PWM buck (step-down) DC/DC module, capable of driving a 0-5A (Max) Adjustable load with high efficiency, low ripple and excellent line and load regulation. Use as a step-down modules with over-current protection capabilities.

The DC/DC buck module has applications where the input voltage is higher than the output voltage, such as battery, power transformer, DIY adjustable regulated power supply, LCD Monitor and LCD TV portable instrument power supply telecom/networking equipment, 24V vehicle notebook power supply, industrial equipment buck.

Features :

• High efficiency up to 96%
• The built-in thermal shutdown function
• Built-in current limit function
• In-Built output short protection function
• Input reverse polarity protection: None (if required, the high current diode in series with the input).
• Over temperature protection: Yes (automatic shutdown output ultra temperature)

Specifications:

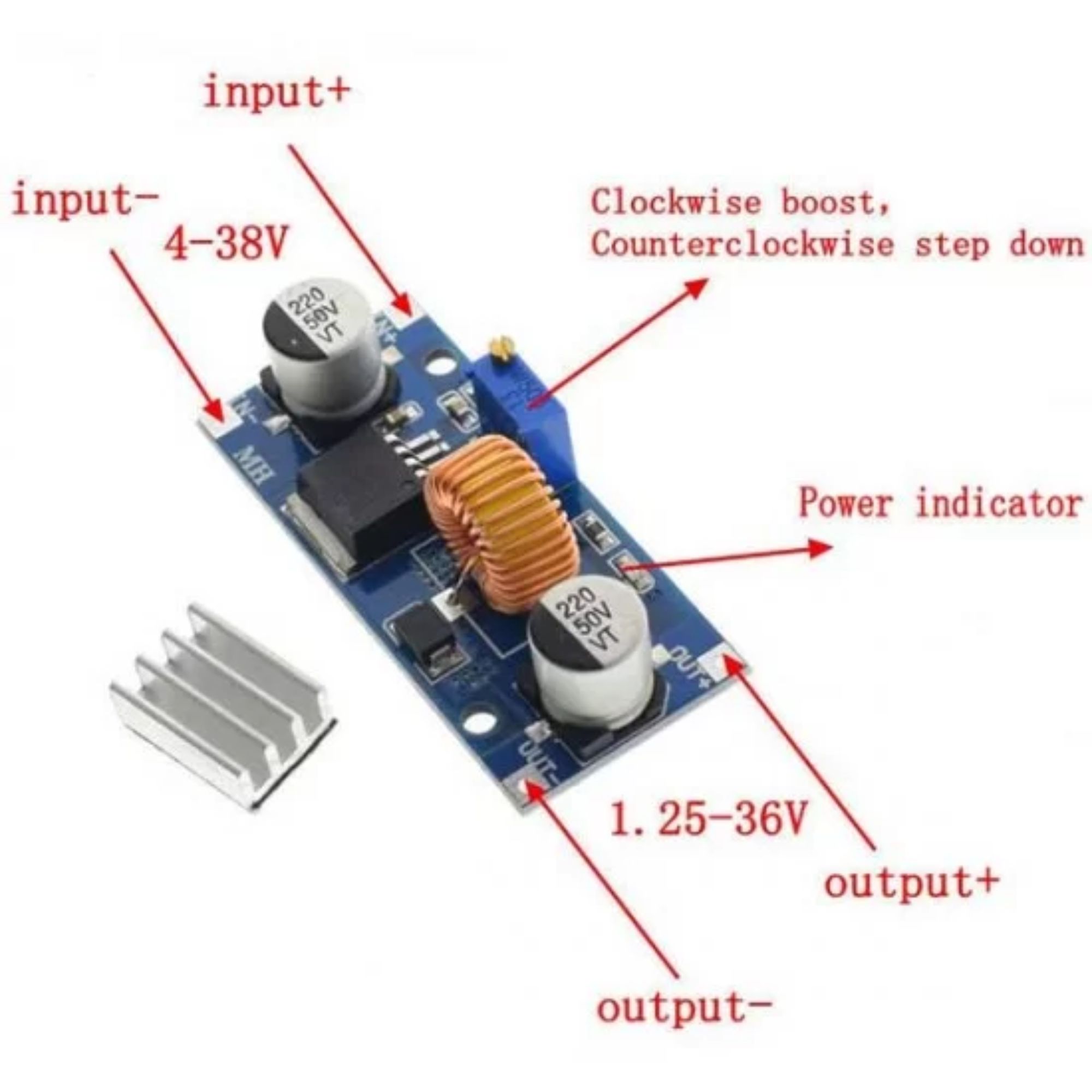

• Input Voltage (V): 4 to 38
• Output Voltage(V): 1.25 to 36
• Output Current(A): 0 to 5
• Output Power(Watt): 75
• Working frequency: 180KHz
• Length (mm): 54
• Width (mm): 24
• Height (mm): 12
• Weight (gm): 16
• Heatsink Dimensions(LxWxH): 16mm x 11mm x 5mm

Package Includes :

• 1 x XL4015 5A DC-DC Step Down Adjustable Power Supply Buck Module
• 1 x Aluminium Heat Sink
