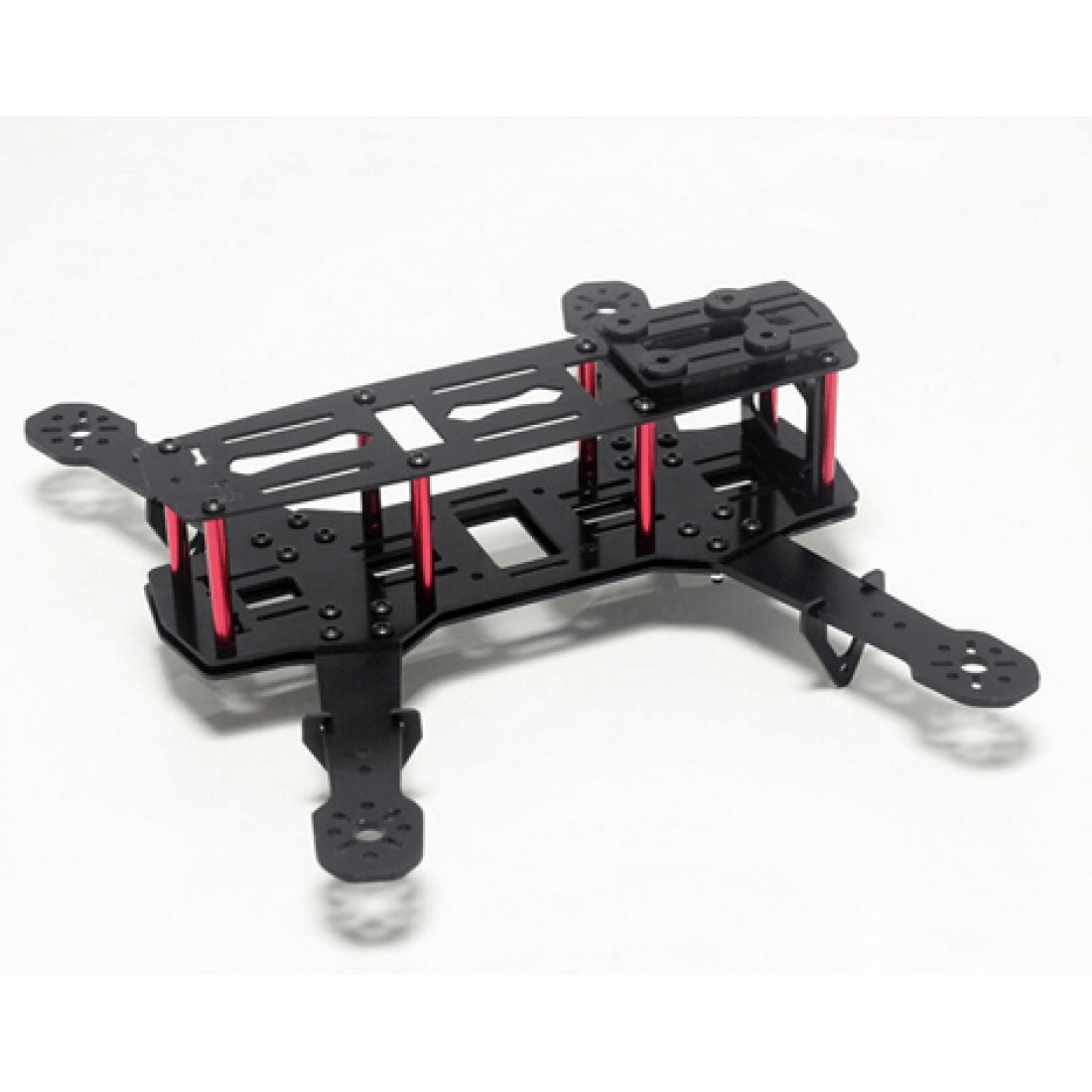

ZMR250 / QAV250 250 mm Glass Fiber Mini Quadcopter Frame

ZMR250 / QAV250 250 mm Glass Fiber Mini Quadcopter Frame is a low weight Mini Sport FPV Quadcopter frame. It is designed to make use of standard sized electronic equipment commonly used in RC.

This allows the quadcopter to compete with larger quadcopters, while being smaller and agile !

This QAV250 Quadcopter Frame is made from Carbon Fiber which makes it tough and durable. The carbon fiber arms of thickness 3mm which ensure no more arm breakage at the motor mounts on a hard landing. The arms have dampers at the end, which protects motors during the crash. Working on Mini Quadcopters requires a lot of soldering, wire shortening and creation of power distribution systems.

The carbon fiber is mostly accepted material for frame designing because of its high stiffness to weight ratio. The Carbon Fiber Frames are very rigid and improve stability and flight performance.

The frame is lightweight and possesses thick arms, so as to give them good mechanical strength. The mini-size design of this quadcopter frame makes it aerodynamically efficient which will require lower throttle to hover. The design allows the whole take-off weight to be controlled at about 500-600 grams!!!! Great!!!!!

The frame has a wheelbase of 250mm and weighs around 160gm. It features a very large area on the mainframe for mounting cameras and other accessories. This frame supports 37mm board cams as well as cams in cases with mounting bracket.

It’s longer top and bottom plate allow easy mounting of HD cameras and batteries. so more spacious room for all kinds of electronics!!!

The Q250 Carbon Fiber Quadcopter Frame equips anodized alloy spacers. The arms of this carbon fiber frame feature multiple motor mounting holes so as to fit a variety of motors. It equips a vibration-free mounting bracket for housing the camera on the frame.

Features:

• Light weight, small size, long lifetime
• Easy modification
• 1.5mm carbon fiber fuselage
• Machine arm 3.0mm,reducing vibration
• AV shockproof ball
• FPV installed by edition
• For 250 C250
• Size: 220mm diagonally, 175mm wide, 130mm long motor-to-motor; about 1/2 the size of a regular quadcopter

Specifications:

• Model: QAV250
• Material: Glass Fiber
• Wheelbase (mm): 250
• Colour: Black
• Weight (gm): 175
• Arm Size (mm): 220 x 65 (LxW)
• Suitable Propeller: 5”
• Fasteners: Stainless Steel & Red Metal 8/8

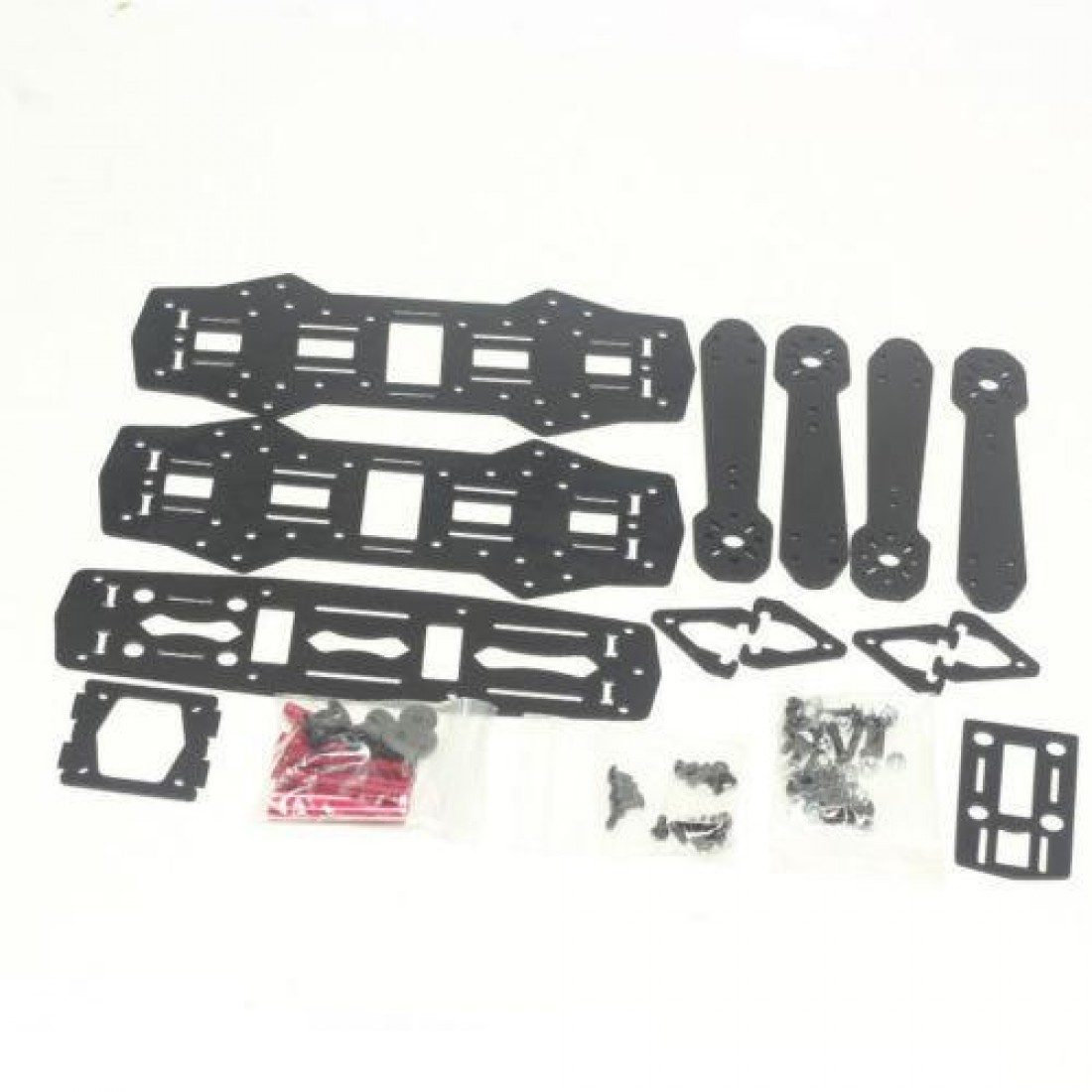

Package Includes:

• 1 x QAV250 Quadcopter Frame kit
