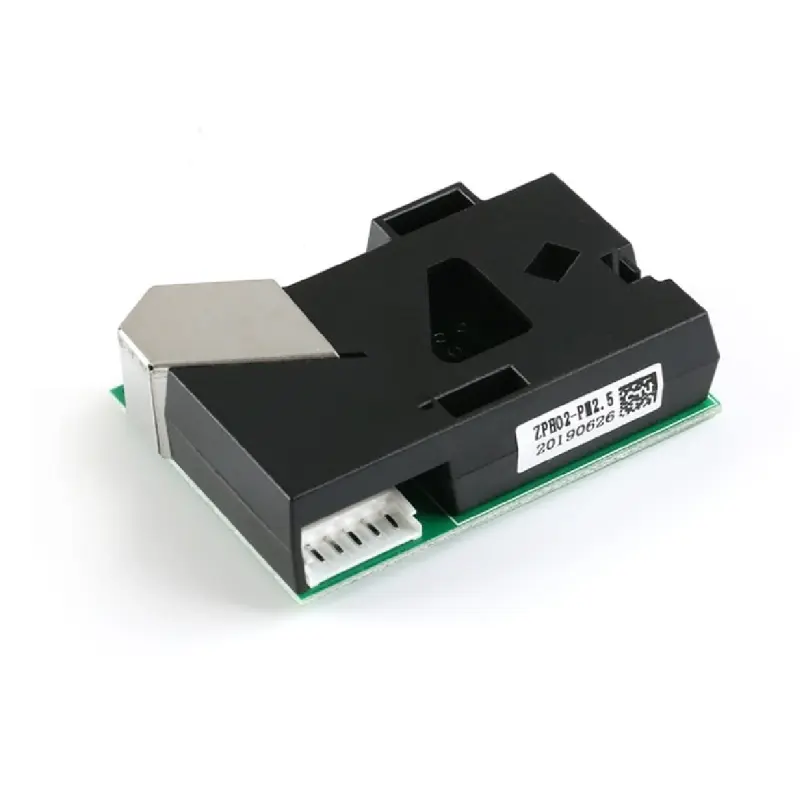

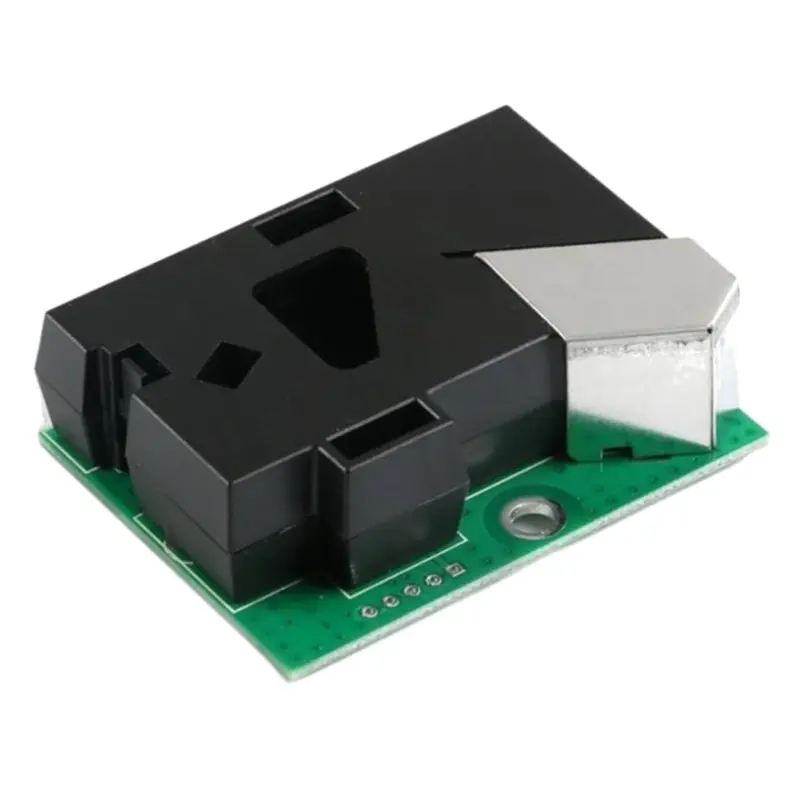

ZPH02 PM2.5 Air Quality Dust Particle Sensor Module

The ZPH02 PM2.5 Air Quality Dust Particle Sensor Module is designed to detect airborne particles and provide an output signal for air-quality monitoring systems. Using optical particle-detection technology, it senses suspended particles and helps electronic systems monitor changes in dust concentration.

With a 5V DC operating supply, a five-pin connector and digital pulse output, the ZPH02 PM2.5 sensor is suitable for integration into compatible air-quality monitoring equipment, air purifiers, HVAC systems and embedded electronics projects.

Its compact design and built-in air-intake mechanism make it useful for continuous air-monitoring applications and environmental sensing experiments.

Features:

• PM2.5 Particle Detection: Detects airborne particles with diameters of approximately 1 µm and above.
• Optical Detection Technology: Uses particle-detection technology to monitor airborne dust.
• 5V DC Operation: Designed for a regulated 5V DC supply.
• Digital PWM Output: Provides a pulse-based output representing particle concentration.
• Five-Pin Interface: EH2.54-5P connector for electrical integration.
• Built-In Air Intake: Integrated heater-assisted airflow helps draw ambient air through the sensing chamber.
• Continuous Monitoring: Suitable for systems that periodically sample changes in airborne particle levels.
• Compact Design: Suitable for integration into air-quality equipment and embedded projects.

Specifications:

• Model: ZPH02
• Product Type: Air Quality / Dust Particle Sensor
• Measured Parameter: Suspended airborne particles
• Particle Detection Capability: Approximately 1 µm and larger
• Operating Voltage: 5V ± 0.2V DC
• Output Type: PWM / digital pulse output
• Output Signal Voltage: Approximately 5V
• Operating Current: Up to 90mA for the basic particle-sensor specification
• Warm-Up Time: allow up to 3–5 minutes for stable readings
• Connector: EH2.54-5P, 5-pin interface

Applications:

• Air-quality monitoring systems
• Air purifiers and fresh-air systems
• HVAC and air-conditioning equipment
• Indoor environmental monitoring
• Portable dust-monitoring instruments
• Smoke and airborne-particle detection projects
• Arduino and compatible embedded-system projects
• IoT-based environmental monitoring
• Electronics research and development
• Air-quality sensor prototyping

Package Includes:

• 1 × ZPH02 PM2.5 Air Quality Dust Particle Sensor Module
