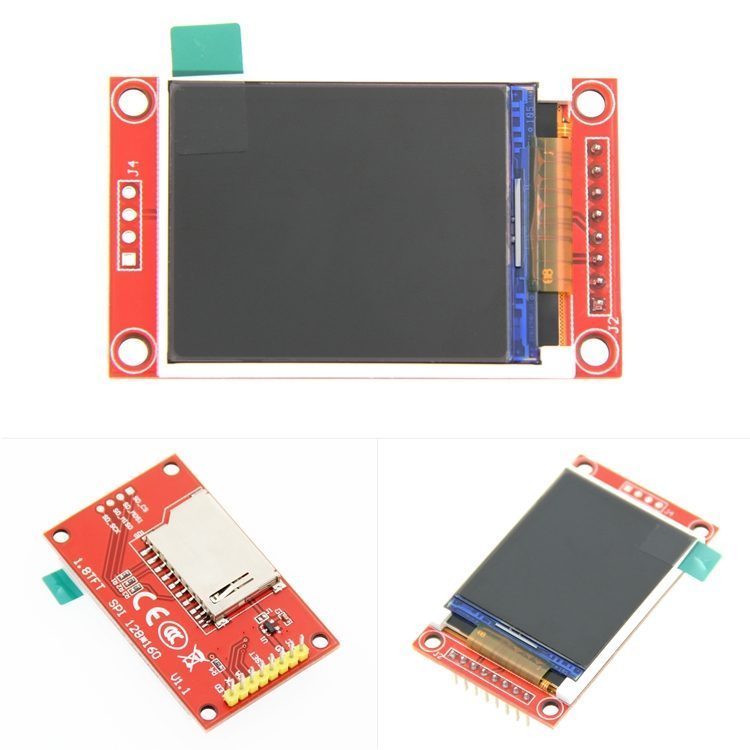

1.8 Inch TFT LCD Module SPI Interface 128 x 160 with 4 IO

1.8 Inch TFT LCD Module SPI Interface 128 x 160 with 4 IO uses 4-wire SPI to communicate and has its own pixel-addressable frame buffer, it can be used with every kind of microcontroller. Even a very small one with low memory and few pins available!

The 1.8″ display has 128×160 colour pixels. Unlike the low cost “Nokia 6110” and similar LCD displays, which are CSTN type and thus have poor colour and slow refresh, this display is a true TFT! The TFT driver (ST7735) can display full 18-bit colour (262,144 shades!).

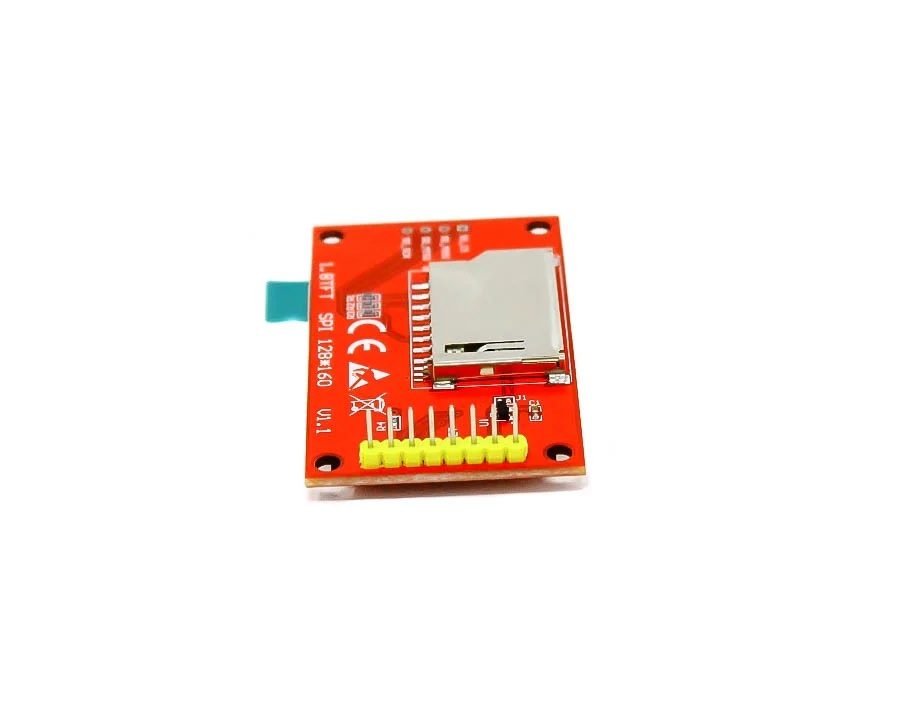

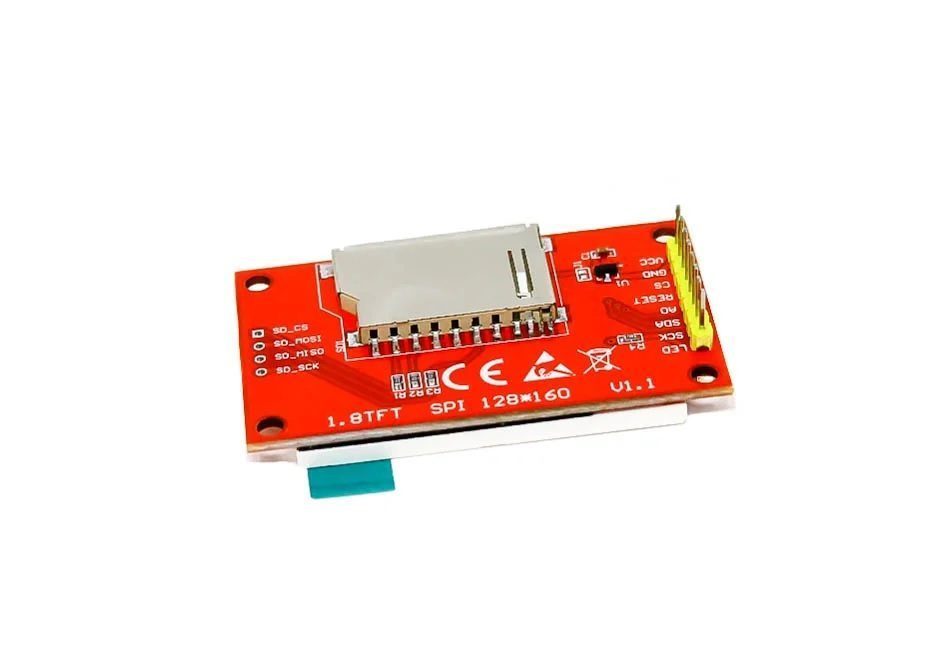

The breakout has the TFT display soldered on (it uses a delicate flex-circuit connector) as well as an ultra-low-dropout 3.3V regulator and a 3/5V level shifter so you can use it with 3.3V or 5V power and logic. We also had a little space so we placed a microSD card holder so you can easily load full-colour bitmaps from a FAT16/FAT32 formatted microSD card.

Features :

• 1.8-inch serial SPI colour display module
• Support analogue SPI and hardware SPI
• The LCD has a wide viewing angle, the contrast is also very suitable.
• Easy to expand the experiment with SD card slot

Specifications:

• Screen Size : 1.8(inch)
• Type: TFT
• Driver IC: ST7735
• Resolution: 128*160 (Pixel)
• Module Interface: 4-wire SPI interface
• Active Area (AA area): 28.03×35.04(mm)
• Module PCB Size: 34.5×58.0(mm)
• Operating Temperature: -20℃~60℃
• Storage Temperature: -30℃~70℃
• VCC power voltage: 3.3V~5V
• Logic IO port voltage: 3.3V(TTL)
• Weight: 17 (g)

Package includes:

• 1 x 1.8 Inch TFT LCD Module 128 x 160 with 4 IO

Useful Links:

• 1.8 Inch TFT LCD Module Library
