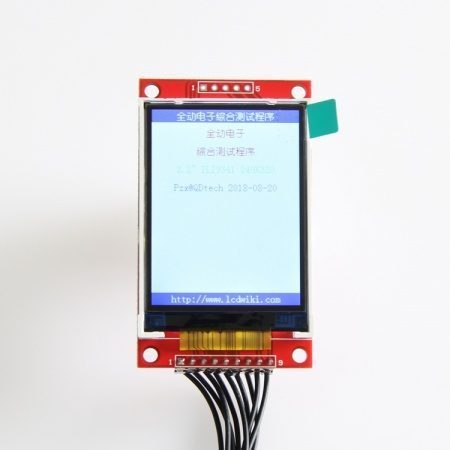

2.2 inch 240×320 LCD color screen TFT SPI serial interface module compatible with 5110

2.2 inch 240×320 LCD color screen TFT SPI serial interface module is compatible with 5110 display and works on ILI9341 driver. ILI9341 is a 262144-color single-chip SOC driver for a TFT liquid crystal display with a resolution of 240×320 dots (RGB), comprising a 720-channel source driver, a 320-channel gate driver, 172800 bytes GRAM for graphic display data of 240×320 dots (RGB), and power supply circuit.

ILI9341 supports parallel 8-/9-/16-/18-bit data bus MCU interface, 6-/16-/18-bit data bus RGB interface, and 3-/4-line serial peripheral interface (SPI). The moving picture area can be specified in internal GRAM by window address function. The specified window area can be updated selectively so that moving pictures can be displayed simultaneously independent of the still picture area.

ILI9341 can operate with 1.65V ~ 3.3V I/O interface voltage and an incorporated voltage follower circuit to generate voltage levels for driving an LCD. ILI9341 supports full color, 8-color display mode, and sleep mode for precise power control by software and these features make the ILI9341 an ideal LCD driver for medium or small size portable products such as digital cellular phones, smartphone, MP3, and PMP where long battery life is a major concern.

Features:

• 2.2-inch color screen, support 65K color display, display rich colors
• 320X240 resolution, clear display
• Using the SPI serial bus, it only takes a few IOs to illuminate the display
• Easy to expand the experiment with SD card slot
• Provide a rich sample program
• Military-grade process standards, long-term stable work
• Provide underlying driver technical support

Specifications:

• Display Color: RGB 65K color
• Screen Size : 2.2(inch)
• Type: TFT
• Driver IC: ILI9341
• Resolution: 320*240 (Pixel)
• Module Interface: 4-wire SPI interface
• Output: 720 source outputs : 320 gate outputs: Common electrode output (VCOM)
• Display mode: Full color mode (Idle mode OFF): 262K-color : Reduced color mode (Idle mode ON): 8-color
• Active Area (AA area): 33.84×45.12(mm)
• Module PCB Size: 40.10×67.20(mm)
• Operating Temperature: -20℃~60℃
• VCC power voltage: 3.3V~5V
• Logic IO port voltage: 3.3V(TTL)
• Rough Weight(Package containing): 22(g)

Package Includes:

• 1 x 2.2 inch 240×320 LCD color screen TFT SPI serial interface module compatible with 5110 without touch
