1 Channel 5V Relay Module without Optocoupler

Switches and Relays

1 Channel 5V Relay Module without Optocoupler

star star star star star_half

40 rating

Just for you!

SKU: Anil515-2

MRP: Rs. 76.70

Rs. 46.00 (Incl. Tax)

Save Rs. 30.70 (40% off)

Rs. 41.40 / pack of 1 = Rs. 41.40 per piece

Pay later available

on orders above ₹300

View options

Quantity

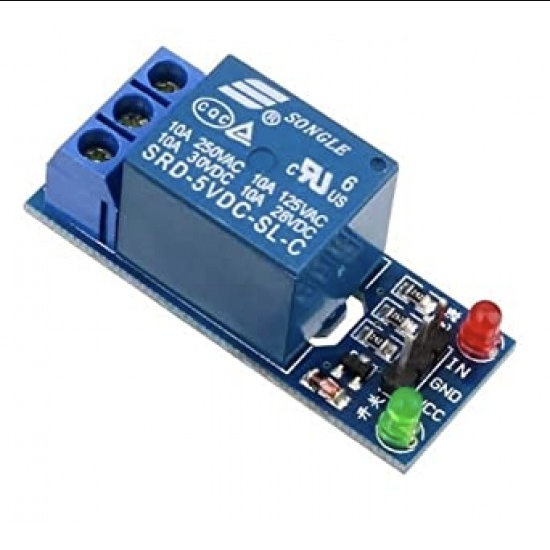

1-Channel 5V Relay Module for Arduino

This is a 1-Channel 5V Relay Module for Arduino, be able to control various appliances, and other equipment with large current. It can be controlled directly by Micro-controller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).

Features:

5V 1-Channel Relay interface board, and each one needs 15-20mA Driver Current
Standard interface that can be controlled directly by microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic
Equipped with high-current relay, AC250V 10A ; DC30V 10A
Indication LEDs for Relay output status
Equipped with screw holes for easy installation
5V 1-Channel Relay interface board, and each one needs 15-20mA Driver Current.
Equipped with high-current relay, AC250V 10A ; DC30V 10A.
Standard interface that can be controlled directly by microcontroller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).
Indication LED s for Relay output status.

Specifications:

Operating Voltage(VDC)	5
Max. Current(mA)	20
Channel	1
Current Capacity at AC250V	10A
Current Capacity at DC30V	10A
Length (mm)	53
Width (mm)	28
Height (mm)	19
Weight (gm)	18
