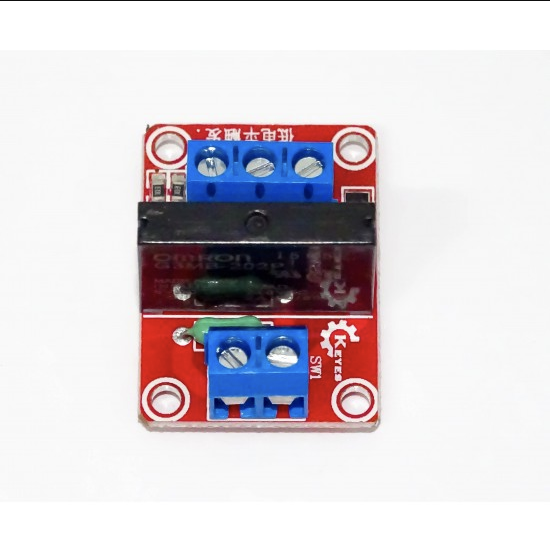

5V 1-Channel SSR Solid State Relay Module 240V 2A Output with Resistive Fuse

This 5V 1-Channel SSR Solid State Relay Module 240V 2A Output with Resistive Fuse is based on the Omron G3MB SSR relay which can control up to 2A at 240VAC. This is a 1 Channel SSR relay module which has 3 separate terminals, NO (Normal Open), COM (Common), NC (Normal Closed).

When the input logic voltage is applied to the coil, the NC will disconnect from the COM breaking the conductivity between the two. At the same time, the NO will connect with the COM allowing conductivity between them. Depending on your wiring this will turn on or off the connected load.

Input parts :

• DC+: connect power positive
• DC-: connect power negative
• CH1: relay module signal trigger point (Effective low-level trigger)

Note: Power must be DC voltage and need to be consistent with the voltage relay.

Features :

• Has been assembled, and the electrical test passed.
• It can be controlled directly by Microcontroller
• Input control signal voltage:
• 0-2.5V status low level, relay OFF
• 3-5V status high level, relay ON

Specifications:

Package Includes :

1 x 5V 1 Channel SSR G3MB-202P Solid State Relay Module 240V 2A Output
