12V 16-Channel OptoCoupler Relay Board Module LM2576 Power Supply

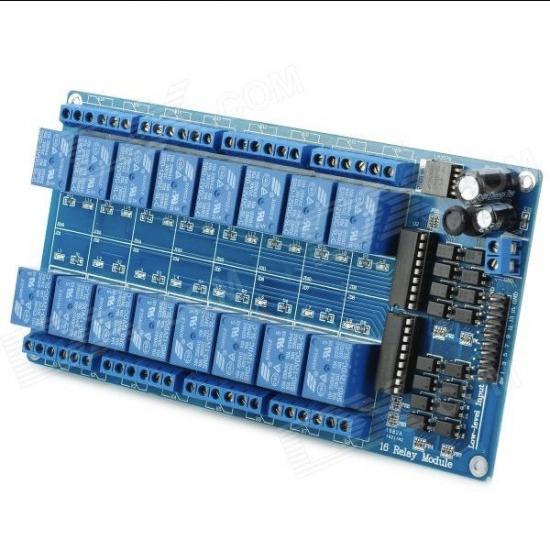

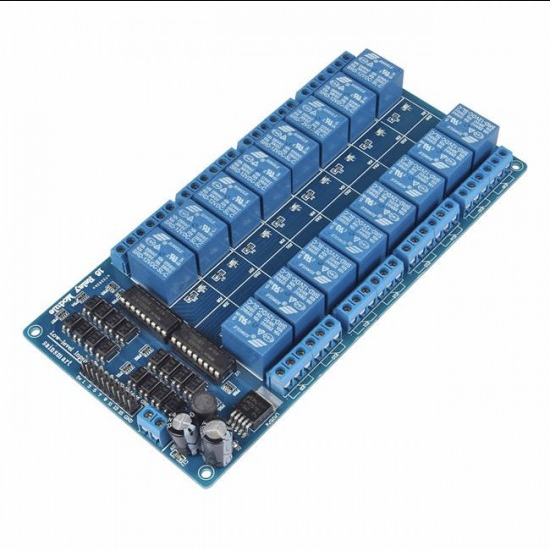

This is an isolated 12V 16-Channel Optocoupler Relay Board Module LM2576 Power Supply. The output rating for each relay is 230 volts 10 Ampere or 10 ampere at 30 volt DC. Since each relay is provided with independent common terminal along with Normally Open (NO) and Normally Closed (NC) pins it is very easy to use.Each trigger pin is isolated from the relay using a opto-coupler thus making sure your circuit is save no matter what. 16 LED indicators are provided to display the individual Relay Status. The relays can be controlled directly by a wide range of microcontrollers such as Arduino , 8051, AVR, PIC, PLC,DSP, ARM, ARM, MSP430, TTL logic circuits, etc.

Features

• 12V relay with AC contact capacity of 10A 250V and optocoupler protection.
• Onboard power supply module does not need an external power supply. I / O port driver is active low.
• The module can be used as a microcontroller development board module and also as appliance control, PLC extended output.
• It is using the industry’s top -quality isolation optocouplers, strong anti-jamming ability, stable performance.
• The 1-16 road can be any full on/off or any road.
• Each relay common terminal “COM” are independent, user-friendly access to different signals, each relay are normally closed and normally open with the port.
• Each relay is equipped with motion lights.
• All interfaces can be directly connected through the terminal leads, very convenient.

Specifications:

Instructions

• The power supply should meet the scope of use, DC 5V.
• The power supply cannot be reversed.
• The product uses LM2596S step-down chip with slight heat, which is a normal phenomenon. The relay has normal heating phenomenon for a long time, which is a normal phenomenon.
• The load power should have a certain margin for the relay load. Avoid high power (about 2000W) and work for a long time, which will have a certain impact on product life.

Applications:

• Electromagnetic relays are employed for the protection of various ac and dc equipments.
• The over/under current and voltage protection of various ac and dc equipments.
• For differential protection.
• Device switching.
• Multiple DIY projects.

Package Includes

• 1 x 16-Channel 12V Relay Module Board W/ Power LM2576 / Optocoupler Protection
