A2212 1000kV BLDC Brushless Motor + SimonK 30A ESC + Propeller Set

Planning for a multirotor or a UAV, you might be stumbling while choosing the right components to power your unmanned aerial vehicle. But here we have the solution in this pack of A2212 1000 / 1400 / 1800 / 2200 KV Brushless Motor + SimonK 30A ESC + 1045 Propeller Set. This is good to go pack at a price every RC Hobbist can afford.

At techtonics.in, customer's satisfaction is our happiness and to get that smile, our team had imported these motors from the variety of Chinese manufacturers and tested them for their abilities.

We have given this combo set for beginners to select the motors out of 1000kV / 1400kV / 1800kV / 2200kV and make your own drone fly. This is best affordable kit for beginners and Quadcopters / Drone enthusiast.

If you are new in this RC Hobby then this is your absolute investment to gain basic knowledge in this area. These Out-runner type A2212/10T/13T 1000KV / 1400KV / 1800 KV / 2200 KV BLDC motors are equipped with the solid metal case which makes them reliable and durable. This A2212/10T or 13T Motor comes with the pre-soldered good quality connector for fast and direct connection between ESC and the motor. Suitable Propeller size of 1045, 9045 and 8045 are given as options in this kit.

The electronic speed controller SimonK 30A provides faster and better motor speed control giving better flight performance. This SimonK 30A ESC can work with 2S–3S LiPO Battery and supply a maximum of 30A of current to the motor. It is equipped with onboard BEC which provides regulated 5V(2A max draw) to power the flight controller and other onboard modules of your multirotor.

This particular ESC is recommended with the A2212 brushless motor of 1000kv, 1400kv, 1800kv or 2200kv by techtonics.in.

1045(10x4.5), 9045(9x4.5) and 8045(8x4.5) SF Props included fits perfectly in this pack. These props are light in weight and they are high strength propellers. These props help to improve the air-powered efficiency and aerofoil stability.

This pack containing an A2212 1000KV BLDC and SimonK 30A ESC along with a set of 1045 propeller will give you moderate torque characteristics with the good range of flight speed.

This motor is bi-directional which means it can rotate in CW or CCW direction by swapping the polarity of input supply.

Applications:

• Multirotors
• RC Airplanes
• Hovercraft

Features :

• The design of the A2212/10T/13T is capable of withstanding competitional conditions.
• Lightweight design makes them suitable for wide range of Multirotor Frames.
• Comes in the compact sizes.
• Offers great performance and value for money.
• This particular combination of motor and ESC with props gives you smooth throttle response for best RC experience.
• Suitable for airplane, aircraft, quadcopter.
• ESC used has an On-Board BEC.
• Faster and Better speed control.

Specification :

• Model: A2212 10T/13T
• Motor KV (RPM/V): 1000 / 1400 / 1800 / 2200
• Maximum Efficiency: 80%
• Current Capacity: 12A/60S
• No-Load Current(A): 0.5A @10V
• Max. Efficiency Current: 4-10A
• Maximum Watts(W): 150
• Internal Resistance(mOhm): 90
• Poles: 14
• Shaft Diameter (mm): 3.17
• LiPO Batteries: 2S-3S
• Length (mm): 27.5
• Width (mm): 27
• Weight (gm): 48
• SimonK 30A ESC
• Constant Current: 30A
• Maximum Current: 40A @10S
• BEC: 3A
• LiPO Batteries: 2S-3S
• 1045 (10x4.5), 9045(9x4.5) or 8045(8x4.5) SF Props
• Weight: 14 gm.
• Shaft diameter: 6 mm.

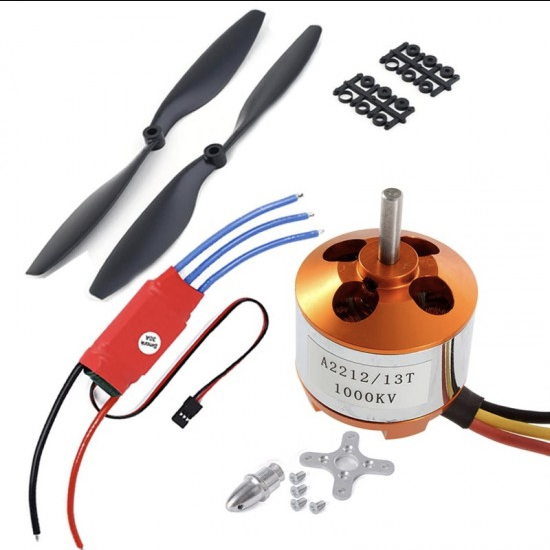

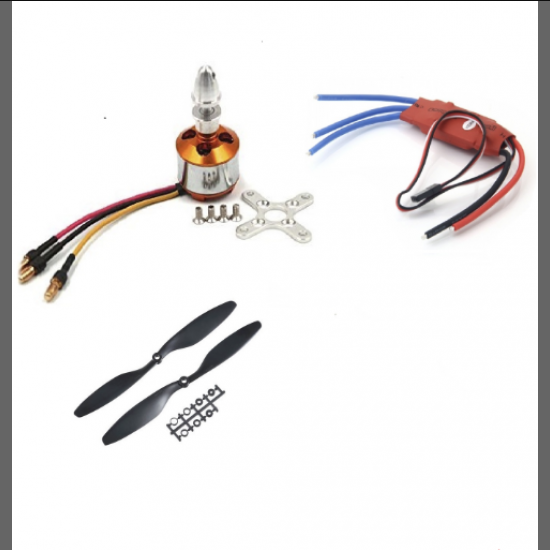

Package Includes:

• 1 x A2212 BLDC Brushless DC Motor with Soldered Connector
• 1 x Prop Adapter
• A Motor Holder (X-type) and a set of screws
• 1 x SimonK 30A BLDC ESC
• 1 x Propeller (1CW+1CCW)- 1pair
