A2212 1800KV BLDC Brushless DC Motor
A2212 1800KV BLDC Brushless DC Motor
A2212 1800KV BLDC Brushless DC Motor is a Brushless DC Motor specifically made to power Quadcopters and Multirotors. It provides high performance, super power and brilliant efficiency. These motors are perfect for medium size quadcopters with 8 inch to 10 inch propellers. Use this to build powerful and efficient quadcopters.
The A2212 includes an integrated prop adaptor for use with many different style props featuring a 4mm shaft and adaptor sleeves for 5mm/6mm props. It also has an in-built aluminum mount for quick and easy installation on your quadcopter frame. Perfect with our F450 quadcopter frame. Our 30A ESCs can be used to drive the motor.
Note: “This motor is bi-directional which means it can rotate in CW or CCW direction by swapping the polarity of input supply.”
Features :
- The steel design is capable of withstanding competitional conditions.
- Lightweight design makes them suitable for a wide range of Quadcopter and Hexacopter Frames.
- Compact size.
- Offers great performance and value for money.
- Smooth throttle response for best RC experience.
Specifications:
|
Model |
A2212 |
|
Motor KV (RPM/V) |
1800 |
|
LiPo Batteries |
2S-3S |
|
Shaft Diameter (mm) |
3.17 |
|
Maximum Efficiency |
80% |
|
Current Handling Capacity |
12A/60S |
|
No-Load Current |
0.5A @10V |
|
Max. Efficiency Current |
4-10A (>75%) |
|
Length (mm) |
30 |
|
Width (mm) |
27.5 |
|
Weight (gm) |
48 |
|
Minimum ESC Specification |
18A (30A Suggested) |
|
Thrust @ 3S with 1045 propeller |
1000 gms approx |
|
Thrust @ 3S with 9045 propeller |
650 gms approx |
|
Thrust @ 3S with 0845 propeller |
550 gms approx |
Applications :
- Drones
- Quadcopters
- Multirotors
- RC Airplanes
- UAV

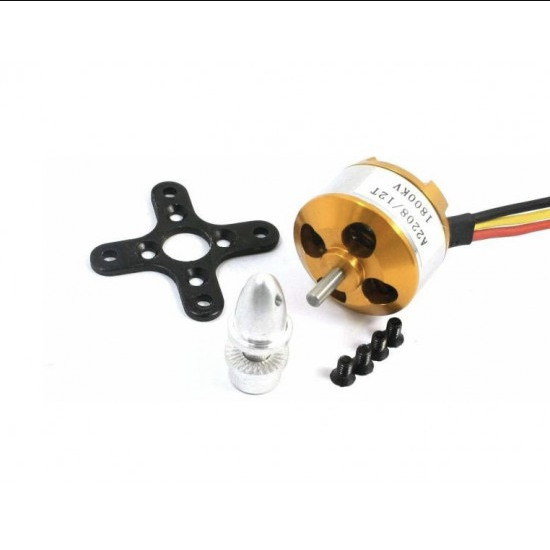

Package Includes :
- 1 x A2212 1800Kv Brushless Motor for Drone
- 1 x Prop Adapter
- A Motor Holder (X-type) and set of screws
