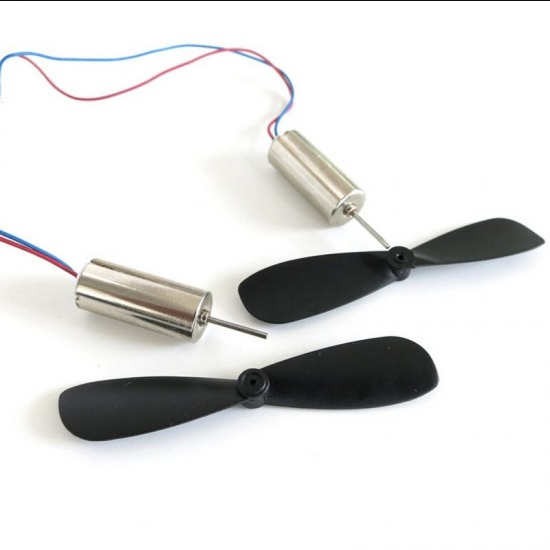

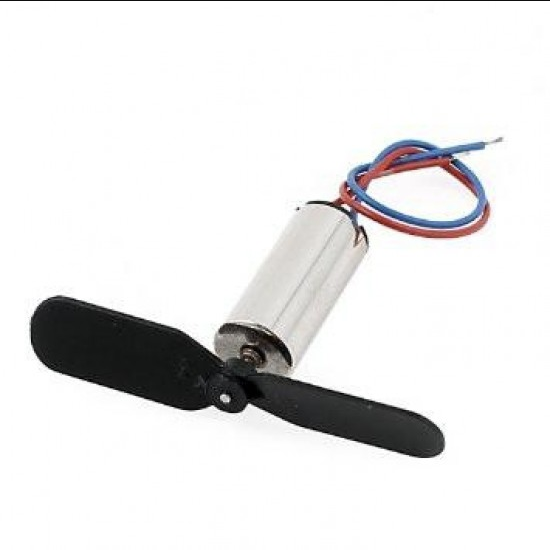

3.7V 7x16mm Magnetic Micro Coreless Motor with Propeller 48000 RPM (Set of 4)
memory Technical Parameters & Datasheet Summary
SKU: Anil741If you are new in multirotor/drone hobby area and want to try out some basic multirotor designs so as to enhance your basic knowledge about multirotors!!! Don’t wait and get this combo set of 3.7V 7x16mm 48000 RPM Magnetic Micro Coreless DC Motor with Propeller for Micro Quadcopters (4 Pcs).
3.7V 48000 RPM Magnetic Micro Coreless DC Motor with Propeller is lightweight brushed DC coreless motors are the best choice for your small drone, offering you an excellent affordable price when compared with costly BLDC motors. They are rated at 48000 RPM which is more than needed to lift and push your drone to the target. These are less noisy with low resistance. The only drawback of using coreless is the amount of torque they provide, as they are High Speed and Low Torque motors.
The 55mm propeller comes with the smooth surface which can greatly reduce the wind resistance during the flight. Also, the propellers are made of high-tenacity material and thus can sustain crashes. Therefore, this propeller with Coreless motors is a perfect combination for your multirotor. Only, Plug-n-Play.
Features :
- Coreless motor is High Speed and Low Torque motor.
- Less noisy operation.
- Offers low resistance.
- They are equipped with high-quality magnets.
- This coreless motor supports 1S battery.
Specifications:
| Rated RPM | 48000 |
| Maximum RPM | 50000 |
| Rated Voltage(V) | 3.7 |
| Current(A) | 0.1 |
| Operating Temperature (°C) | -10 to 50 |
| Shaft Diameter x Length (mm) | 0.8 x 5 |
| Motor Color | Silver |
| Motor Diameter(mm) | 7 |
| Motor Length(mm) | 16 |
| Motor Material | Metal |
| Prop. Length(mm) | 55 |
| Prop. Material | Plastic |
| Cable Length | 5 CM |
Applications
- Suitable for airplane, quadcopter, helicopter projects
Package Includes :
- 4 x 3.7V 48000 RPM Magnetic Micro Coreless Motor
- 4 x 55 mm Propeller
