Power HD 1501MG High-Torque Metal Gears Servo 60g/ 17kg-cm
Power HD 1501MG High-Torque Metal Gears Servo 60g/ 17kg-cm

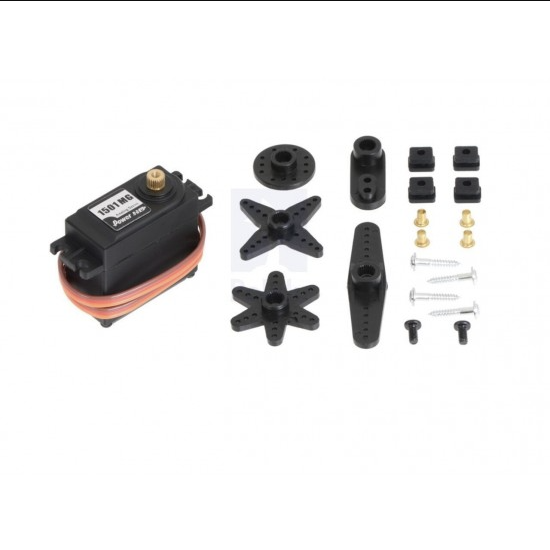

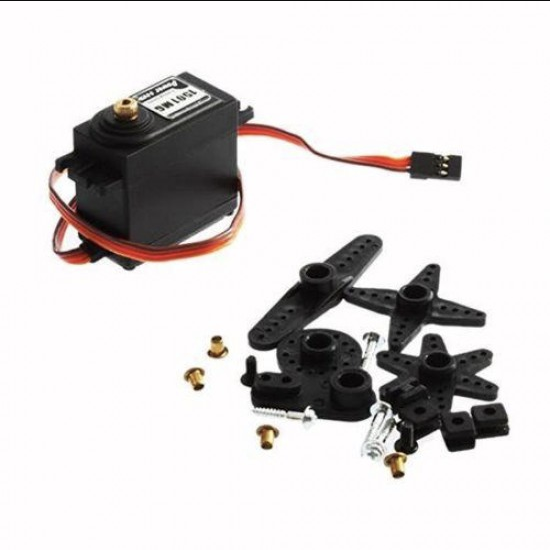

The 1501MG is a metal-geared analog servo from Power HD that delivers extra-high torque normally associated with much more expensive or larger servos. Servo horns and associated hardware are included.
The HD-1501MG is a powerful standard-size servo that features metal gears and two ball bearings and can deliver a tremendous amount of torque for a servo this fast (if you need even more torque than this, check out the larger 1235MG giant servo). The 1501MG works with standard RC servo pulses, providing a running angle of approximately 165° over a servo pulse range of 800 µs to 2200 µs, and it has a 10″ (25 cm) cable that is terminated with a standard JR-style connector, which is Futaba-compatible.
Specifications:
|
Model |
Power HD 1501MG |
|
Operating Voltage |
4.8-6.0 Volts |
|
Operating Speed (4.8V) |
0.16 sec / 60 degree at no load |
|
Operating Speed (6.0V) |
0.14sec / 60 degree at no load |
|
Stall Torque (4.8V) |
15.5 kg-cm |
|
Stall Torque (6.0V) |
17.0 kg-cm |
|
Bearing Type |
Ball Bearing x 2 |
|
Gear Type |
Copper |
|
Connector |
"J" type |
|
Rotation Angle |
180 Degree |
|
Dimensions |
40.7 x 20.5 x 39.5 mm |
|
Weight |
63g |
Package Includes:
- 1 x Power HD 1501MG High-Torque Metal Gears Servo
