TowerPro MG996R High Torque Servo Motor - 360 Degree, 11 kgcm

Servo Motors

TowerPro MG996R High Torque Servo Motor - 360 Degree, 11 kgcm

star star star star star

71 rating

Just for you!

SKU: -2

MRP: Rs. 399.00

Rs. 299.00 (Incl. Tax)

Save Rs. 100.00 (25% off)

Rs. 269.10 / pack of 1 = Rs. 269.10 per piece

Pay later available

on orders above ₹300

View options

Quantity

TowerPro MG996R Metal Gear Servo Motor - 360 Degree, 11 kgcm has the ability to rotate continuously in 360 degrees. It makes this servo motor perfect for robotics or even the rotation of camera sliders!

MG996r is a high quality, high torque for all your robotics and RC needs. This servo is specially made for use in RC airplanes, fixed-wing airplanes, helicopters, robotics, mini robot, mini manipulator, etc. Libraries available make is easy to use this servo motor in you project. This motor generates a massive 11kg.cm torque. We have carefully selected this servo motor for the best quality and performance among the numerous similar motors available in the market.

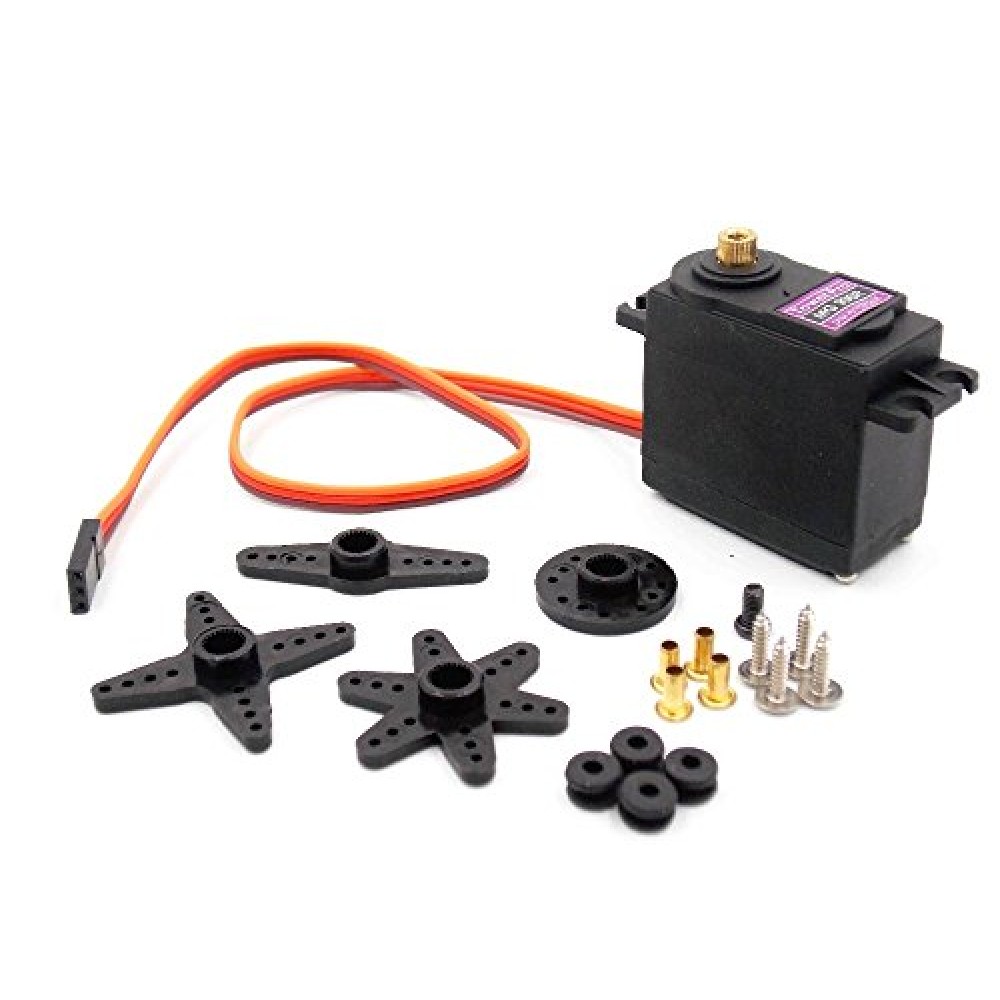

It comes with a 3-pin power ,control cable and mounting hardware.

Features:

Gear Type: Metal gear
Servo Plug: JR (Fits JR and Futaba)
Servo arms & screws included, and fit with Futaba servo arm
It’s universal “S” type connector that fits most receivers, including Futaba, Hitec ,GWS, Corona, Berg, Spektrum.
CE & RoHS approved
stronger and lighter than copper.

Specifications:

Operating Voltage	4.8 ~ 6.6v
Rotation	0- 360 Degree
Stall Torque @4.8V	9.40 kg-cm
Stall Torque @6.6V	11 kg-cm
Operating Speed @4.8V	0.19sec/60°
Operating Speed @6.6V	0.15sec/60°
Dead Bandwidth	1uS
Gear Type	Metal
No. of teeth	25
Length (mm)	53.6
Width (mm)	20.0
Height (mm)	47.6
Weight (gm)	55

Wiring Configuration:

Wire Number	Wire Colour	Description
1	Brown	Ground wire connected to the ground of system
2	Red	Powers the motor typically +5V is used
3	Orange	PWM signal is given in through this wire to drive the motor
