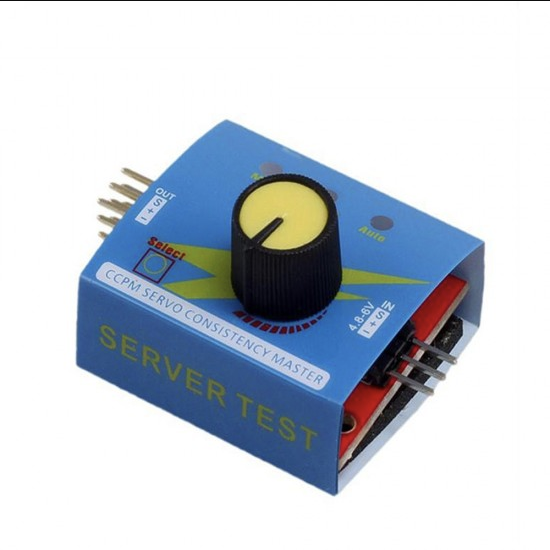

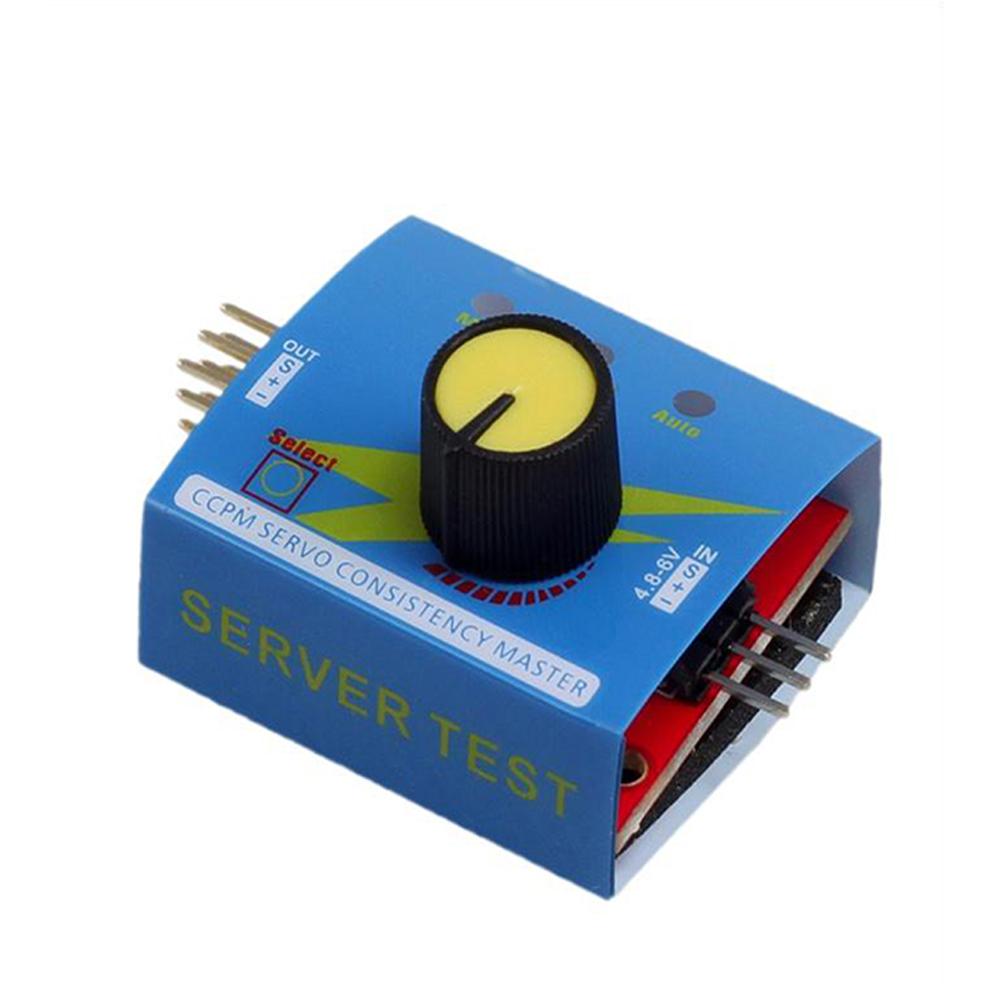

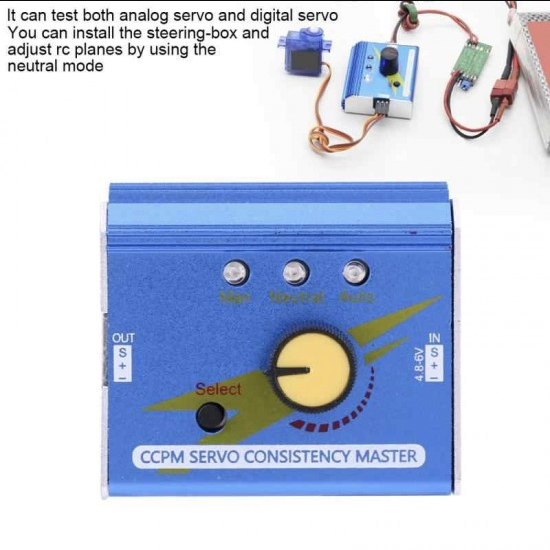

Digital Multi Servo Tester ESC RC Consistency CCPM Master Speed Control

Servo Motors

Digital Multi Servo Tester ESC RC Consistency CCPM Master Speed Control

star star star star star

110 rating

Just for you!

SKU: Anil262-2

MRP: Rs. 199.00

Rs. 129.00 (Incl. Tax)

Save Rs. 70.00 (35% off)

Rs. 116.10 / pack of 1 = Rs. 116.10 per piece

Pay later available

on orders above ₹300

View options

Quantity

Digital Multi Servo Tester ESC RC Consistency CCPM Master Speed Control can be used as a signal generator for electric speed controller (ESC) and servo motors, then you can test your motor system without using a transmitter and receiver.

It can connect 1-3 servos simultaneous and test such as 1-3 servos consistency and so on.
It can also connect 1-3 ESC to test and compare their reaction time respectively.
It can connect 3 servos of the CCPM helicopters and select servos.
It can also connect the servo of airplanes install the steering-box and adjust planes by using such as the neutral mode and so on.

There are 3 modes to check servos or ESC:

Manual mode: turn the knob with different speed, check the reaction time
Neutral mode: make the servo go back to the neutral point.
Automatic "window wiper" mode: make the servo swing like a window wipers in the biggest angle.

Specification:

Type	CCPM Servo Tester, ESC or Servo tester
Output	15mA (5.0)
Operating Voltage(VDC)	4.8 to 6
Output Signal	1.5ms±0.5ms
Color	Blue
Dimensions in mm (LxWxH)	48 x 42 x 17 (Approx.)
Knob Diameter(mm)	12
Weight (gm)	8
