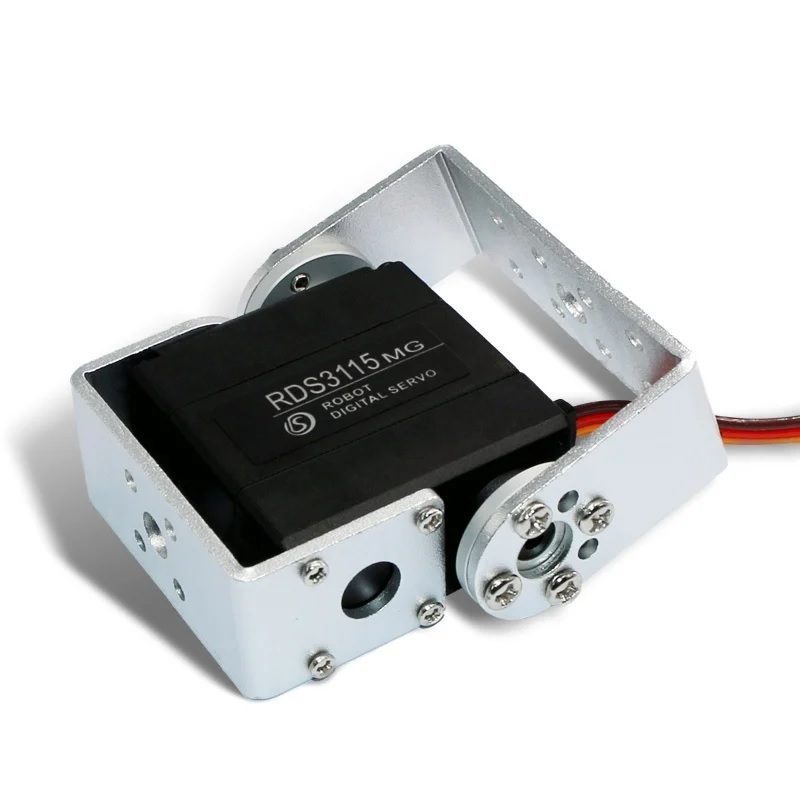

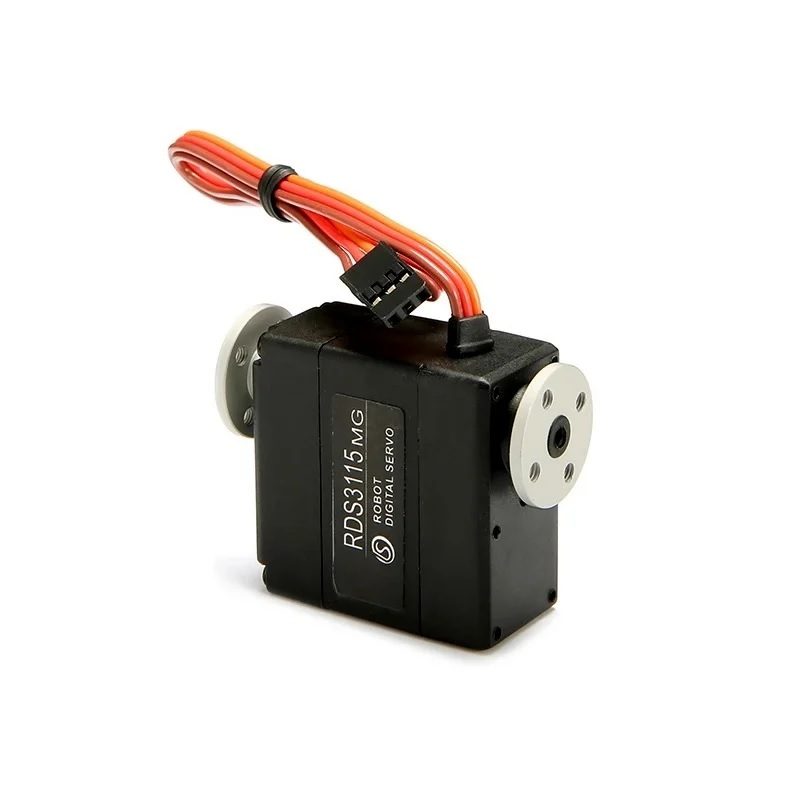

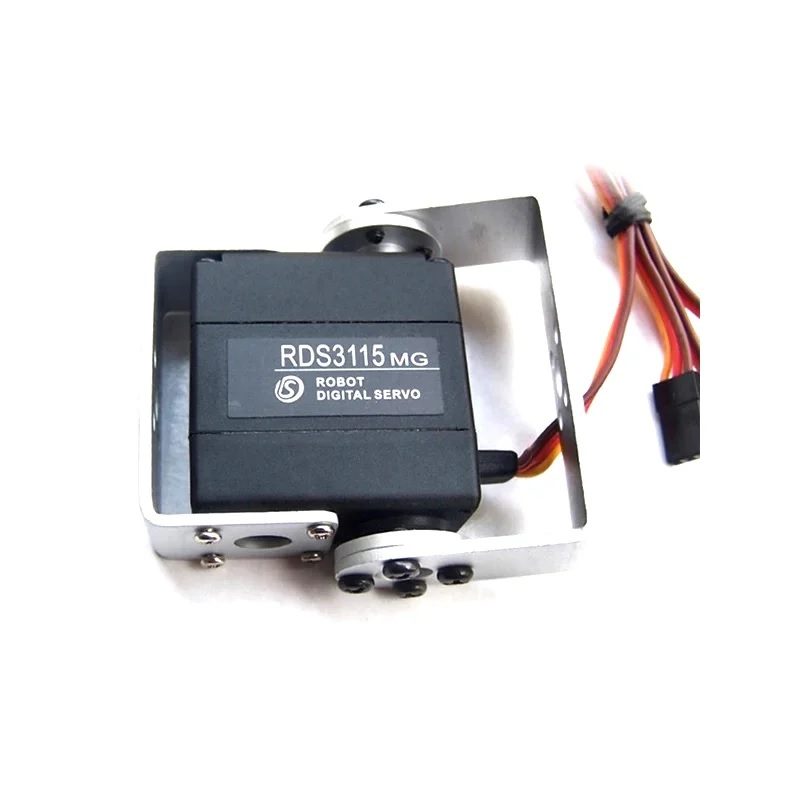

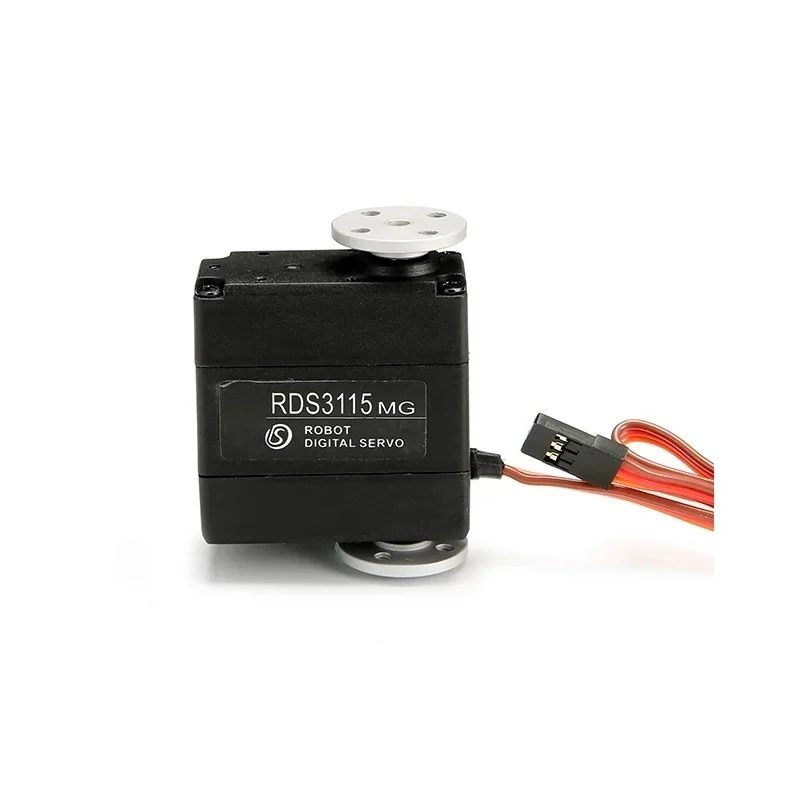

RDS3115 MG Digital Metal Gear Dual Shaft 15kg 180 Degree Servo Motor with Holders

This RDS3115 MG Digital Metal Gear Dual Shaft 15kg 180 Degree Servo Motor with Holders is specially made for robotics with custom design and dual shaft. Also designed to work on  DC 4.8-7.2V  li-Ion battery. This servo is built with metal gears inside which provides the high torque suitable for load up to  15 kg.

Features:

• High-performance standard digital servo
• Used for RC robot
• Low operating noise, good linearity
• Servo control with MCU
• Durable Metal Gear
• Bottom Side Axial Mount Hole

Specifications:

• Brand: DS servo
• Rotational Degree: 180º
• Gear Type: Metal
• Operating Temperature (°C): -35 to 60
• Stall Torque (Kg-Cm): 13.5 at (4.8V), 15 at (6.0V), 17 at (7.2V)
• Servo Plug: JR
• Cable Length (cm): 30
• Operating Voltage (VDC): 4.8 ~ 7.2V
• Weight (gm): 62
• Motor Body Dimension (mm): 40X20X40.5

Package Includes:

• 1 x RDS3115 MG Digital Metal Gear Dual Shaft 15kg Servo Motor
• 1 x Long U Holder
• 1 x Short U Holder
• 1 x Screws and Other fitting accessories

Note: This Motor has Non-rotating shaft at another side (just to hook the holders)
