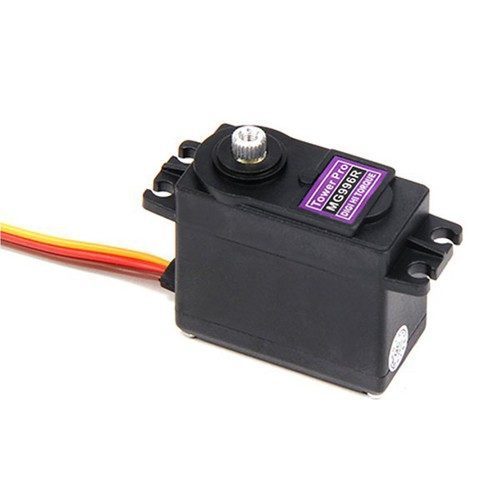

Tower Pro MG996R Digital Metal Gear High Torque Servo Motor 11 kgcm (180 Degree Rotation)
memory Technical Parameters & Datasheet Summary
SKU: ANIL1070This Tower Pro MG996R Digital Metal Gear High Torque Servo Motor 11 kgcm (180 Degree Rotation) has the ability to rotate continuously in 360 degrees. It makes this servo motor perfect for robotics or even the rotation of camera sliders!
MG996r is a high quality, high torque for all your robotics and RC needs. This servo is specially made for use in RC airplanes, fixed-wing airplanes, helicopters, robotics, mini robot, mini manipulator, etc. Libraries available make is easy to use this servo motor in you project. This motor generates a massive 11kg.cm torque. We have carefully selected this servo motor for the best quality and performance among the numerous similar motors available in the market.
It comes with a 3-pin power ,control cable and mounting hardware.
Features:
- Gear Type: Metal gear
- Servo Plug: JR (Fits JR and Futaba)
- Servo arms & screws included, and fit with Futaba servo arm
- It’s universal “S” type connector that fits most receivers, including Futaba, Hitec ,GWS, Corona, Berg, Spektrum.
- CE & RoHS approved
- stronger and lighter than copper.
Specifications:
- Operating Voltage: 4.8 ~ 6.6v
- Rotation : 0- 180 Degree
- Stall Torque @4.8V: 9.40 kg-cm
- Stall Torque @6.6V: 11 kg-cm
- Operating Speed @4.8V: 0.19sec/60°
- Operating Speed @6.6V: 0.15sec/60°
- Dead Bandwidth: 1uS
- Gear Type: Metal
- No. of teeth: 25

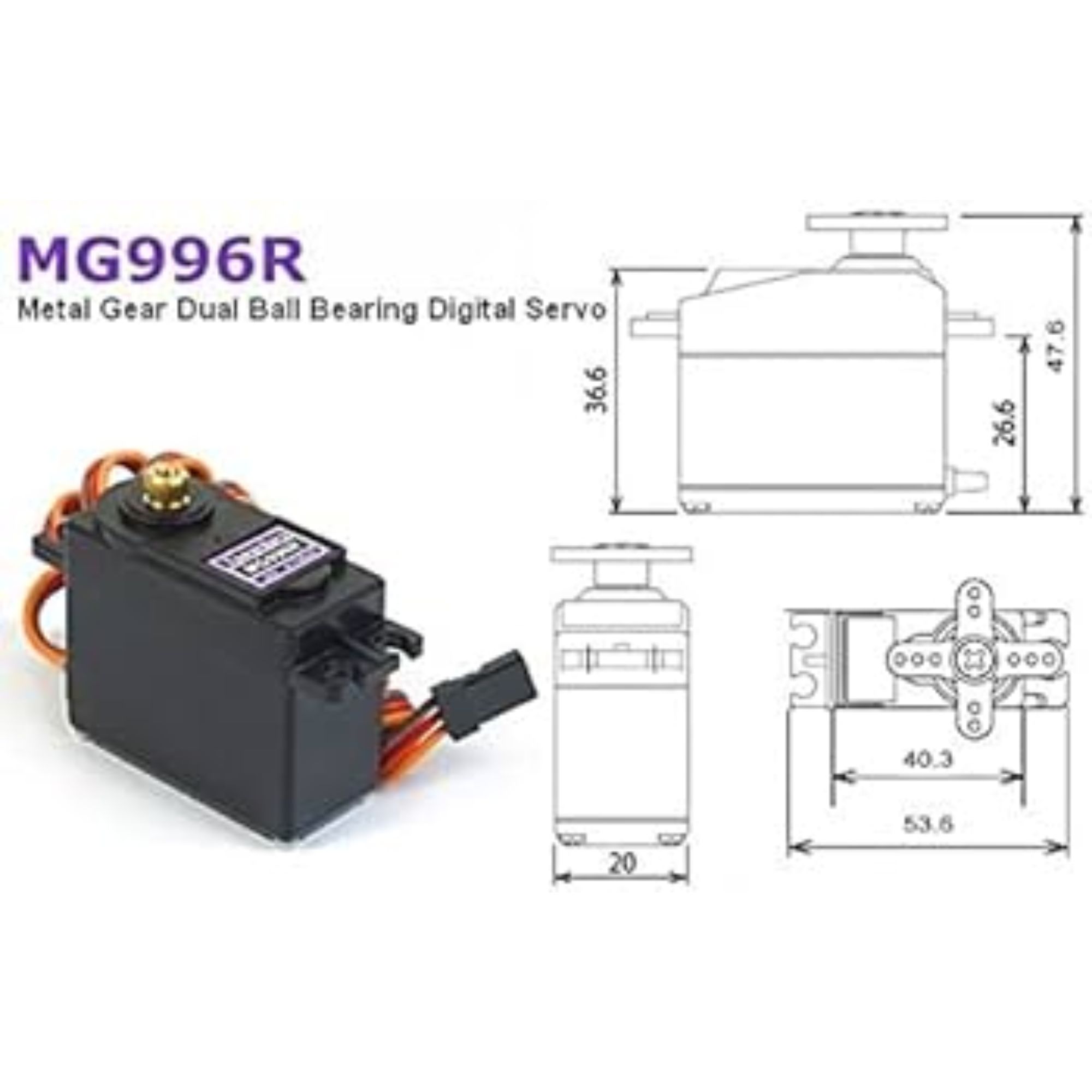

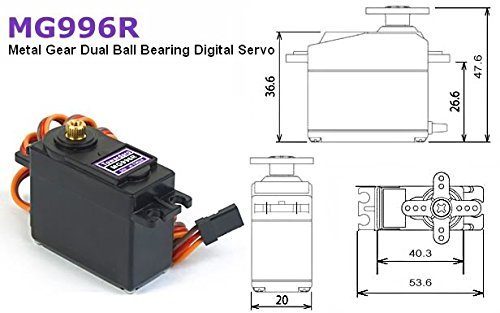

- Length (mm): 53.6
- Width (mm): 20
- Height (mm): 47.6
- Weight (gm): 55
Wiring Configuration:
- Brown: Ground wire connected to the ground of system
- Red: Powers the motor typically +5V is used
- Orange: PWM signal is given in through this wire to drive the motor
Package Includes:
- 1 x TowerPro MG996R Digital High Torque Servo Motor
