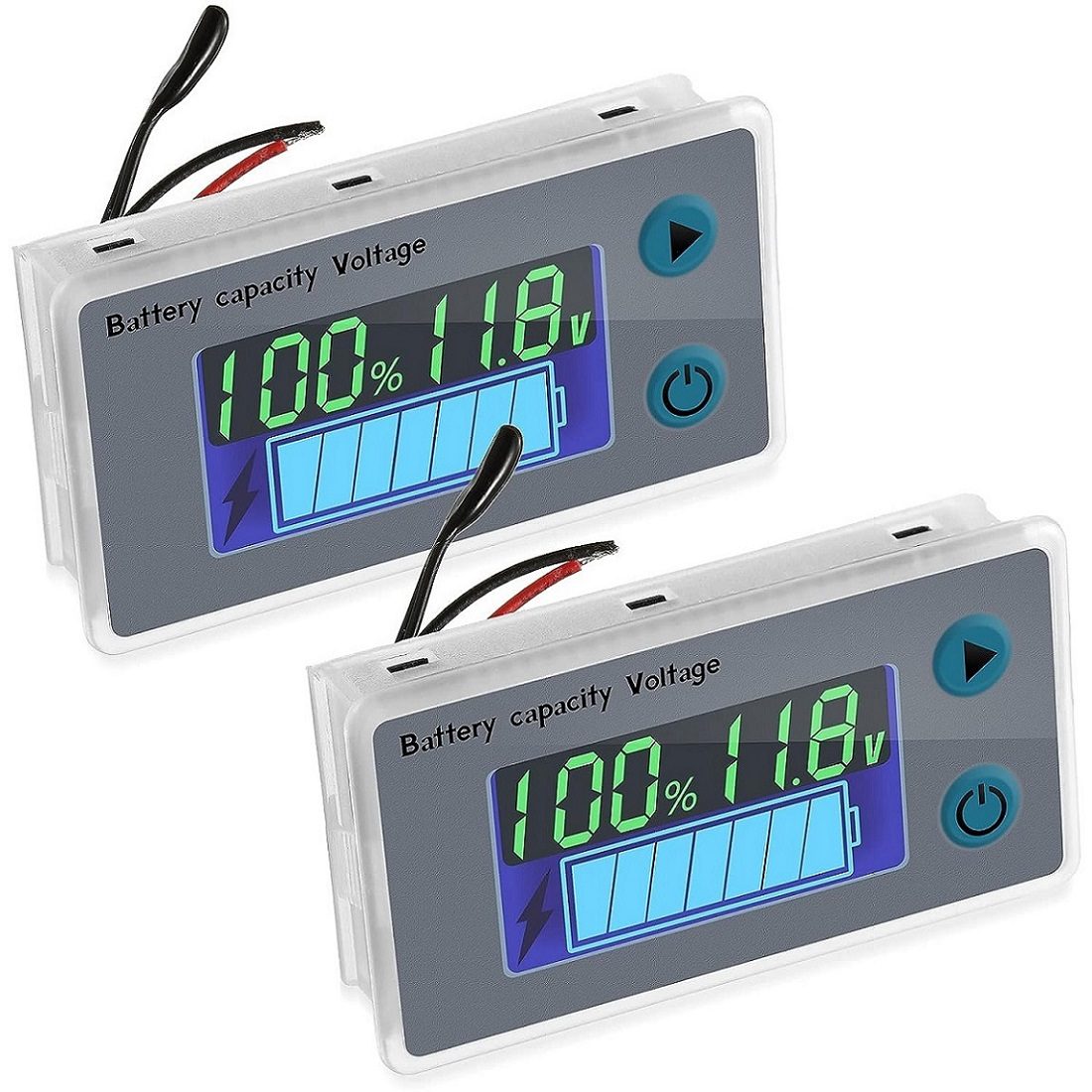

10-100V Universal LCD Car Battery Level Capacity Indicator with Temperature Monitor and Buzzer Alarm

10-100V Universal LCD Car Battery Level Capacity Indicator with Temperature Monitor and Buzzer Alarm is a Capacity/Temperature Monitor with working voltage of 10V – 100V. It is suitable for lead-acid, lithium battery, lithium iron phosphate, nickel-hydrogen, and other batteries.

This product is a general instrument, adopts an LCD color screen, can long-term display the battery, voltage, temperature (Selective assembly; sound-light alarm((Selective assembly) can be used in a variety of lighting conditions. The default parameters are suitable for lithium batteries, lead-acid batteries, lithium iron phosphate battery, Ni MH battery application field; through the development of programming, can be applied to any battery, simple wiring, convenient maintenance, and disassembly using a standard connector.

Features:

• The patented product adopted neutral packaging production, with a simple dustproof waterproof surface, with a full protection cover.
• The color liquid crystal material, clear display, display softly at night.

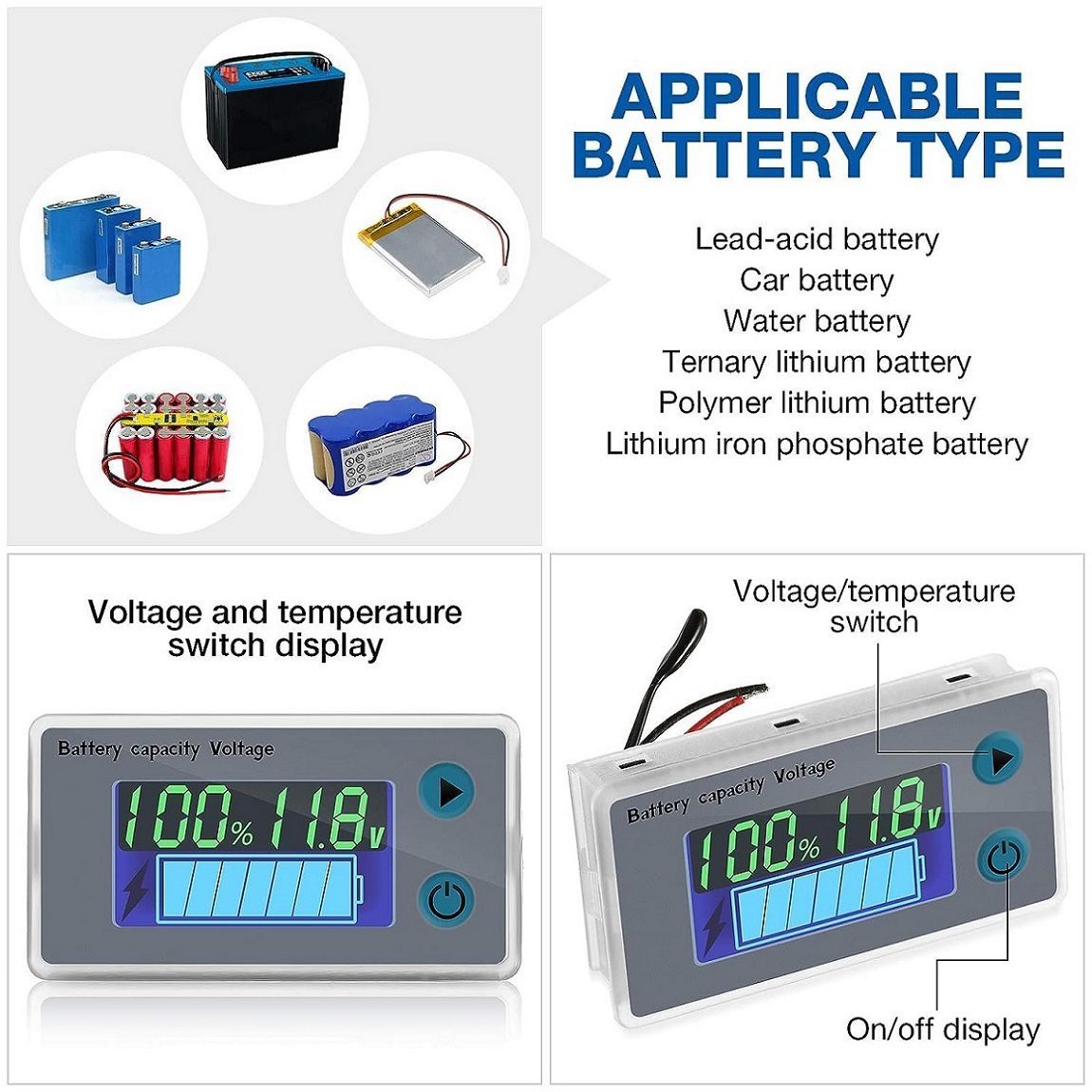

• To customize the type of battery, suitable for lead-acid, lithium-ion batteries, lithium iron phosphate, metal hydride battery, etc.
• To display the percentage of remaining battery power, voltage, temperature.
• The 10~100V wide input voltage, reverse protection.
• The product can go to sleep after 10 seconds.
• The red indicator flashes to alarm when it is low battery.
• The installation is simple, with a buckle, without screws.
• The buzzer alarm switch, alarm voltage setting (Selective assembly).
• The real-time detection of the battery temperature (Selective assembly).
• Open programming mode

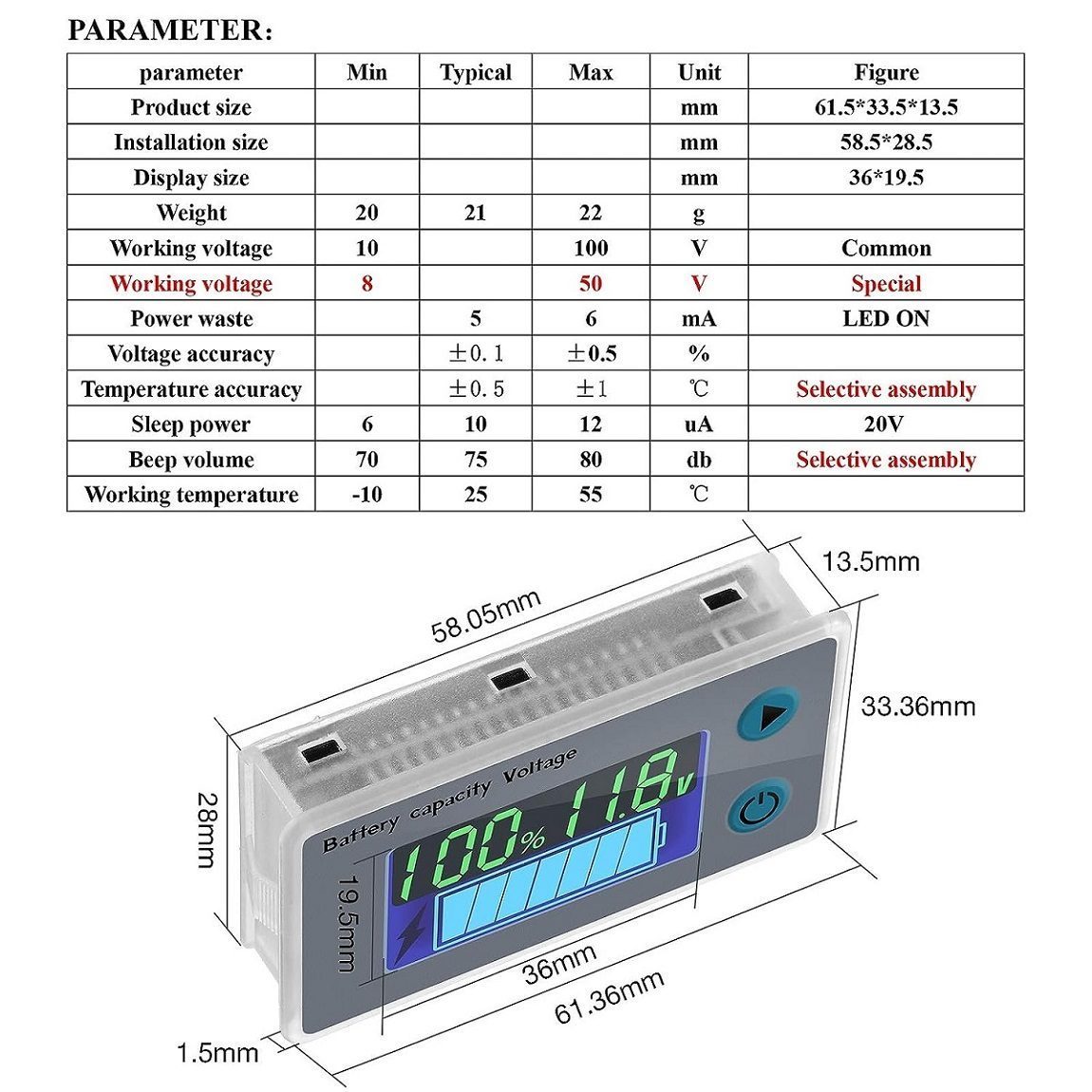

Specifications:

• Working voltage: : 10V Min; 100V Max
• Working consumption: : 5mA Typical; 6mA Max
• Voltage accuracy: ±0.1%Typical; ±0.5%
• Temperature accuracy: :±0.5°cTypical; ±1°c Max
• Sleep consumption: : 6uA Min; 10uA Typical; 12uA Max
• Buzzer voltage: : adjustable 11.5V~100V
• Buzzer volume: : 70db Min; 75db Typical; 80db Max
• Working temperature: ‎-10°c Min; 25°c Typical; 55°c Max
• Product size: : 61.5 x 33.5 x 13.5mm
• Installation size: : 58.5*28.5mm
• Display size: : 36 x 19.5mm

Package Includes:

• 1  x 10-100V Universal LCD Car Battery Level, Capacity, Temperature Indicator
